Ruijie Networks RG-ES05 Hardware Installation And Reference Manual page 9

RJ45 port status LED

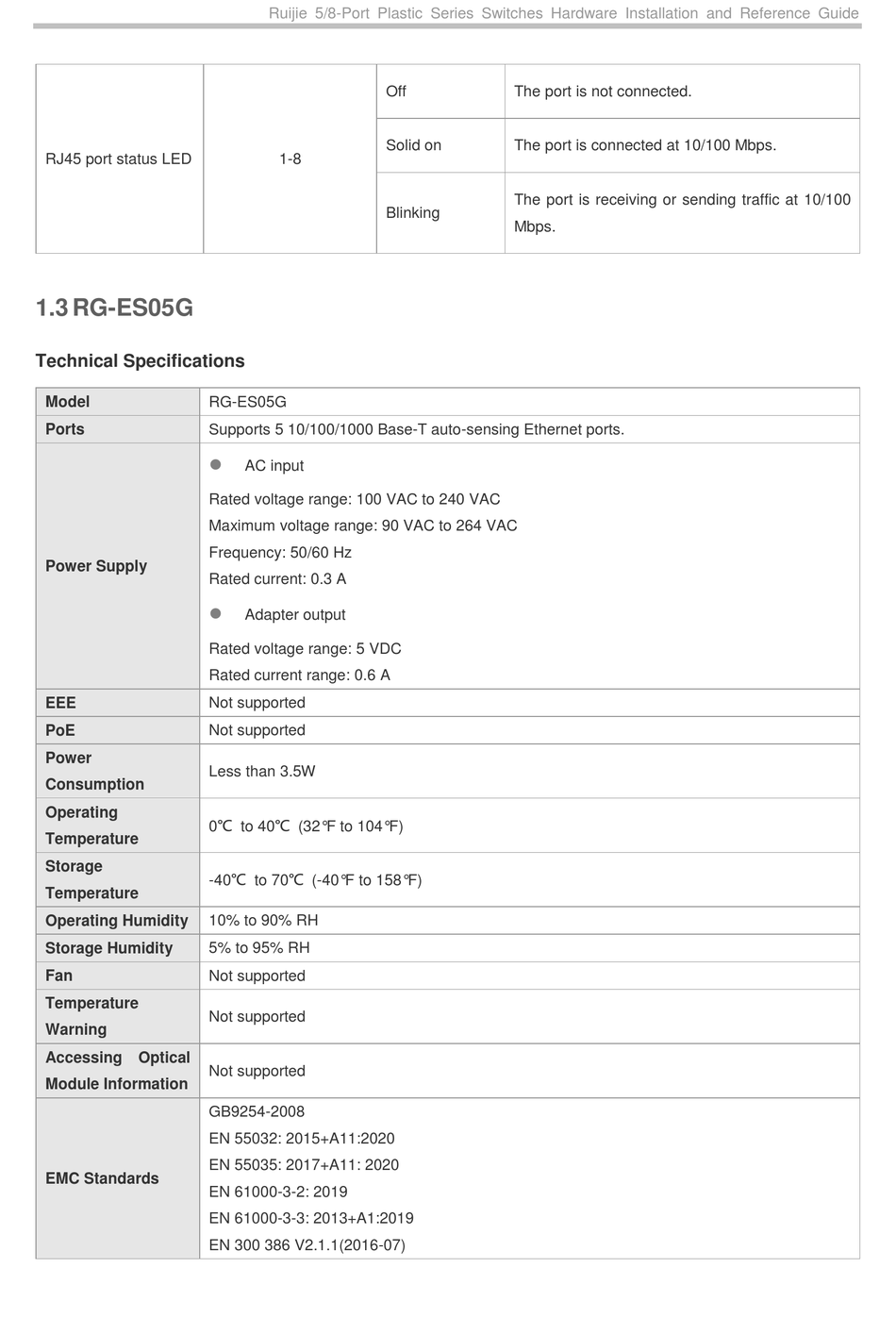

1.3 RG-ES05G
Technical Specifications
Model
Ports
Power Supply
EEE
PoE
Power
Consumption
Operating
Temperature
Storage
Temperature
Operating Humidity
Storage Humidity
Fan
Temperature
Warning
Accessing Optical
Module Information
EMC Standards
Ruijie 5/8-Port Plastic Series Switches Hardware Installation and Reference Guide
1-8
RG-ES05G
Supports 5 10/100/1000 Base-T auto-sensing Ethernet ports.

AC input
Rated voltage range: 100 VAC to 240 VAC
Maximum voltage range: 90 VAC to 264 VAC
Frequency: 50/60 Hz
Rated current: 0.3 A

Adapter output
Rated voltage range: 5 VDC
Rated current range: 0.6 A
Not supported
Not supported
Less than 3.5W
0℃ to 40℃ (32° F to 104° F)
-40℃ to 70℃ (-40° F to 158° F)
10% to 90% RH
5% to 95% RH
Not supported
Not supported
Not supported
GB9254-2008
EN 55032: 2015+A11:2020
EN 55035: 2017+A11: 2020
EN 61000-3-2: 2019
EN 61000-3-3: 2013+A1:2019
EN 300 386 V2.1.1(2016-07)
Off The port is not connected.
Solid on The port is connected at 10/100 Mbps.
The port is receiving or sending traffic at 10/100
Blinking
Mbps.
