Super A2SAP-L1 User's Manual
2.5 Front Control Panel
JF1 contains header pins for various buttons and indicators that are normally located on a
control panel at the front of the chassis. These connectors are designed specifically for use
with a custom chassis. Refer to the figure below for the descriptions of the front control panel
buttons and LED indicators.
JPWR1
JUSB1
JUSB2
SRW2
JMD1
LED1
A2SAP-L1
DESIGNED IN USA
JF1

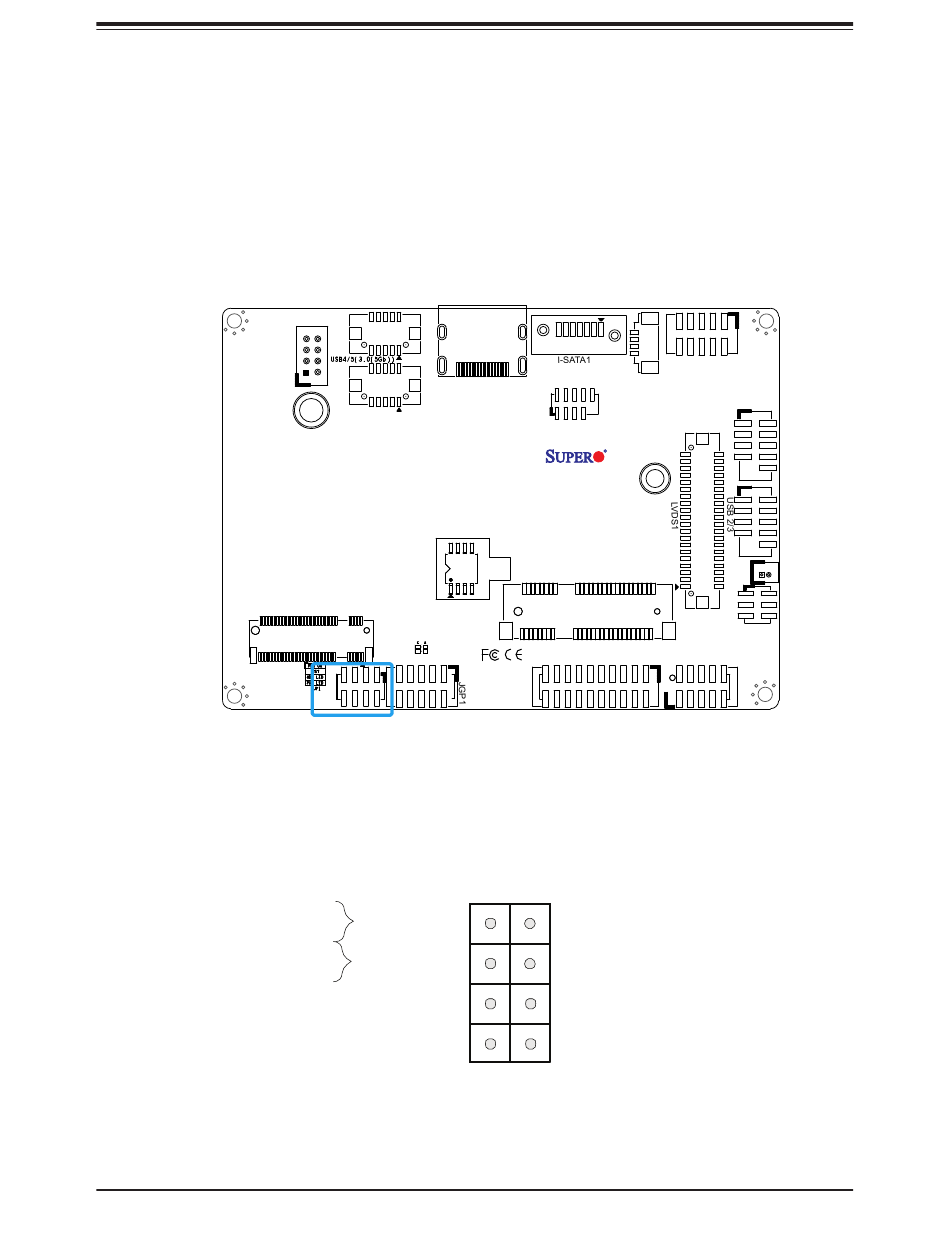

Figure 2-2. JF1 Header Pins
Power Button
PWR
Reset Button
Reset
3.3V
3.3V Stby
28
JLAN1LED1
JHDMI1
JLPC
SRW1
JMP1
JCOM1: COM1/COM2
REV:1.00
1
2
Ground
Ground
HDD LED
Power LED
7
8
JLAN1
USB 0/1
BT1
JLCDPWR1
J3: AUDIO FP
