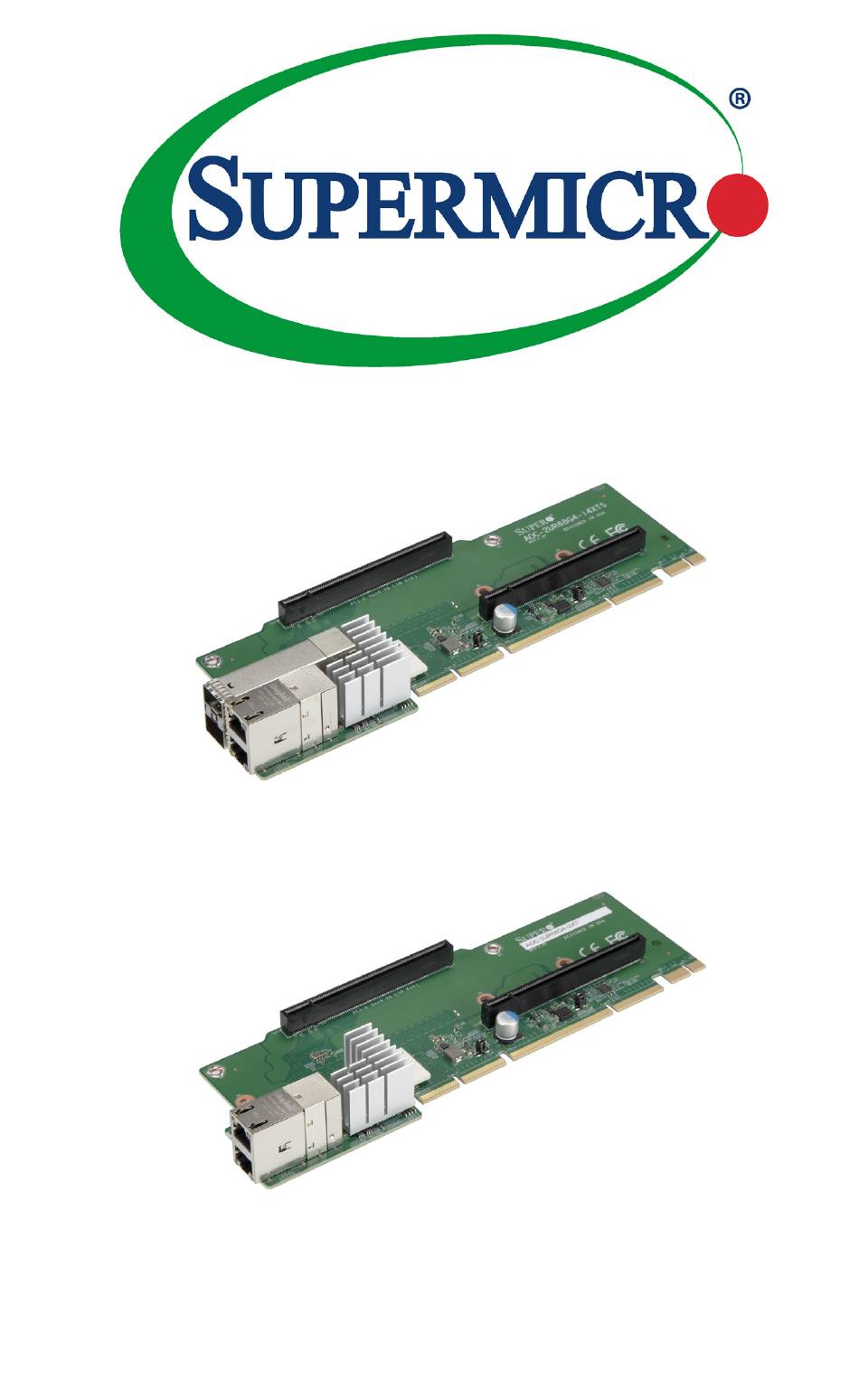

- Page 1 AOC-2UR68G4-i4XTS AOC-2UR68G4-i2XT User's Guide Revision 1.0...
- Page 2 Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 X710-TM4 and X710-AT2, along with three PCI-E 4.0 slots to provide ® the flexbility of configuring Supermicro Ultra systems. An Important Note to the User All images and layouts shown in this user's guide are based upon the latest PCB Revision available at the time of publishing.
- Page 4 Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide Conventions Used in the User's Guide Pay special attention to the following symbols for proper system installation and to prevent damage to the system or injury to yourself: Warning: Important information given to ensure proper system installation or to prevent damage to the components or injury to yourself.
- Page 5 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
-
Page 6: Table Of Contents
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide Table of Contents Preface Chapter 1 Overview Overview ......................1-1 Key Features ....................1-1 Specifications ....................1-2 Available SKUs ....................1-4 Chapter 2 Hardware Components Add-On Card Image and Layout ..............2-1 Major Components .................. -
Page 7: Chapter 1 Overview
Overview Congratulations on purchasing your add-on card from an acknowledged leader in the industry. Supermicro products are designed with the utmost attention to detail to provide you with the highest standards in quality and performance. For product support and updates, please refer to our website at http://www.supermicro.com/... -
Page 8: Specifications
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide Specifications General • Four 10Gbps ports: two RJ45 and two SFP+ connectors (AOC-2UR68G4-i4XTS) • Intel X710-TM4 Ethernet Controller (AOC-2UR68G4-i4XTS) ® • Two 10Gbps ports: two RJ45 connectors (AOC-2UR68G4-i2XT) • Intel X710-AT2 Ethernet Controller (AOC-2UR68G4-i2XT) ®... - Page 9 Fiber-optic cables (with required optional SFP+ transceivers) • RJ-45 Category-6 up to 55m; Category-6A and Category-7 up to 100m Power Consumption • Maximum power consumption • AOC-2UR68G4-i4XTS: 14W (+75W for each PCI-E slot if used) • AOC-2UR68G4-i2XT: 13.5W (+75W for each PCI-E slot if used)
-
Page 10: Available Skus
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide Operating Conditions • Storage temperature: -40°C to 70°C (-40°F to 158°F) • Storage humidity: 90% non-condensing relative humidity at 35°C Supported Platforms • Supermicro Ultra systems ® Available SKUs Add-on Cards Controller... - Page 11 Chapter 1: Overview Notes...
-
Page 12: Chapter 2 Hardware Components

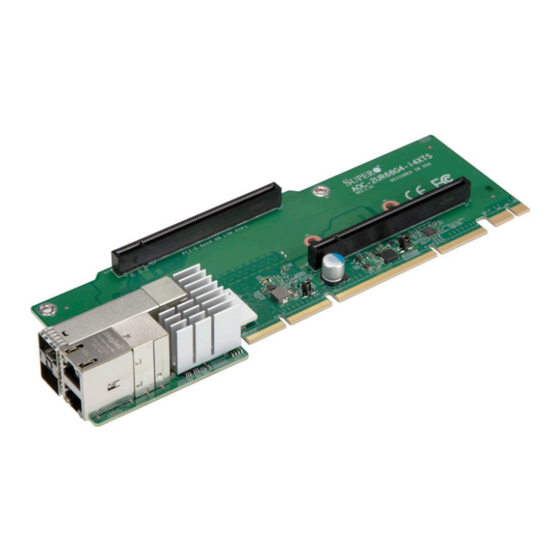

Chapter 2: Hardware Components Chapter 2 Hardware Components Add-On Card Image and Layout AOC-2UR68G4-i4XTS Image PCI-E 4.0 x8 (in x16) SLOT1 AOC-2UR68G4-i4XTS DESIGNED IN USA REV:1.01 PCI-E 4.0 x8 (internal in x16) SLOT3 JSFP+1 Intel® X710-TM4 SXB3_3 JLAN1 AOC-2UR68G4-i4XTS Layout (Top) - Page 13 Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide AOC-2UR68G4-i4XTS DESIGNED IN USA REV:1.01 PCI-E 4.0 x16 SLOT2 SXB3_1 SXB3_2 AOC-2UR68G4-i4XTS Layout (Bottom) AOC-2UR68G4-i2XT Image...
- Page 14 Chapter 2: Hardware Components PCI-E 4.0 x8 (in x16) SLOT1 AOC-2UR68G4-i2XT DESIGNED IN USA REV:1.01 PCI-E 4.0 x8 (internal in x16) SLOT3 Intel® X710-AT2 SXB3_3 JLAN1 AOC-2UR68G4-i2XT Layout (Top) AOC-2UR68G4-i2XT DESIGNED IN USA REV:1.01 PCI-E 4.0 x16 SLOT2 SXB3_1 SXB3_2 AOC-2UR68G4-i2XT Layout (Bottom)
-
Page 15: Major Components
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide Major Components The following major components are installed on the AOC-2UR68G4-i4XTS_i2XT: AOC-2UR68G4-i4XTS_i2XT Major Components Component Name Definition Intel X710-TM4/ Ethernet LAN controllers ® Intel X710-AT2 ® JLAN1 RJ45 Ports JSFP+1 SFP+ Ports PCI-E 4.0 x8 (in x16) Slot 1... -
Page 16: Ports
Chapter 2: Hardware Components Ports There are four LAN ports located on the AOC-2UR68G4-i4XTS add-on card and two located on AOC-2UR68G4-i2XT. Connect a Direct Attach Copper Twin Axial cable or an LC Fiber-Optic cable to the ports to provide Gigabit Ethernet communication. -
Page 17: Chapter 3 Installation
Chapter 3: Installation Chapter 3 Installation Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid dam- aging your add-on card, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •... -
Page 18: Before Installation
Super AOC-2UR68G4-i4XTS and AOC-2UR68G4-i2XT Add-on Card User's Guide Before Installation To install the add-on card properly, be sure to follow the instructions below. 1. Power down the system. 2. Remove the power cord from the wall socket. 3. Use industry standard anti-static equipment (such as gloves or wrist strap) and follow the instructions listed on Page 3-1 to avoid damage caused by ESD. -
Page 19: Installing Drivers For Windows
1. Run the CDR-NIC. (If you do not have a product CD-ROM, download drivers from the Supermicro Support Website and then transfer them to your system.) 2. When the SUPERMICRO window appears, click on the computer icon next to the product model. -
Page 20: Installing Driver For Linux
Installing Driver for Linux Use the following procedures for installing AOC-2UR68G4-i4XTS and AOC- 2UR68G4-i2XT drivers for the Linux operating system. 1. Download the driver from the Supermicro CDR-NIC LAN driver CD or ftp://ftp. supermicro.com/Networking_Drivers/CDR-NIC_1.62_for_Add-on_NIC_Cards/ Intel/LAN/PRO40GB/LINUX. Due to the continuous development of the Linux kernel, the drivers are updated more often than the bundled releases. - Page 21 (Disclaimer Continued) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
