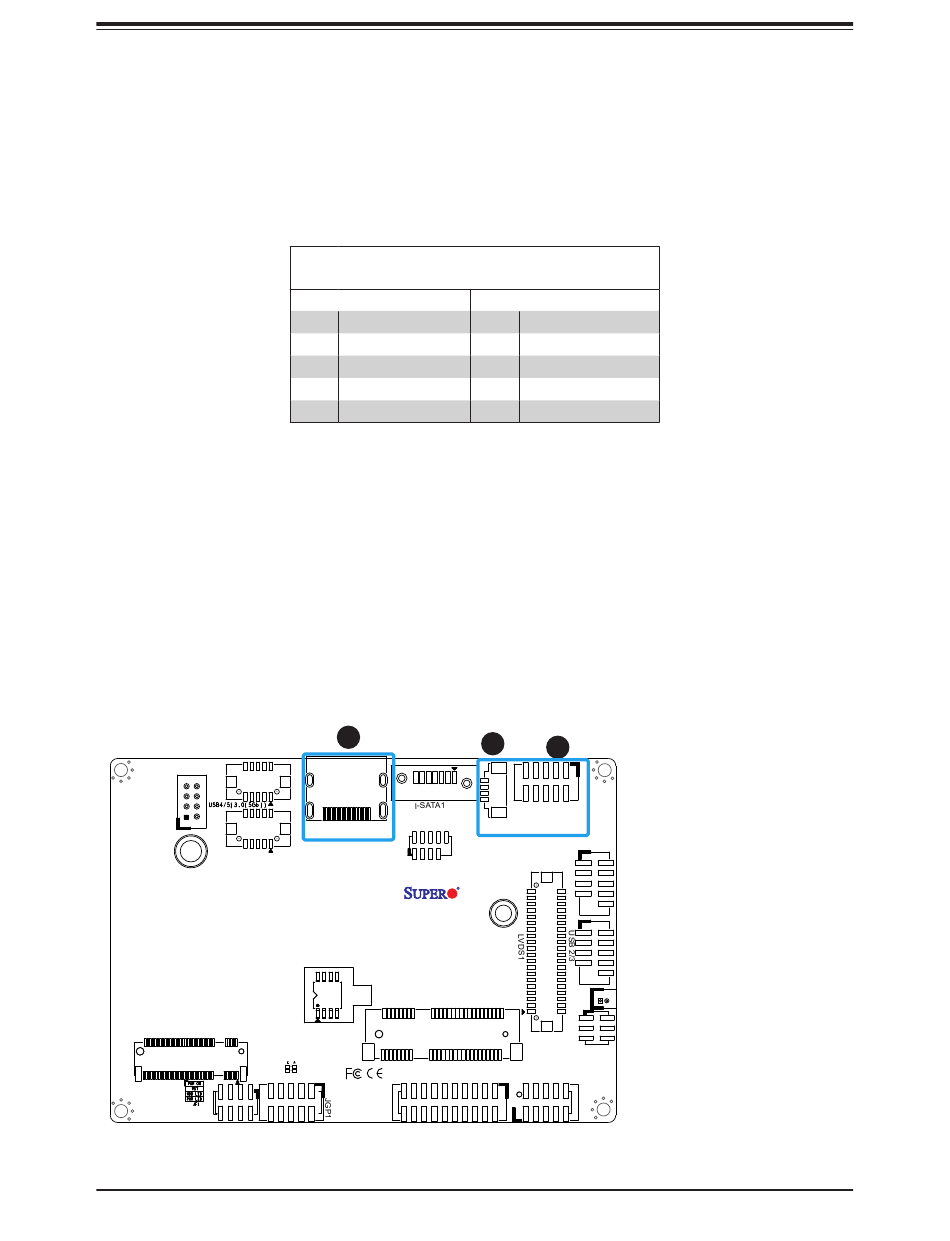

Super A2SAP-L1 User's Manual
LAN Port
One communication port (JLAN1) is located on the I/O back panel. The port supports RJ45
type cables. The LAN port has one two LEDs (located at JLAN1LED1) right next to it. Please
refer to the LED Indicator section for LAN LED information. Refer to the table below for pin
defintions.
HDMI Port
The High-Definition Multimedia Interface (HDMI) port is used to display both high definition
video and digital sound through an HDMI-capable display, using the same cable.
JPWR1
JUSB1
JUSB2
SRW2
JMD1
JF1
JLAN1 Port
Pin Definition
Pin#
Definition
1
I210_MDI1_T_P0
3
I210_MDI1_T_P1
5
GND_IO
7
I210_MDI1_T_P2
9
I210_MDI1_T_P3
3
JLAN1LED1
JHDMI1
JLPC
SRW1
JMP1
LED1
JCOM1: COM1/COM2
A2SAP-L1
REV:1.00
DESIGNED IN USA
26
Pin#
Definition
2
I210_MDI1_T_N0
4
I210_MDI1_T_N1
6
GND_IO
8
I210_MDI1_T_N2
10
I210_MDI1_T_N3
2
1
JLAN1
USB 0/1
BT1
JLCDPWR1
J3: AUDIO FP
1. JLAN1
2. LAN LED
3. HDMI
