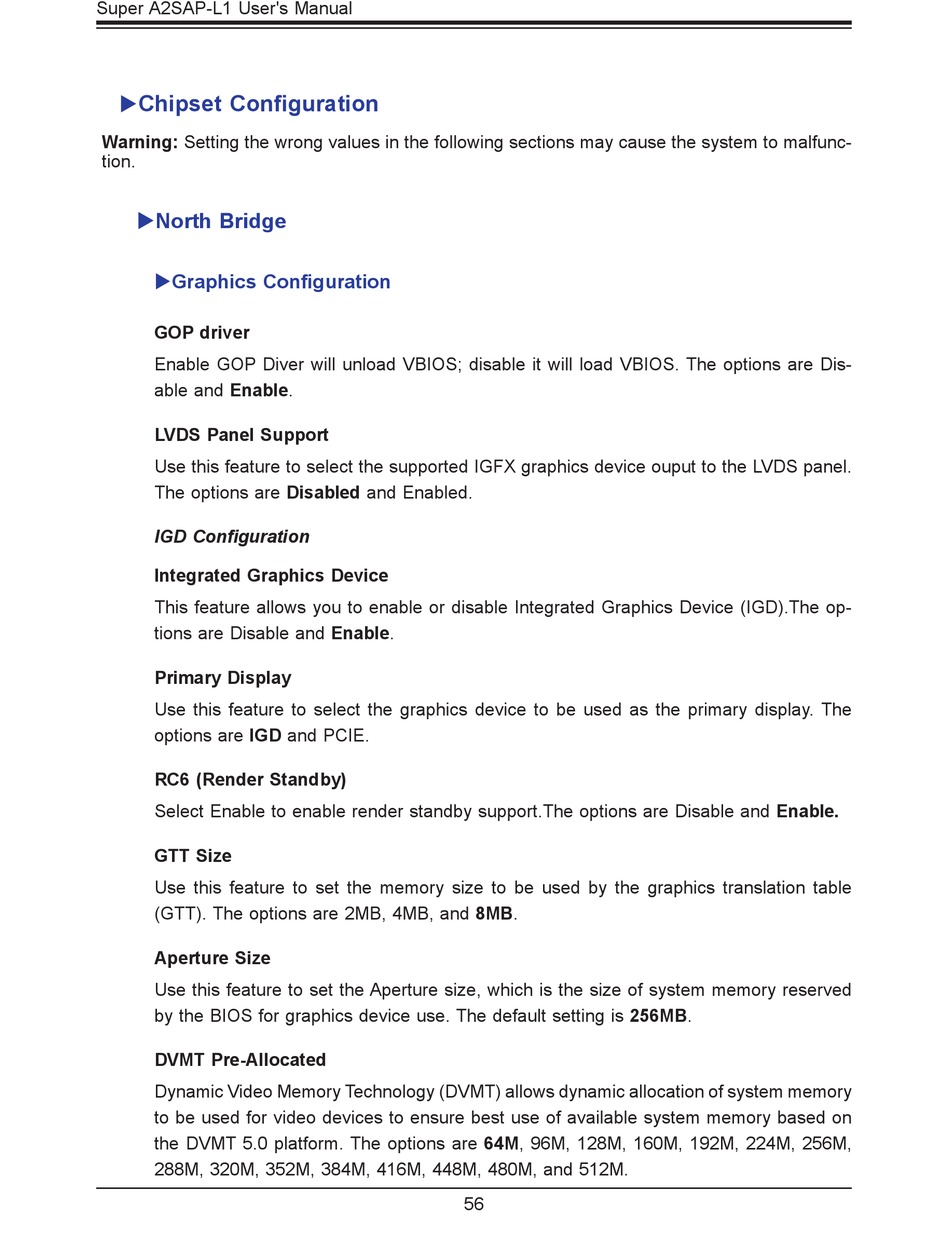

Super A2SAP-L1 User's Manual
Chipset Configuration

Warning: Setting the wrong values in the following sections may cause the system to malfunc-
tion.
North Bridge
Graphics Configuration
GOP driver
Enable GOP Diver will unload VBIOS; disable it will load VBIOS. The options are Dis-
able and Enable.
LVDS Panel Support
Use this feature to select the supported IGFX graphics device ouput to the LVDS panel.
The options are Disabled and Enabled.
IGD Configuration
Integrated Graphics Device
This feature allows you to enable or disable Integrated Graphics Device (IGD).The op-
tions are Disable and Enable.
Primary Display
Use this feature to select the graphics device to be used as the primary display. The
options are IGD and PCIE.
RC6 (Render Standby)
Select Enable to enable render standby support.The options are Disable and Enable.
GTT Size
Use this feature to set the memory size to be used by the graphics translation table
(GTT). The options are 2MB, 4MB, and 8MB.
Aperture Size
Use this feature to set the Aperture size, which is the size of system memory reserved
by the BIOS for graphics device use. The default setting is 256MB.
DVMT Pre-Allocated
Dynamic Video Memory Technology (DVMT) allows dynamic allocation of system memory
to be used for video devices to ensure best use of available system memory based on
the DVMT 5.0 platform. The options are 64M, 96M, 128M, 160M, 192M, 224M, 256M,
288M, 320M, 352M, 384M, 416M, 448M, 480M, and 512M.
56
