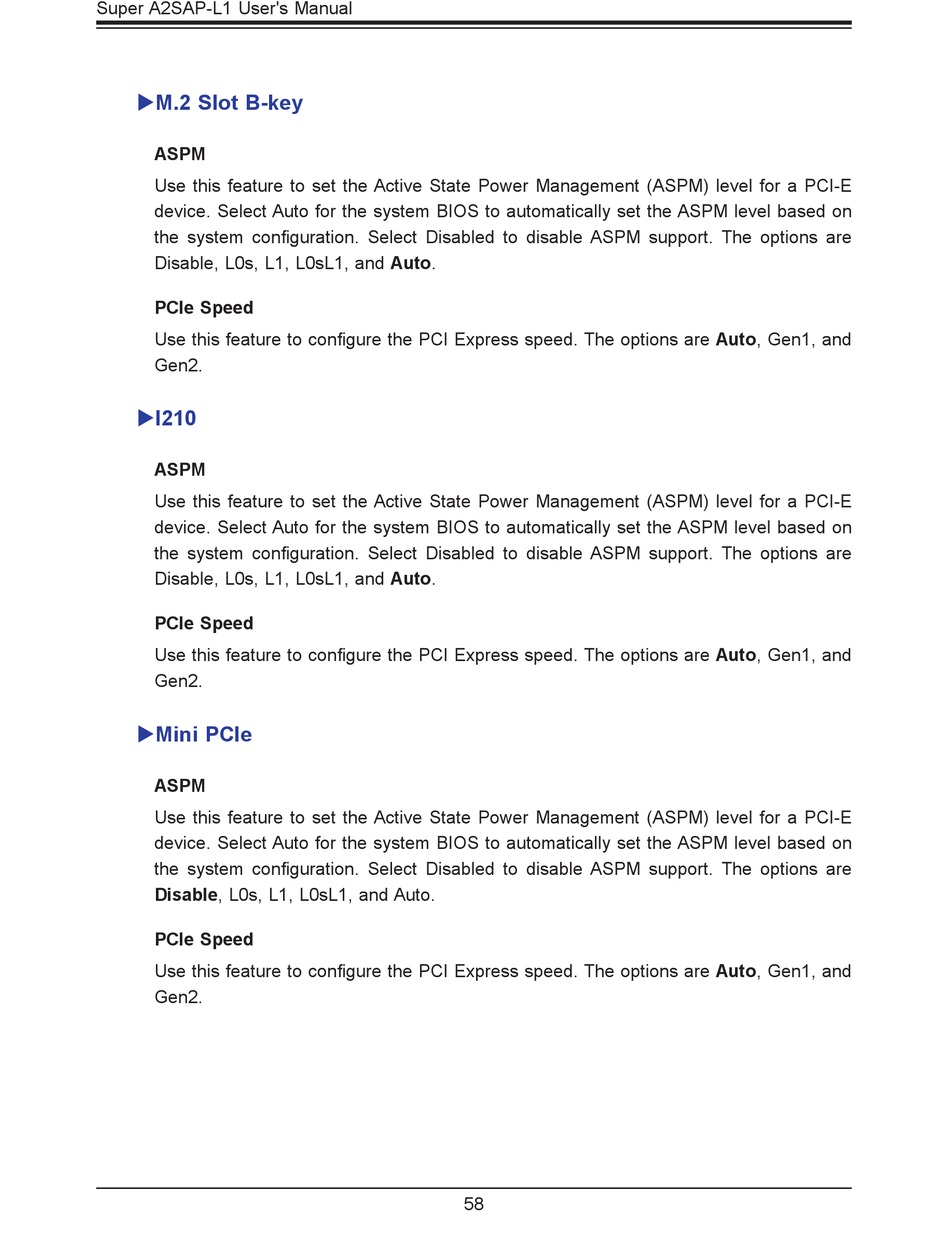

Super A2SAP-L1 User's Manual
M.2 Slot B-key
ASPM
Use this feature to set the Active State Power Management (ASPM) level for a PCI-E
device. Select Auto for the system BIOS to automatically set the ASPM level based on
the system configuration. Select Disabled to disable ASPM support. The options are
Disable, L0s, L1, L0sL1, and Auto.
PCIe Speed
Use this feature to configure the PCI Express speed. The options are Auto, Gen1, and
Gen2.
I210
ASPM
Use this feature to set the Active State Power Management (ASPM) level for a PCI-E
device. Select Auto for the system BIOS to automatically set the ASPM level based on
the system configuration. Select Disabled to disable ASPM support. The options are
Disable, L0s, L1, L0sL1, and Auto.
PCIe Speed
Use this feature to configure the PCI Express speed. The options are Auto, Gen1, and
Gen2.
Mini PCIe
ASPM
Use this feature to set the Active State Power Management (ASPM) level for a PCI-E
device. Select Auto for the system BIOS to automatically set the ASPM level based on
the system configuration. Select Disabled to disable ASPM support. The options are
Disable, L0s, L1, L0sL1, and Auto.
PCIe Speed
Use this feature to configure the PCI Express speed. The options are Auto, Gen1, and
Gen2.
