Proper use

The product is an electrical drive component. It is applicable for
,
installation in machines or electrical plants
,
the control of three-phase asynchronous motors and synchronous motors
,
industrial environments
GB Transport and Storage
Ambient temperature:
Relative humidity:
,
Store in original packaging in dry rooms without dust.
,
Avoid high temperature variations.
,
Connect to mains voltage for 60 minutes after one year of storage.
On opening the package
,
Make sure that the delivered product is the part you have ordered.
,
Check if the product is damaged and make sure that the delivery is complete.
,
Notify complaints to the supplier immediately.

Installation place

,
Indoors , protected against weather influence.
,
Avoid direct sunlight exposure.
,
Avoid dust.
,
Keep away from strong electromagnetic fields.
,
Keep away from combustible material.
,
Provide sufficient cooling. Install fans when installing the frequency inverter inside an enclosed
cabinet.
, Altitude: 3000 m, over 1000 m with derating (output current reduction).
The degree of protection of the frequency inverter is IP20.
Operating conditions
Ambient temperature:
Relative humidity:
Ambient pressure:

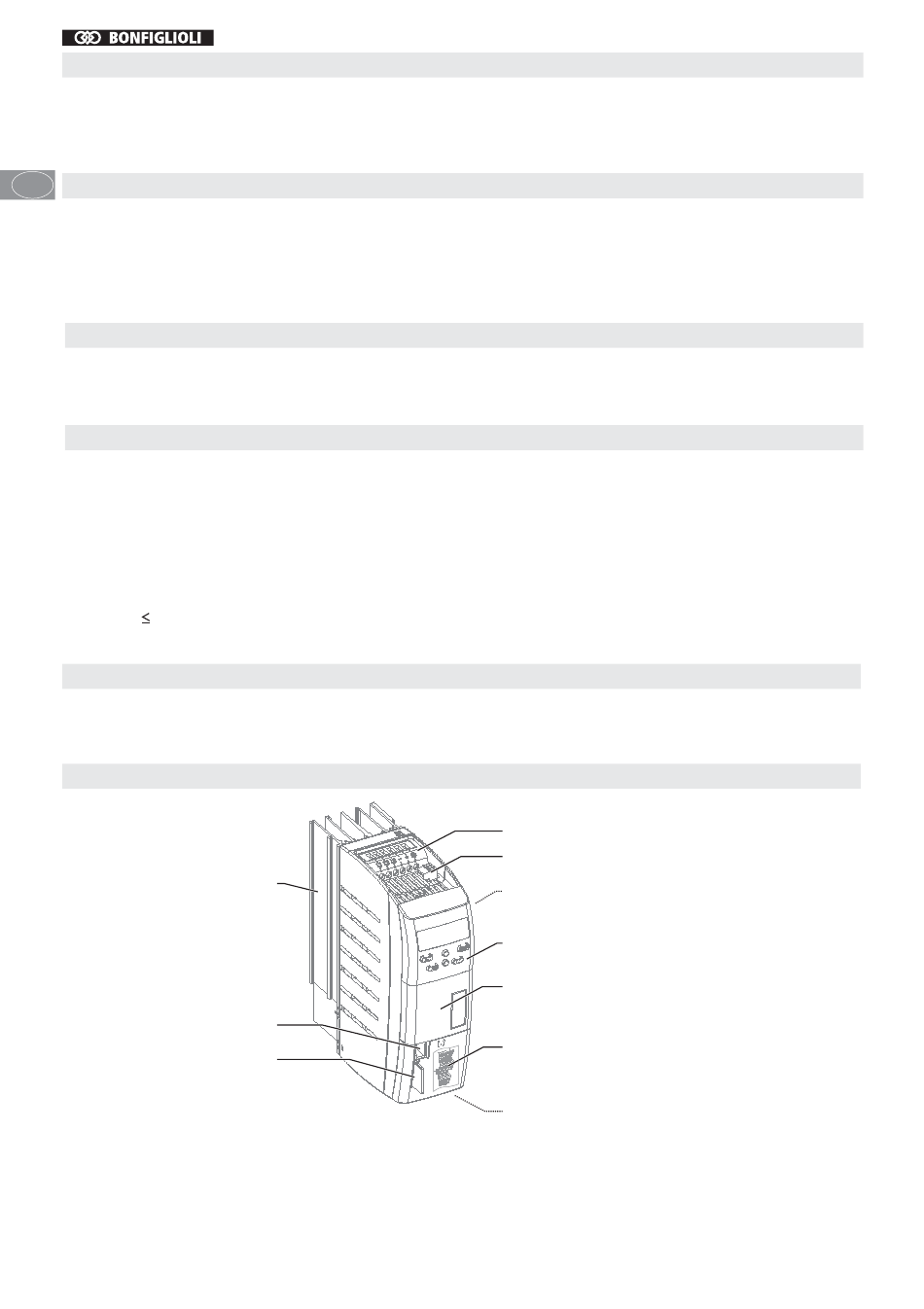

Overview
Service interface X21
with RJ45 connection
Memory card slot
-25 ... 55 °C
5 ... 95%, free of condensation
0 ... 40 °C
maximum 85%, free of condensation
70 ... 106 kPa
Heat sink
Mains connection
Relay output
Type plate
Operator panel
Plug-in section for
optional communication module
Control terminals
Motor connection
