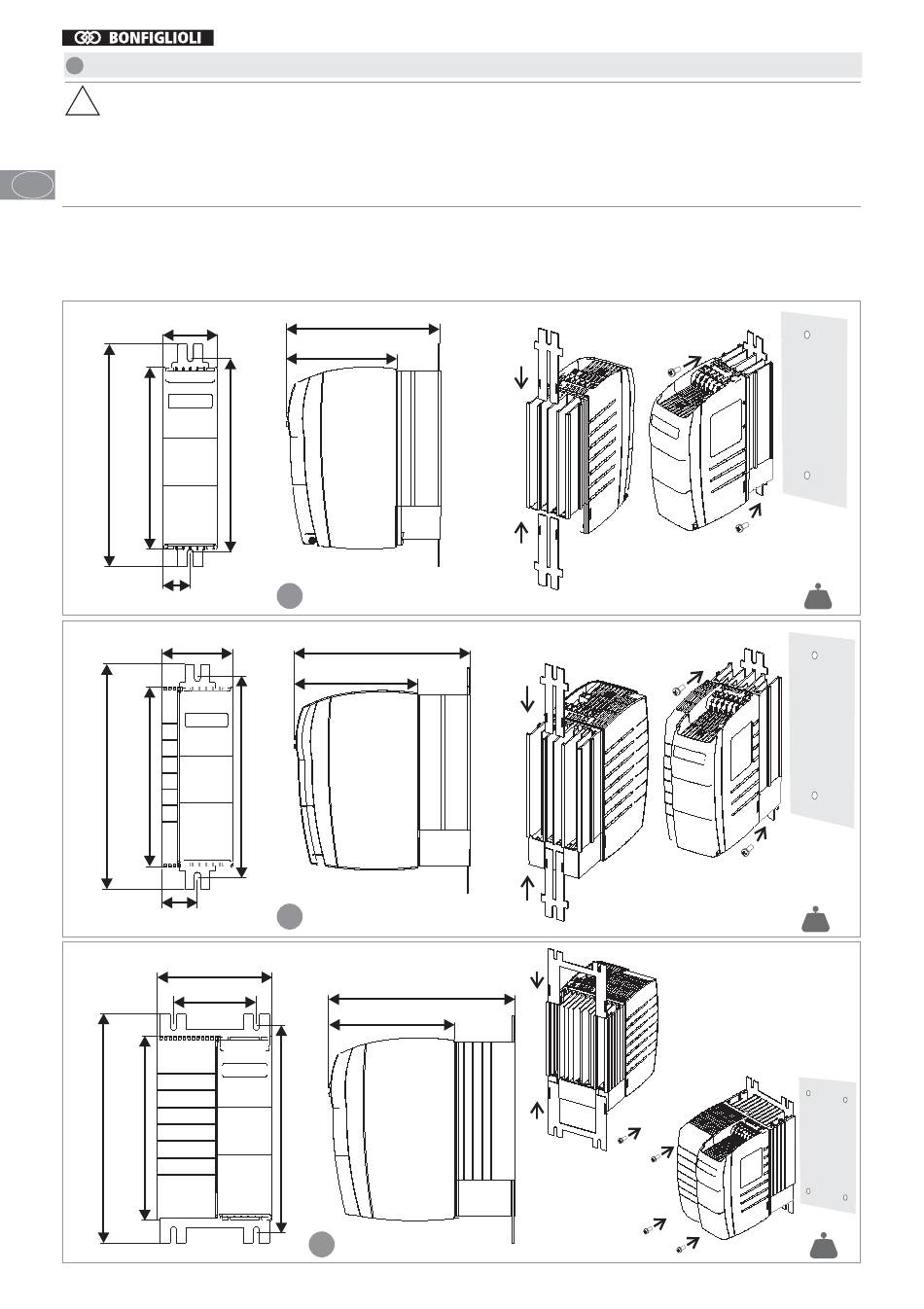

Assembly
A
Warning!
!
,
Make sure, that no foreign particles (e.g. dust, metal shavings, wires, screws, tools) can get inside
the frequency inverter.
,
Install the frequency inverter on a nonflammable mounting plate.
GB
,
Installation in bottom-up or horizontal position is not permissible.
,
Screw the frequency inverter to a metallic (not varnished) mounting plate.
,
The frequency inverter must be earthed.
,
For potential equalization connect frequency inverters, cabinets, machine frames, filters etc. via short
conductors (with large cross-section) to the same earth potential.
60
244
200
30
80
200
250
40
250 200
170
120
220
( +3 )
Frame size 1
A1
196
138
220
(+3)
Frame size 2
A2
125
90
220
(+3)
Frame size 3
A3
205
138
4
1.1
kg
2.2
kg
kg 3
