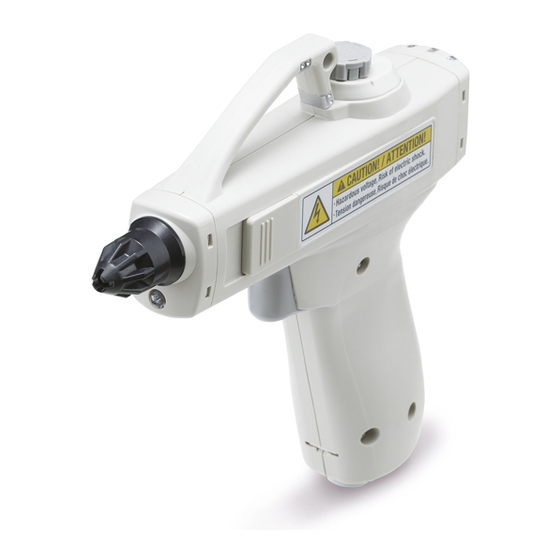

Gun type ionizer
Hide thumbs Also See for IZG10 Series:

Advertisement

Quick Links

Download this manual
Gun Type Ionizer
IZG10
Series
Lighting LED
Reduced operating force
Blow setting function
Select from continuous blow or pulse blow.
Trigger setting function
Trigger linked/Trigger lock/OFF timer can be selected.
Flow rate adjustment function
Flow adjustment valve with indicator enables handheld
flow adjustment.
Easy to hold grip
179
p.
179
p.
180
p.
*1 Distance: 150 mm,
Rapid static
neutralization
0.3
*1
s
Operating pressure: 0.2 MPa
178

Advertisement

loading
Need help?

Need help?

Do you have a question about the IZG10 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks IZG10 Series

Summary of Contents for SMC Networks IZG10 Series

  • Page 1 Gun Type Ionizer IZG10 Series Lighting LED Reduced operating force Easy to hold grip Blow setting function Select from continuous blow or pulse blow. Rapid static Trigger setting function neutralization Trigger linked/Trigger lock/OFF timer can be selected. Flow rate adjustment function Flow adjustment valve with indicator enables handheld *1 Distance: 150 mm, flow adjustment.
  • Page 2 Gun Type Ionizer IZG10 Series Blow and trigger setting can be selected. Mode setting switch Set no. Blow setting Trigger setting Trigger linked Trigger lock Continuous blow OFF timer Trigger linked Trigger lock Pulse blow OFF timer Selection of blow setting Continuous blow Pulse blow Blows ionized air continuously.
  • Page 3 Gun Type Ionizer IZG10 Series With flow adjustment valve (with indicator) ¡Flow rate of ionized air can be adjusted on the gun. ¡The flow rate can be controlled numerically. Number of needle rotations Flow rate [L/min (ANR)] Supply pressure: 0.4 MPa High visibility LEDs Rear mounted LEDs are Power ON...
  • Page 4 Gun Type Ionizer IZG10 Series Application Examples For the static neutralization and For the static neutralization and For the dust removal of resin dust removal of resin parts dust removal of resin parts products For the static neutralization and For the static neutralization and For the dust removal when dust removal of electric substrates dust removal of resin parts with the...
  • Page 5 IZG10 Series Technical Data * Static neutralization characteristics are based on data using a charged plate (Dimensions: 150 mm x 150 mm, Capacitance: 20 pF) as defined in the U.S. ANSI standards (ANSI/ESD STM3.1-2015). Use this data only as a guideline for model Static Neutralization Characteristics selection because the values vary depending on the material and/or size of the subject.
  • Page 6 IZG10 Series * Static neutralization characteristics are based on data using a charged plate (Dimensions: 150 mm x 150 mm, Capacitance: 20 pF) as defined in the U.S. ANSI standards (ANSI/ESD STM3.1-2015). Use this data only as a guideline for model Static Neutralization Characteristics selection because the values vary depending on the material and/or size of the subject.
  • Page 7 IZG10 Series Technical Data * Static neutralization characteristics are based on data using a charged plate (Dimensions: 150 mm x 150 mm, Capacitance: 20 pF) as defined in the U.S. ANSI standards (ANSI/ESD STM3.1-2015). Use this data only as a guideline for model Static Neutralization Characteristics selection because the values vary depending on the material and/or size of the subject.
  • Page 8 Gun Type Ionizer IZG10 Series RoHS How to Order IZG10 08 01 01 One-touch fitting AC adapter , Power supply cable Nozzle type Symbol Port size Symbol Type Symbol Type AC adapter (With AC cord * ø8 (Metric) Standard nozzle Bypass nozzle * ø5/16"...
  • Page 9 IZG10 Series Gun Type Ionizer Specifications AC Adapter Specifications IZG10 Ionizer model 100 to 240 VAC Input voltage * Ion generation method 50/60 Hz Corona discharge type 24 VDC ±5% Method of applying high voltage High frequency AC type Output voltage Applied voltage * ±2.5 kV Output current...
  • Page 10 IZG10 Series Mode Switch Setting Blow or trigger setting can be selected by using the mode setting switch. Open the slide cover and using a flat bladed screwdriver rotate the dial to select the setting number 0 to 9, referring to the table below. * Ensure the slide cover is closed when setting is complete.
  • Page 11 IZG10 Series Gun Type Ionizer Dimensions (157) For the bypass nozzle For the bypass nozzle One-touch fitting Power supply connector Applicable tubing O.D. (Refer to Table 1.) Table 1 Model Applicable tubing O.D. IZG10-08m-01 ø8 (Metric) IZG10-09m-01 ø5/16" (Inch) AC adapter IZG10-CGm AC adapter body AC cord Power supply cable (For AC adapter)
  • Page 12 IZG10 Series Related Products Recommended pneumatic circuit diagram IZG10 Caution Install an air dryer, air filter, line filter, and/or mist sepa- rator to obtain clean compressed air (A compressed air quality of Class 2.4.3, 2.5.3, 2.6.3, or higher according to ISO 8573-1:2010 (JIS B 8392-1:2012) is recom- mended for operation.).
  • Page 13 IZG10 Series Specific Product Precautions 1 Be sure to read this before handling the products. Refer to page 227 for safety instructions. Selection Wiring / Piping Warning Warning 1. This product is intended to eliminate static electrici- 4. To maintain the product performance, connect the ty from the equipment for factory automation.
  • Page 14 IZG10 Series Specific Product Precautions 2 Be sure to read this before handling the products. Refer to page 227 for safety instructions. Handling Operating Environment / Storage Environment Warning Warning 10. Make sure that no twist, turn, tensile force or mo- 5.
  • Page 15 IZG10 Series Specific Product Precautions 3 Be sure to read this before handling the products. Refer to page 227 for safety instructions. Maintenance Warning 1. Periodically inspect the ionizer and clean the emit- ters. · Check the product regularly to make sure it is not operating with undetected failures.
