Nozzle Type Ionizer
16
Slim
33
Lightweight
Offset voltage:
(For energy saving static neutralization nozzle)
Energy saving static
High flow
neutralization nozzle
rate nozzle
Nozzle Variations
Made to order
With right angles -X367
4 , 21
p.
Energy saving static
neutralization
nozzle
5 , 23
p.
Circular diffusion
nozzle
Bar nozzle
(straight type)
Circumferential jet bar nozzle
(straight type)
Bender tube nozzle
Long nozzle
IZN10E
Series
100
Thickness
x
mm
% reduction
120 g
80 g
a
±10
V
Female threads
for piping
High flow rate
nozzle
Flat diffusion
nozzle
46
Width
Height
x
mm
mm
Application Examples
Dust removal and static neutralization by air blow
Static neutralization and particle
elimination on plastic bottles
Spot type static neutralization
· Prevents electrostatic breakdown
of electric parts.
· Prevents detachment failure.
®
RoHS
CAT.ES100-121A
Advertisement
Table of Contents
Related Manuals for SMC Networks IZN10E Series
Summary of Contents for SMC Networks IZN10E Series

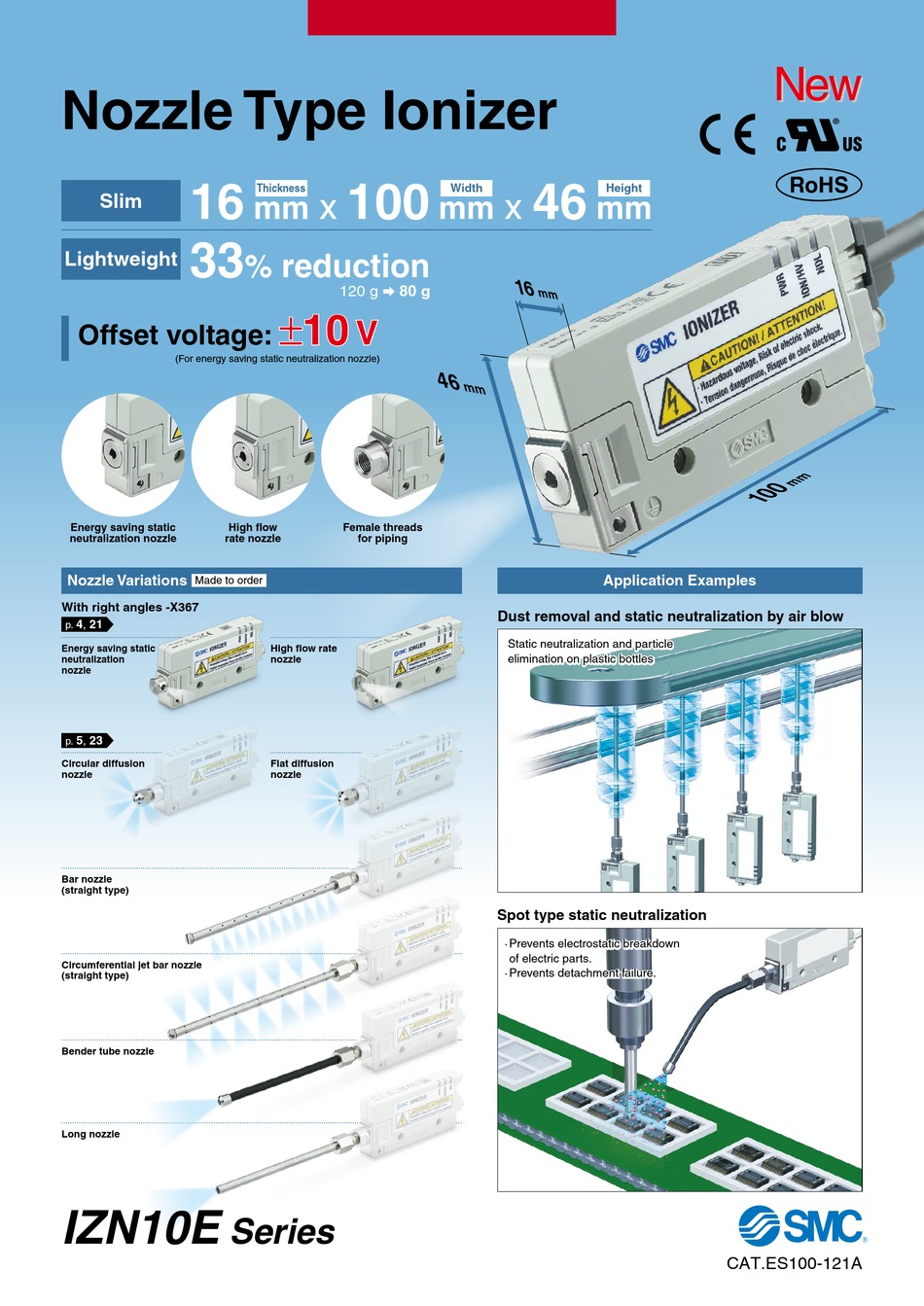

- Page 1 Nozzle Type Ionizer ® RoHS Thickness Width Height Slim Lightweight % reduction 120 g 80 g ±10 Offset voltage: (For energy saving static neutralization nozzle) Energy saving static High flow Female threads neutralization nozzle rate nozzle for piping Nozzle Variations Application Examples Made to order With right angles -X367...
- Page 2 Nozzle Type Ionizer IZN10E Series Nozzle type can be selected according to applications. Short range Energy saving static neutralization nozzle static neutralization Design focuses on < Static neutralization is possible with minimal air consumption.> offset voltage External air External air inlet Offset voltage: ±10 V Ionized air Discharge time reduced by...
- Page 3 Nozzle Type Ionizer IZN10E Series With external switch input function (2 inputs) static neutralization trouble Energy saving Prevents Emission of static electricity is suspended when Emission of static electricity is suspended when an abnormal purge air pressure is detected by pressure electrostatic sensor detects that static neutralization is switch.
- Page 4 Nozzle Type Ionizer IZN10E Series Mounting variations Direct mount Top through-hole mounting Bottom tapped mounting Bracket mount L-bracket Pivoting bracket 35° Mounting surface DIN rail mounting bracket Single unit Manifold · The L-bracket and the DIN rail mounting bracket can be used with the manifold. Intermittent control timer Related product Air saving...
- Page 5 Nozzle Type Ionizer IZN10E Series Nozzle variations Made to order With right angles -X367 360° rotation 2 types of nozzles *1 Installation distance: 100 mm Energy saving static neutralization nozzle Short range static neutralization Design focuses on offset voltage. Offset voltage: Within ±10 V * Ionized air Increases air blow flow rate by External air inlet...
- Page 6 Nozzle Type Ionizer IZN10E Series Nozzle variations Made to order Circular diffusion nozzle Static neutralization range Ionized air Flat diffusion nozzle Static neutralization range Ionized air For the ionizer, please select the female threads for piping (Rc1/8). Bar nozzle (straight type) Circumferential jet bar nozzle (straight type) Bender tube nozzle Long nozzle...
- Page 7 Nozzle Type Ionizer IZN10E Series Series Variations IZN10E-01 IZN10E-02 IZN10E-11 Energy saving High flow Female static neutraliza- rate nozzle threads tion nozzle for piping Nozzle type Ion generation Corona discharge type method Input/Output NPN, PNP specifications L-bracket Pivoting bracket DIN rail mounting bracket Bracket Pivot mounting Manifold...
-
Page 8: Table Of Contents
C O N T E N T S Nozzle Type Ionizer IZN10E Series Technical Data Static Neutralization Characteristics p. 8 Blow Velocity Distribution p. 8 Flow Rate Characteristics p. 9 Ozone Concentration p. 9 Energy saving static neutralization nozzle How to Order p. -
Page 9: Technical Data
IZN10E Series Technical Data * Static neutralization characteristics are based on data using a charged plate (dimensions: 150 mm x 150 mm, capacitance: 20 pF) as defined in the U.S. ANSI standards (ANSI/ESD STM3.1-2006). Use this as a guideline purpose only for model selection because the value varies Static Neutralization Characteristics (Discharge Time from +1000 V to +100 V) depending on the material and/or size of a subject. -
Page 10: Flow Rate Characteristics
IZN10E Series Flow Rate Characteristics q Energy saving static neutralization nozzle IZN10E-01 w High flow rate nozzle IZN10E-02 Flow rate [L/min (ANR)] Flow rate [L/min (ANR)] e Female threads for piping IZN10E-11 With Stainless steel 316 One-touch fitting + Anti-static tubing Pressure gauge 0.30 O.D. -
Page 11: How To Order
Nozzle Type Ionizer ® IZN10E Series How to Order Energy saving IZN10E 01 P 06 Z B1 static High flow neutralization rate nozzle nozzle Female threads High frequency AC nozzle type for piping Bracket Nozzle type Symbol Type Part no. Symbol Type None... -
Page 12: Specifications
IZN10E Series Specifications IZN10E-m IZN10E-mP Model (NPN specification) (PNP specification) Ion generation method Corona discharge type Method of applying voltage High frequency AC type Applied voltage * 2.5 kVAC Energy saving static neutralization nozzle ±10 V Offset voltage (Ion balance) * High flow rate nozzle ±15 V Fluid... -
Page 13: Accessories
IZN10E Series Nozzle Type Ionizer Accessories Bracket Power supply cable IZN10 B1 IZN10E CP Bracket Power supply cable Symbol Type Symbol Type L-bracket Pivoting bracket 10 m DIN rail mounting bracket Power supply cable: Made to order L-bracket Pivoting bracket IZN10E CP IZN10-B1 IZN10-B2... -
Page 14: Options
IZN10E Series Options Manifold mounting parts set AC adapter This set consists of a hexagon socket head cap screw, spacer, IZN10E C and hexagon nut. *1 The ionizer, L-bracket, and DIN rail mounting bracket need to be prepared separately. AC adapter Input/Output specifications Symbol... -
Page 15: Functions
IZN10E Series Nozzle Type Ionizer Functions 1. Maintenance warning Constantly monitors lowered static neutralization performance due to contamination or wear of the emitter. The maintenance LED lights up and maintenance signal is generated. 2. Signal inputs by external switch There are 2 ports for external switch signal inputs. Example Emission of static electricity is sus- Example Emission of static electricity is suspend- pended when abnormal purge air pres-... -
Page 16: Wiring
IZN10E Series Wiring Wiring requirement * No. Cable color Description Specifications Brown +24 VDC – – Blue – – Orange Discharge stop signal Input When the signal is turned off, discharge stops. When the signal is turned on and then off, the error signal is reset. Pink Reset signal Input... -
Page 17: Power Supply Cable Connection Circuit
IZN10E Series Nozzle Type Ionizer Power Supply Cable Connection Circuit Make sure to ground the ground terminal with a ground resistance of 100 Ω or less. The ground terminal is used as a reference electric potential for static neutralization. If the ground terminal is not grounded, the ionizer will not be able to achieve the optimal offset voltage (ion balance). M NPN input/output M PNP input/output Ionizer... -
Page 18: Dimensions
IZN10E Series Dimensions Energy saving static neutralization nozzle IZN10E-01m High flow rate nozzle IZN10E-02m 18.3 ∗ (100) 92.5 12.4 M3 x 0.5 thread depth 4 27.7 Applicable tubing O.D. ø (Ground terminal) 86.4 [mm] Model IZN10E- IZN10E- 34.7 2 x M3 x 0.5 thread depth 10 1/4"... - Page 19 IZN10E Series Nozzle Type Ionizer Dimensions L-bracket IZN10-B1 (Mounting angle adjustable range) 40° 2 x M3 Internal mounting 20.5 8 x ø3.4 2 x Hexagon socket head cap 22.7 screw M3 x 6 (Accessory) Pivot mounting Internal mounting Pivoting bracket IZN10-B2 20°...
- Page 20 IZN10E Series Dimensions DIN rail mounting bracket IZN10-B3 (Mounting angle adjustable range) 40° Internal mounting 20.5 8 x ø3.4 2 x Hexagon socket head cap screw M3 x 6 (Accessory) 22.7 Pivot mounting Internal mounting Power supply cable IZN10E-CPm Cable Specifications No.
-
Page 21: Related Product
IZN10E Series Related Product This product is an individually applicable product. For details about the delivery time and price, please consult with SMC representative. Intermittent Control Timer (Made to Order) Air saving A digital timer that can control ON/OFF switches of valves etc. Application: Improved dust removal effect under low air consumption by intermittent ion blowing Adjustable frequency: 0.1 to 50.0 Hz... -
Page 22: Made To Order 1
IZN10E Series Made to Order 1 This product is an individually applicable product. For details about the delivery time and price, please consult with SMC representative. How to Order IZN10E X367 With right angles Nozzle type Nozzle with right angles Symbol Type Refer to the standard product number on page 10. - Page 23 IZN10E Series Made to Order Dimensions Energy saving static neutralization nozzle IZN10E-01-X367 (107) 92.5 Variable nozzle direction 12.4 M3 x 0.5 thread depth 4 27.7 (Ground terminal) 86.4 Air blow port 34.7 2 x M3 x 0.5 thread depth 10 High flow rate nozzle IZN10E-02-X367 (103)
-
Page 24: Nozzle Variations
IZN10E Series Made to Order 2 This product is an individually applicable product. For details about the delivery time and price, please consult with SMC representative. Nozzle Variations For the ionizer, please select the female threads for piping (Rc1/8). (Refer to How to Order on page 10.) Circular diffusion nozzle Flat diffusion nozzle Static neutralization... -
Page 25: Specific Product Precautions 1
IZN10E Series Specific Product Precautions 1 Be sure to read this before handling the products. Refer to the back cover for safety instructions. Mounting Selection Warning Warning 1. This product is intended to be used with general 3. Keep the area specified clear when the product is mounted directly on to a mounting surface or work- factory automation (FA) equipment. - Page 26 IZN10E Series Specific Product Precautions 2 Be sure to read this before handling the products. Refer to the back cover for safety instructions. Wiring/Piping Mounting Warning Warning 7. Do not allow foreign matter or tools to enter the 1. Before wiring, ensure that the power supply capacity is nozzle.
- Page 27 IZN10E Series Specific Product Precautions 3 Be sure to read this before handling the products. Refer to the back cover for safety instructions. Operating Environment/Storage Environment Maintenance Warning Warning 2. Take preventative measures against ozone. 1. Perform maintenance regularly and clean the emitters. Equipment used around this product should have ozone-prevention Check regularly if the product is operating with undetected measures.
-
Page 28: Safety Instructions
These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for ∗1) safety and must be followed in addition to International Standards (ISO/IEC) and other safety regulations.
