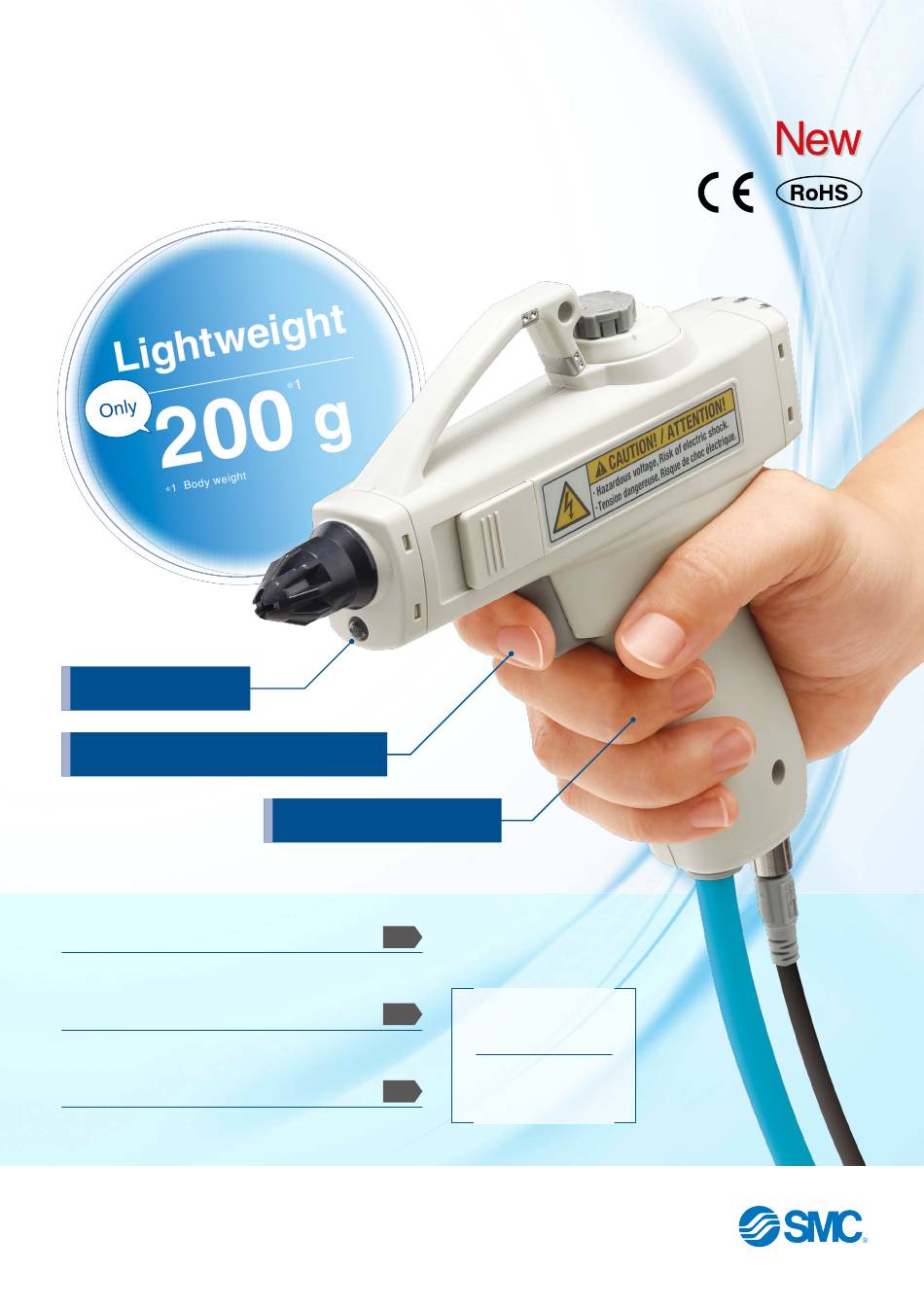

Gun Type Ionizer
Lighting LED
Reduced operating force
Blow setting function
Select from continuous blow or pulse blow.
Trigger setting function
Trigger linked/Trigger lock/OFF timer can be selected.
Flow rate adjustment function
Flow adjustment valve with indicator enables handheld
flow adjustment.
IZG10
Series
Easy to hold grip
1
p.
1
p.
2
p.
*1 Distance: 150 mm,
Rapid static
neutralization
0.3
*1
s
Operating pressure: 0.2 MPa
CAT.ES100-134A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IZG10 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SMC Networks IZG10 Series

  • Page 1 Gun Type Ionizer Lighting LED Reduced operating force Easy to hold grip Blow setting function Select from continuous blow or pulse blow. Rapid static Trigger setting function neutralization Trigger linked/Trigger lock/OFF timer can be selected. Flow rate adjustment function Flow adjustment valve with indicator enables handheld *1 Distance: 150 mm, flow adjustment.
  • Page 2 Gun Type Ionizer IZG10 Series Blow and trigger setting can be selected. Mode setting switch Set no. Blow setting Trigger setting Trigger linked Trigger lock Continuous blow OFF timer Trigger linked Trigger lock Pulse blow OFF timer Selection of blow setting Continuous blow Pulse blow Blows ionized air continuously.
  • Page 3 Gun Type Ionizer IZG10 Series With flow adjustment valve (with indicator) ¡Flow rate of ionized air can be adjusted on the gun. ¡The flow rate can be controlled numerically. Number of needle rotations Flow rate [L/min (ANR)] Supply pressure: 0.4 MPa High visibility LEDs Rear mounted LEDs are Power ON...
  • Page 4: Table Of Contents

    Gun Type Ionizer IZG10 Series Application Examples For the static neutralization and For the static neutralization and For the dust removal of resin dust removal of resin parts dust removal of resin parts products For the static neutralization and For the static neutralization and For the dust removal when dust removal of electric substrates dust removal of resin parts with the...
  • Page 5: Installation Distance And Discharge Time

    IZG10 Series Technical Data * Static neutralization characteristics are based on data using a charged plate (dimensions: 150 mm x 150 mm, capacitance: 20 pF) as defined in the U.S. ANSI standards (ANSI/ESD STM3.1-2015). Use this data only as a guideline for model Static Neutralization Characteristics selection because the values vary depending on the material and/or size of the subject.
  • Page 6: W  S Tatic Neutralization Range

    IZG10 Series * Static neutralization characteristics are based on data using a charged plate (dimensions: 150 mm x 150 mm, capacitance: 20 pF) as defined in the U.S. ANSI standards (ANSI/ESD STM3.1-2015). Use this data only as a guideline for model Static Neutralization Characteristics selection because the values vary depending on the material and/or size of the subject.
  • Page 7: E  P Ressure - Flow Rate Characteristics

    IZG10 Series Technical Data * Static neutralization characteristics are based on data using a charged plate (dimensions: 150 mm x 150 mm, capacitance: 20 pF) as defined in the U.S. ANSI standards (ANSI/ESD STM3.1-2015). Use this data only as a guideline for model Static Neutralization Characteristics selection because the values vary depending on the material and/or size of the subject.
  • Page 8: How To Order

    Gun Type Ionizer IZG10 Series RoHS How to Order IZG10 08 01 01 One-touch fitting AC adapter, Power supply cable Symbol Applicable tubing O.D. Symbol Type AC adapter (With AC cord * ø8 (Metric) ø5/16" (Inch) AC adapter (Without AC cord) Power supply cable (For 24 VDC wiring) *1 AC cord is only for use in Japan.
  • Page 9: Specifications

    IZG10 Series Gun Type Ionizer Specifications AC Adapter Specifications IZG10 Ionizer model 100 to 240 VAC Input voltage * Ion generation method Corona discharge type 50/60 Hz 24 VDC ±5% Method of applying high voltage High frequency AC type Output voltage Applied voltage * ±2.5 kV Output current...
  • Page 10: Mode Switch Setting

    IZG10 Series Mode Switch Setting Blow or trigger setting can be selected by using the mode setting switch. Open the slide cover and using a flat bladed screwdriver rotate the dial to select the setting number 0 to 9, referring to the table below. * Ensure the slide cover is closed when setting is complete.
  • Page 11: Dimensions

    IZG10 Series Gun Type Ionizer Dimensions (157) One-touch fitting Power supply connector Applicable tubing O.D. (Refer to Table 1.) Table 1 Model Applicable tubing O.D. IZG10-08m-01 ø8 (Metric) IZG10-09m-01 ø5/16" (Inch) AC adapter IZG10-CGm AC adapter body AC cord Power supply cable (For AC adapter) (Not included for the IZG10-CG2) 3190 1830...
  • Page 12: Related Products

    IZG10 Series Related Products Recommended pneumatic circuit diagram IZG10 Caution Install an air dryer (IDF series), air filter (AF/AFF series), and/or mist separator (AFM/AM series) to obtain clean compressed air (compressed air quality of Class 2.4.3., 2.5.3., 2.6.3 or higher according to ISO 8573-1:2010 (JIS B 8392-1:2012) is recommended for operation).
  • Page 13: Specific Product Precautions 1

    IZG10 Series Specific Product Precautions 1 Be sure to read this before handling the products. Refer to the back cover for safety instructions. Selection Wiring / Piping Warning Warning 1. This product is intended to eliminate static electrici- 4. To maintain the product performance, connect the ty from the equipment for factory automation.
  • Page 14 IZG10 Series Specific Product Precautions 2 Be sure to read this before handling the products. Refer to the back cover for safety instructions. Handling Operating Environment / Storage Environment Warning Warning 10. Make sure that no twist, turn, tensile force or mo- 5.
  • Page 15 IZG10 Series Specific Product Precautions 3 Be sure to read this before handling the products. Refer to the back cover for safety instructions. Maintenance Warning 1. Periodically inspect the ionizer and clean the emit- ters. · Check regularly if the product is operating with undetected failures or not.
  • Page 16: Safety Instructions

    These safety instructions are intended to prevent hazardous situations and/or Safety Instructions equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for ∗1) safety and must be followed in addition to International Standards (ISO/IEC) and other safety regulations.
