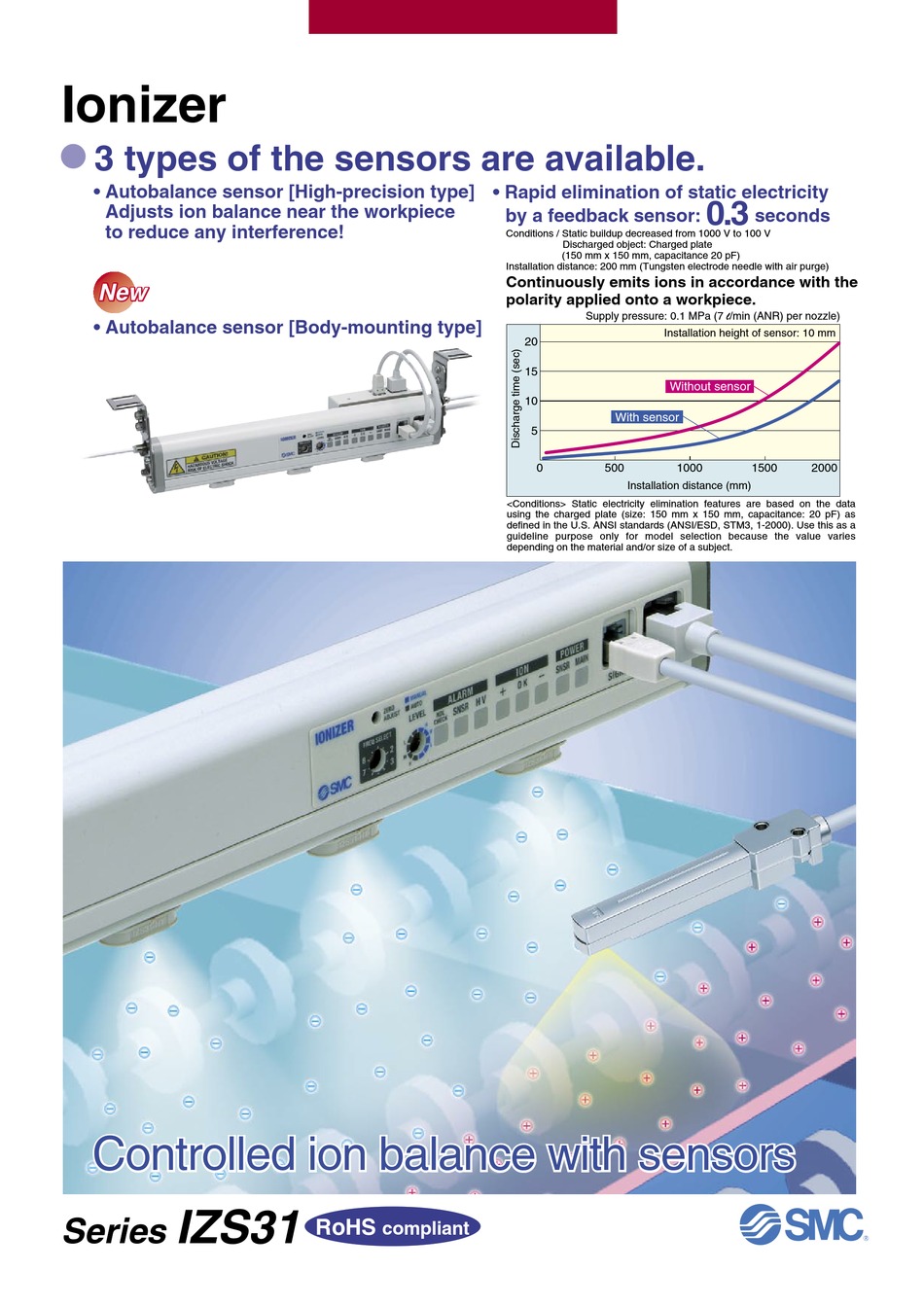

SMC Networks IZS31 Series Manual

Ionizer
3 types of the sensors are available.

• Autobalance sensor [High-precision type]
Adjusts ion balance near the workpiece
to reduce any interference!
New New
• Autobalance sensor [Body-mounting type]
Controlled ion balance with sensors Controlled ion balance with sensors
IZS31
Series
RoHS
compliant
• Rapid elimination of static electricity
by a feedback sensor:
Conditions / Static buildup decreased from 1000 V to 100 V
Discharged object: Charged plate
(150 mm x 150 mm, capacitance 20 pF)
Installation distance: 200 mm (Tungsten electrode needle with air purge)
Continuously emits ions in accordance with the
polarity applied onto a workpiece.
Supply pressure: 0.1 MPa (7 l/min (ANR) per nozzle)
Installation height of sensor: 10 mm
20
15
10
With sensor
5
0 500
Installation distance (mm)
<Conditions> Static electricity elimination features are based on the data
using the charged plate (size: 150 mm x 150 mm, capacitance: 20 pF) as
defined in the U.S. ANSI standards (ANSI/ESD, STM3, 1-2000). Use this as a
guideline purpose only for model selection because the value varies
depending on the material and/or size of a subject.
0.3
seconds
Without sensor
1000 1500 2000
