IC-68 INSTALLATION GUIDE
ND

6. Connection Procedure

6.1 General Wiring Diagram

Since the IC-68 is a configurable control, the specific wiring diagram comes with the User's
ND
Guide particular to this installation.

6.2 Detailed Wiring Diagrams

6.2.1 Typical Sensor Wiring for Probes

The inside temperature sensor should be located in the area which gives the most accurate
temperature reading to achieve optimum ventilation. It must be located in an area protected
from operating machinery, animal or personnel manipulation or anything that could damage the
sensor. See also "3. General installation guidelines".
If it is an outside temperature sensor, it must be installed in a location which is not influenced by
heat generated by the building or direct sunlight.

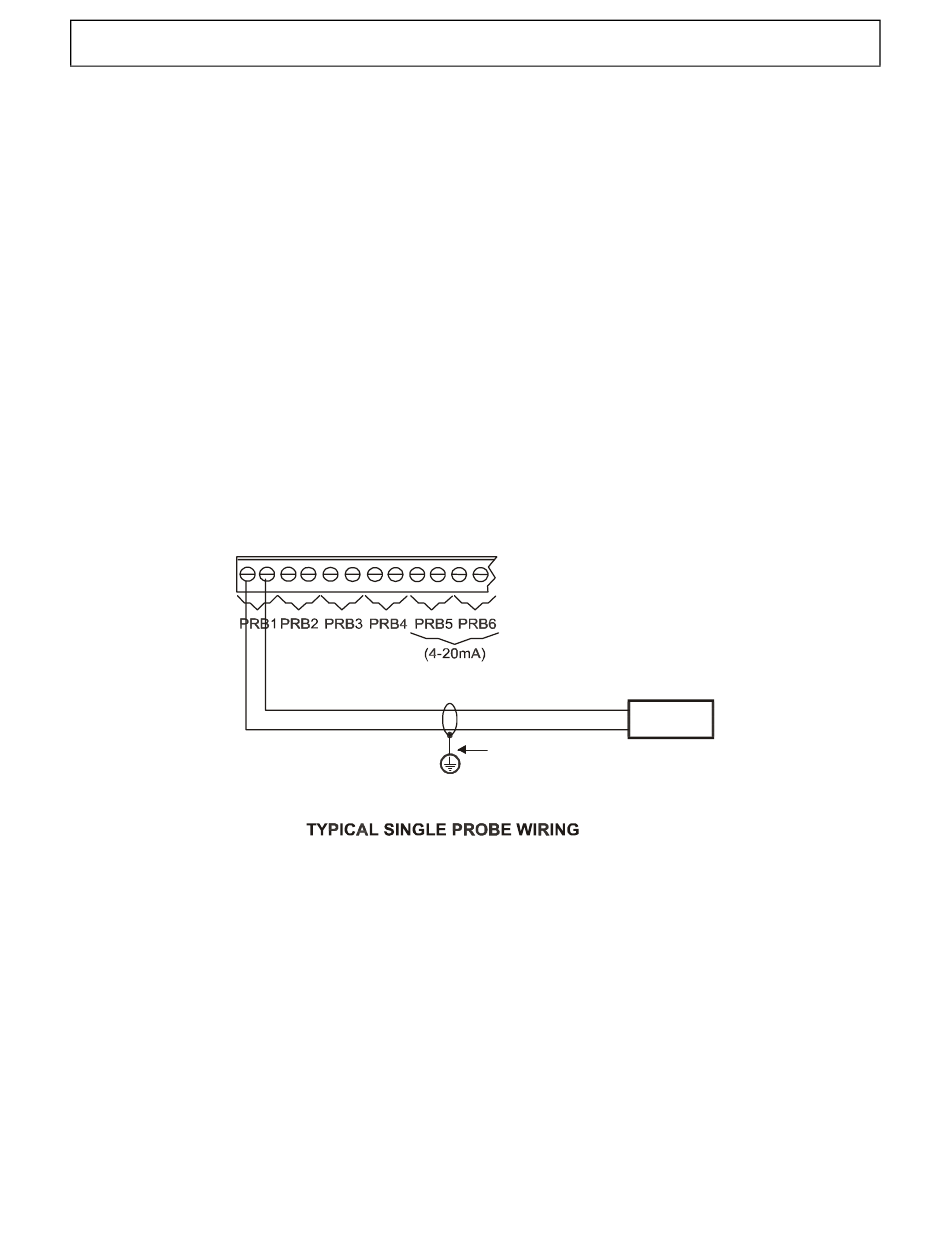

FIGURE NO. 4 Typical Temperature Probe Wiring

PROBE
SHIELD
8
