4. Mounting

• Use a screwdriver to remove the 4 screws from the top of the faceplate and the 2 screws on
the access panel.
• Open both faceplates.
• Install mounting screw on wall and hang the unit in place by sliding the rear mounting hole of
the IC-68
over the screw (see figure 1).
ND
• Install two more screws to secure the IC-68

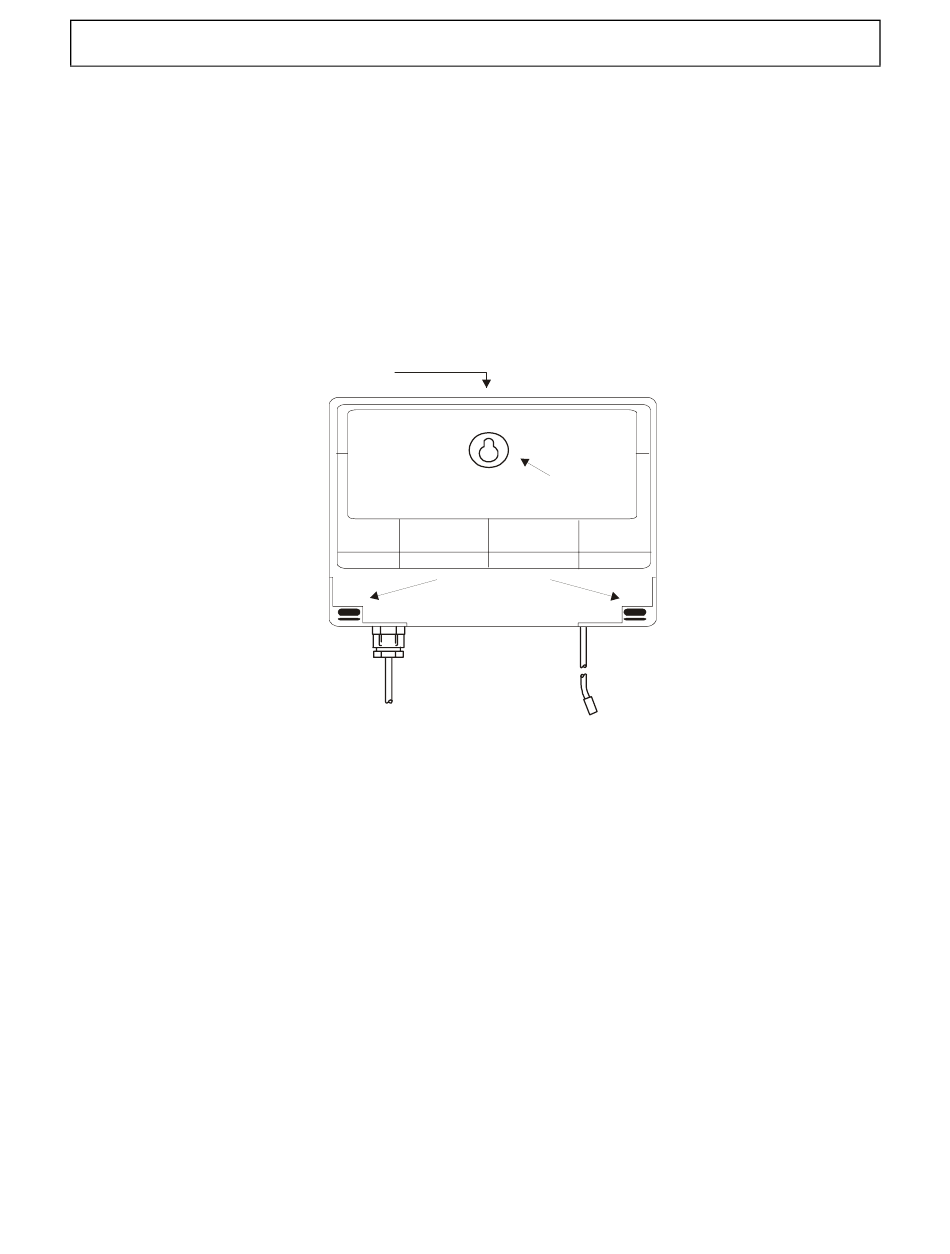

FIGURE NO. 1 Mounting Position and Devices

IC-68 INSTALLATION GUIDE
ND
REAR VIEW
This side up
MOUNTING HOLES
Screw Sizes:
Top mounting hole :
Bottom mounting holes:
www.monitrol.com
in place using the bottom mounting holes.
ND
TOP MOUNTING
HOLE
BOTTOM
#8 X 1"
#6 X 1"
