6.2.3 Typical Thermostat Backup Wiring
If the Intelligent Control or a module fails, the backup thermostats will activate the dedicated fan
or heater as soon as temperature reaches the set point of the thermostat. The thermostat must
be accessible for adjustment and must be set at 3 to 5 degrees above the fan's relative set point
or 3 to 5 degrees under the heater relative set point.

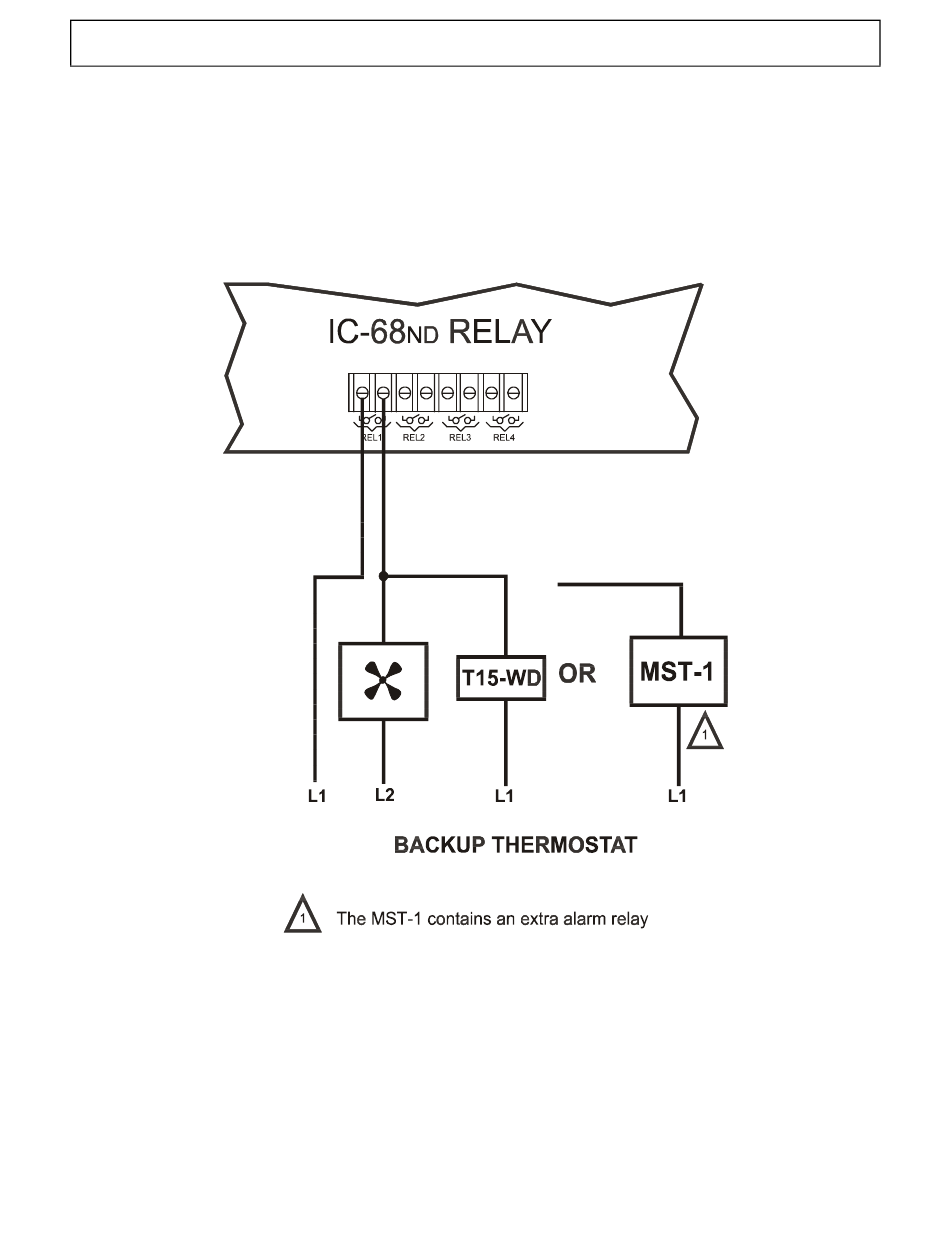

FIGURE NO. 6 Typical Thermostat Backup Wiring on ON/OFF stage
