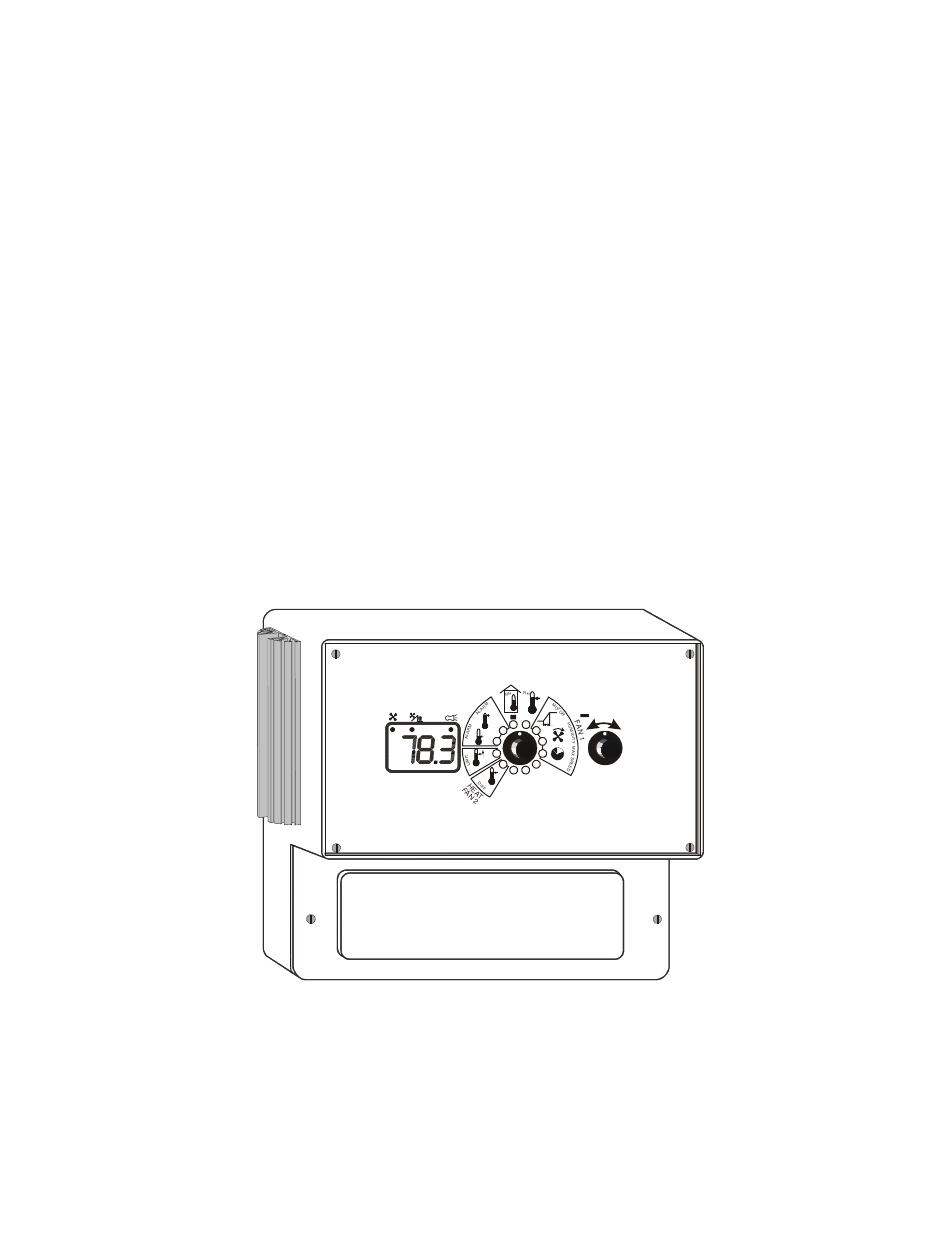

- Page 1 ECS-2M USER’S MANUAL ENVIRONMENT CONTROL SYSTEM 2 stages computer compatible DIFF MIN SPEED reduc. per day TIMER ADJUST Varifan ® ECS-2M www.monitrol.com...
- Page 2 ECS 2M Although the manufacturer has made every effort to ensure the accuracy of the information contained herein, this document is subject to change without notice due to ongoing product development. WARNINGS AND PRECAUTIONS Equipment, probe failure, blown fuses and/or tripped breakers may prove harmful to the contents of the building.
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER 1 - INTRODUCTION General ................5 Description ...............5 Definition of terms .................7 CHAPTER 2 - INSTALLATION Unpacking ................9 Mounting ................10 Switch Settings ..............10 2.3.1 Line Voltage Selector Switch ..........10 2.3.2 Software Settings Switch ..........11 Connection Procedure ............11 2.4.1 Input Power ..............11 2.4.1.1 115 VAC ................11... - Page 4 ECS 2M CONTENTS CONTINUED... Reduction per Day ............28 Record Low Temperature ..........29 Record High Temperature ..........30 Room Temperature Display ........... 31 SECONDARY FUNCTIONS Relative Humidity Set Point ..........32 Fan 1 Motor ..............33 Fan 1 Minimum Humidity Speed ........34 Fan 1 Period ..............
-
Page 5: Chapter 1 - Introduction
CHAPTER 1 - INTRODUCTION 1. GENERAL This document provides a description of the ECS-2M control panel. It is organized as follows: • Introduction • Installation • User’s Guide • Appendix 1.1 DESCRIPTION Congratulations on the purchase of your ECS-2M environmental control system. The ECS-M product... - Page 6 The second stage controls either a heater for colder climates, or a second fan where further cooling is required. The ECS-2M provides you with full control of two stages via the use of an easy to follow display panel. All programmable features can be customized to meet your requirements.
-
Page 7: Definition Of Terms
DEFINITION OF TERMS MAIN SET POINT The desired room temperature. Other temperature settings on the ECS-2M are relative to the main set point temperature. RELATIVE TEMPERATURE A value added to, or subtracted from the main set point which results in a new temperature at which a desired action starts or stops. - Page 8 ECS 2M Page 8 www.monitrol.com...
-
Page 9: Chapter 2 - Installation
CHAPTER 2 - INSTALLATION Chapter 2 describes the installation of the ECS-2M control panel. The manufacturer recommends that the following installation instructions be adhered to as closely as possible, and all work be performed by a certified electrician. Failure to do so may void the warranty! 2.1 UNPACKING... -
Page 10: Mounting
Make sure the unit is mounted right side up, with the cable entry holes facing down. The ECS-2M will operate in a temperature range of 32°F - 120 °F (0 °C - 50 °C). * It is prohibited to use overhead cables outside the building. -
Page 11: Software Settings Switch
CHAPTER 2 - INSTALLATION 2.3.2 - Software Settings Switch This switch is located behind the control panel faceplate and adjusts the following options. Fahrenheit Celsius Settings locked Setting unlocked Stage 2 = Heat Stage 2 = Fan Not used Relative Humidity Switch 1 Selects between a Fahrenheit or Celsius display on the front panel. -
Page 12: 230 Vac
7 on the main board. 2.4.2 - Fan 1 (terminals 3 and 4) Stage 1 of the ECS-2M controls the operation of the primary fan. Connect the two leads from Fan 1 to terminals 3 and 4 on the main (bottom) board. -
Page 13: Single Temperature Probe
Make normally open or normally closed connections as indicated in Figure 4 Momentary power interruptions may trigger false alarms! To avoid false alarming when the ECS-2M is connected to an alarm system, install a time delay relay between the ECS-2M and the alarm system. -
Page 14: Powering Up
ECS 2M 2.7 POWERING UP Before powering up the ECS-2M, attach the faceplate to the casing of the control panel using the six screws previously removed. Set Selector knob to position (12). Upon power up, the unit will test it’s display by briefly lighting all the segments of its LED. - Page 15 CHAPTER 2 - INSTALLATION Fig. 2 Two Fans (230V) Fig. 3 One Fan (230V) and One Heating Unit (115V) Page 15 www.monitrol.com...
- Page 16 ECS 2M Notes for Figures 1, 2 and 3 Power cut and protection devices in case of overload. Only use fans that have thermal protection devices. Terminals 4 and 5 are internally connected. Connect the grounding wire to the ground terminal 7. Should be on a different circuit from the ECS.
- Page 17 CHAPTER 2 - INSTALLATION Fig. 5 Temperature Averaging Probe Connection Fig. 6 Main Board: Terminal Blocks, Switches, Fuses and Ground Page 17 www.monitrol.com...
- Page 18 ALARM CIRCUIT. In regular circumstances, the alarm circuit of the Varifan Control is a short circuit. But if the Varifan control is defective or if there is no power applied to it, then the alarm circuit of the control will be an open circuit.
- Page 19 CHAPTER 2 - INSTALLATION Fig 7. Recommended control backup Page 19 www.monitrol.com...
-
Page 20: Chapter 3 - User's Guide
ECS 2M 3.0 USER’ GUIDE The ECS-2M front panel shown next features a LED status window control dials which respectively used to select a function and adjust a setting. LED STATUS WINDOW The LED status window features a 3 digit LED readout for the display of temperature in Fahrenheit or Celsius, humidity level, and programmable settings. - Page 21 CHAPTER 3 - USER’S GUIDE Page 21 www.monitrol.com...
-
Page 22: Reduction Per Day
ECS 2M The 9 primary functions are: • 1 Main set point temperature • 2 Fan 1 modulation band • 3 Fan 1 minimum speed • 4 Fan 1 duty cycle timer • 8 Fan 2/Heater relative temperature set point •... -
Page 23: Main Set Point Temperature
CHAPTER 3 - USER’S GUIDE PRIMARY FUNCTIONS MAIN SET POINT The main set point establishes the target temperature in the building. This value is used as the reference point for other settings. The main set point temperature is adjusted in 0.5 degree increments from a minimum setting of 13.5°F (-9.5°C) to a maximum setting of 105.0°... -
Page 24: Fan 1 Modulation Band
ECS 2M FAN 1 MOD. BAND The Fan 1 modulation band setting establishes the temperature at which Fan 1 reaches maximum speed. The value is a temperature difference from the main set point. The Fan 1 modulation band is adjusted in 0.5 degree increments from a minimum setting of 2.0°F (1.0°C) to a maximum setting of 18.0°F (10.0°C). -
Page 25: Fan 1 Minimum Speed
CHAPTER 3 - USER’S GUIDE FAN 1 MIN SPEED This function sets the minimum speed of Fan 1 when room temperature is below the main set point. This value is entered as a percentage of fan maximum speed. The Fan 1 minimum speed is adjusted in 2% increments from a minimum setting of 12% to a maximum setting of 100%. -
Page 26: Fan 1 Duty Cycle
ECS 2M FAN 1 DUTY CYCLE As long as the actual temperature is below the main set point, Fan 1 operates at the minimum speed set by Fan 1 Minimum Speed (primary function 3). The Fan 1 duty cycle sets the percentage of time the fan is ON versus the percentage of time the fan is OFF. -
Page 27: Heater/Fan 2 Relative Set Point
CHAPTER 3 - USER’S GUIDE HEAT / FAN 2 REL. The Heater/Fan 2 relative set point is the relative temperature at which Heater/Fan 2 begins to operate. This value is the temperature difference from the main set point. When a heater is being controlled, the relative set point is below the main set point. - Page 28 ECS 2M REDUCT. PER DAY The reduction per day function automatically reduces the main set point by the set amount every 24 hours. The reduction setting is adjusted in 0.01 degree increments from a minimum setting of OFF, -0.01°F (- 0.01°C) to a maximum setting of -0.99°F (-0.50°C) The main set point must be greater than the limit.
- Page 29 CHAPTER 3 - USER’S GUIDE LOW TEMP. This function displays the lowest recorded temperature since the last clear. The record low temperature is rounded to the nearest 0.5 degree from a minimum display of 13.5°F (-10.0°C) to a maximum display of 105.0°F (40.5°C). If a temperature lower than 13.5°F is recorded, Lo is displayed.
- Page 30 ECS 2M HI TEMP. This function displays highest recorded temperature since the last clear. The record high temperature is rounded to the nearest 0.5 degree from a minimum display of 13.5°F (-10.0°C) to a maximum display of 105.0°F (40.5°C). If a temperature higher than 105.0°F is recorded, Hi is displayed.
- Page 31 CHAPTER 3 - USER’S GUIDE ROOM TEMP This function displays the room temperature. The Selector dial should normally be left at this position. The room temperature is displayed to the nearest 0.5 degree from a minimum display of 13.5°F (-10.0°C) to a maximum display of 105.0°F (41.0°C).
-
Page 32: Secondary Functions
ECS 2M SECONDARY FUNCTIONS REL. HUMIDITY SP If the ECS is equipped with an optional humidity sensor, this setting regulates the humidity level of the room. The humidity setting affects the operation of Fan 1 only. When the humidity level of the room exceeds the relative humidity setting, Fan 1 runs at a new minimum speed set by secondary function (3). - Page 33 CHAPTER 3 - USER’S GUIDE FAN 1 MOTOR The Fan 1 motor compatibility setting adjusts the ECS- 2M outputs to the electrical characteristics of the fan motor. Eight choices are available. Choice 1 is suited for most fans. If your motor is not listed in the compatibility table in the Appendix, try all choices and take the one that give the best performance with your fan.
- Page 34 ECS 2M FAN 1 MIN. HUM. This function establishes the minimum speed of Fan 1 when the relative humidity level of the room exceeds the relative humidity setting. The speed setting for humidity must be configured higher than the speed setting for temperature.
- Page 35 CHAPTER 3 - USER’S GUIDE FAN 1 PERIOD This function sets the maximum speed of Fan 1 when room temperature is higher the main set point. This value is entered as a percentage of maximum speed. Fan 1 maximum speed is adjusted in 2% increments from a minimum of 60% to a maximum of 100%.
- Page 36 ECS 2M HEAT/FAN 2 DIFF. In order to minimize erratic behavior of Heater/Fan 2 when room temperature is exactly at the relative set point, the differential setting separates this ON/OFF threshold into two: one ON threshold and one OFF. This feature greatly reduces equipment wear. temperature difference between...
- Page 37 CHAPTER 3 - USER’S GUIDE MINIMUM RAMPING Minimum ramping is the lowest value that the ramping function can adjust the main set point to. This is a security feature. The minimum ramping setting is adjusted in 0.5 degree increments from a minimum setting of 13.5°F (-9.5°C) to a maximum setting of 105.0°F (41.0°C).
- Page 38 ECS 2M LO TEMP. ALARM This function establishes the temperature difference below the main set point that the room can reach before a low temperature alarm is signalled. When a low temperature alarm occurs, an alarm contact is activated and the alarm LED lights up on the front panel.
- Page 39 CHAPTER 3 - USER’S GUIDE HI TEMP ALARM This function establishes the temperature difference above the main set point that the room can reach before a high temperature alarm is signalled. When a high temperature alarm occurs an alarm contact is acti- vated and the alarm LED lights up on the front panel.
-
Page 40: Relative Humidity Display
ECS 2M RELATIVE HUMIDITY This function displays the relative humidity of the room. Relative humidity is displayed in 1% increments from a minimum display of 30% to a maximum display of 90%. If a humidity level lower than 30% is monitored, F2 is displayed. -
Page 41: Appendix
APPENDIX Page 41 www.monitrol.com... - Page 42 ECS 2M Page 42 www.monitrol.com...
-
Page 43: Motor Compatibility Table
APPENDIX MOTOR COMPATIBILITY CURVE BRAND MODEL VOLT SIZE Multifan 4E40 230 v. 16” Multifan 2E20 8” Multifan 4E35 230 v 14” Multifan 4E40 115 v. 16” Multifan 4E40 230 v. 16” Multifan 4E45 115 v. 18” Multifan 4E45 230 v 18”... -
Page 44: Troubleshooting
ECS 2M TROUBLESHOOTING SYMPTOM CAUSE and REMEDY − Lo is ° Temperature is below minimum (13.5 continually ° or -10.0 displayed − Probe is disconnected or defective. − Hi is Temperature above maximum continually (105.0°F or 41°C). displayed − Probe is short circuited. −... -
Page 45: Specification
APPENDIX SPECIFICATION DESCRIPTION VALUE − INPUT POWER 12 AMPs − 115/230 -20%, +10% VAC − 50 / 60 Hz − STAGE 1 (variable speed) 10 AMP; inductive 115V / 230V − Fuse 15A − STAGE 2 (dry relay 10 AMP ; 115V/230V contact) −... -
Page 46: Record Form
ECS 2M RECORD FORM Dial Option Default setting User setting Main Set Point Temperature 77°F 25°C Fan 1 Modulation Band 4°F 2°C Fan 1 Min Speed Fan 1 Duty Cycle Timer Heater/Fan 3 Relative Temp. -3°F -1°C Reduction per day 2nd Function Relative Humidity Set Point Fan 1 Motor Compatibility... - Page 47 WARRANTY LIMITED WARRANTY The manufacturered equipment and supplied components have undergone rigorous inspection to assure optimal quality and reliability of product. Individual controls are factory tested under load, however the possibility of equipment failure and/or malfunction may still exist. For service, contact your local distributor or supplier. The warranty period shall be for two years from manufacturing date.
