IC-664 INSTALLATION GUIDE
6. Connection Procedure
6.1 General Wiring Diagram
Since the IC-664 is a configurable control, the general wiring diagram comes with the User's
Guide particular to this installation.
6.2 Detailed Wiring Diagrams
6.2.1 Typical Sensor Wiring for Probes
The inside temperature sensor should be located in the area which gives the most accurate
temperature reading to achieve optimum ventilation. It must be located in an area protected
from operating machinery, animal bites, personnel or anything that could damage the sensor.
See also "3. General information guidelines".
If it is an outside temperature sensor, it must be installed in a location which is not influenced by
heat generated by the building or direct sunlight.

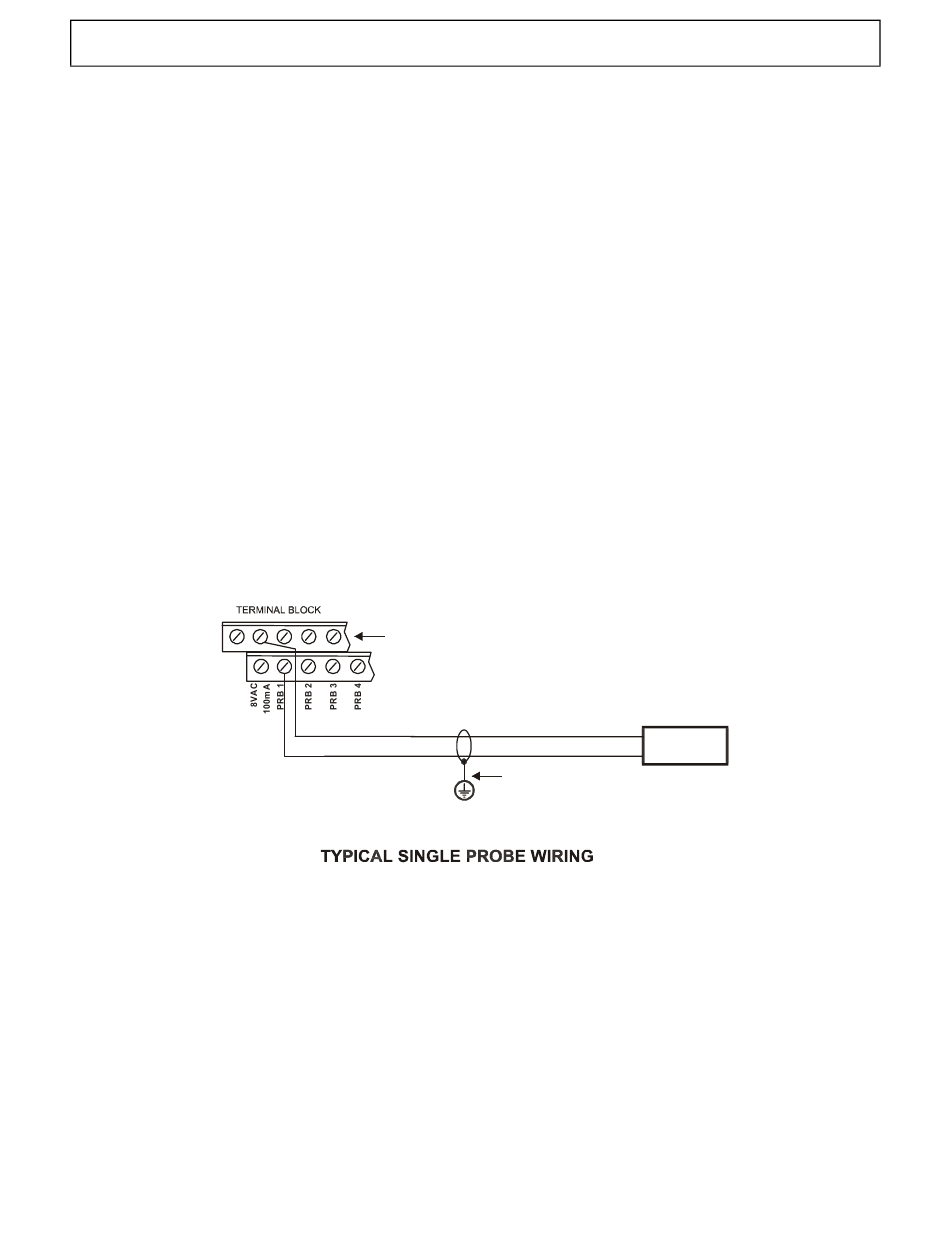

FIGURE NO. 4 Typical Temperature Probe Wiring
