3.3 Standard Delivery
1 EASY view+ 3D head with power supply unit and power cord
1 Support arm with cable and base with universal clamp
1 HDMI-HDMI cable (no illustration)
1 Monitor with power supply unit and power cord (only for item no� 2400�3000 EASY view+ 3D)
1 3D glasses
1 USB memory stick
1 Mouse
1 Foot switch
1 Desk pad
1 HDMI Video Capture (no illustration)
1 Quick Start Guide
3.4 Accessories
2200 0420 Stand with screw clamp
2200 0410 Stand with universal clamp
2400 0501 EASY view 3D Converter 3D/2D
2400 0502 EASY view 3D HDMI-Video-Recorder
2400 0503 EASY view 3D HDMI-Splitter
2400 0504 EASY view 3D HDMI-Video-Recorder with multi voltage power adapter
2400 0505 EASY view 3D HDMI-Splitter with multi voltage power adapter
2400 0506 EASY view 3D Converter 3D/2D with multi voltage power adapter
2400 2101 EASYbooth case large
9000 37809 3D glasses
9000 37901 EASY view 3D Headset HDMI-Recorder (only in use with 2400 0502 / 2400 0504)
2410 0000 Renfert CONNECT stick
4

Commissioning

4.1 Unpacking
⇒ Remove the device and accessories from the shipping box�
⇒ Check the delivery for completeness (compare with the scope of delivery)�
4.2 Mounting the monitor stand
Only for item no� 2400 3000�
⇒ Place a soft pad on a flat surface.
⇒ Place the monitor with the screen on it�
⇒ Remove the protective film from the stand.
⇒ Attach the supplied stand to the monitor support�
4.3 Setup
Select a workspace with sufficient lighting for the installation of the
EASY view+ 3D system� If neon lighting is used, it may be neces-
sary to reduce the lighting. Reflections of extraneous light on the
object may result in interference�
⇒ Place the desk pad (12, Fig� 1) on the work table�
The surface structure and color of the desk pad have been
selected to reduce irritation to the eye, which could occur
with a surface with structure.
- 7 -
en

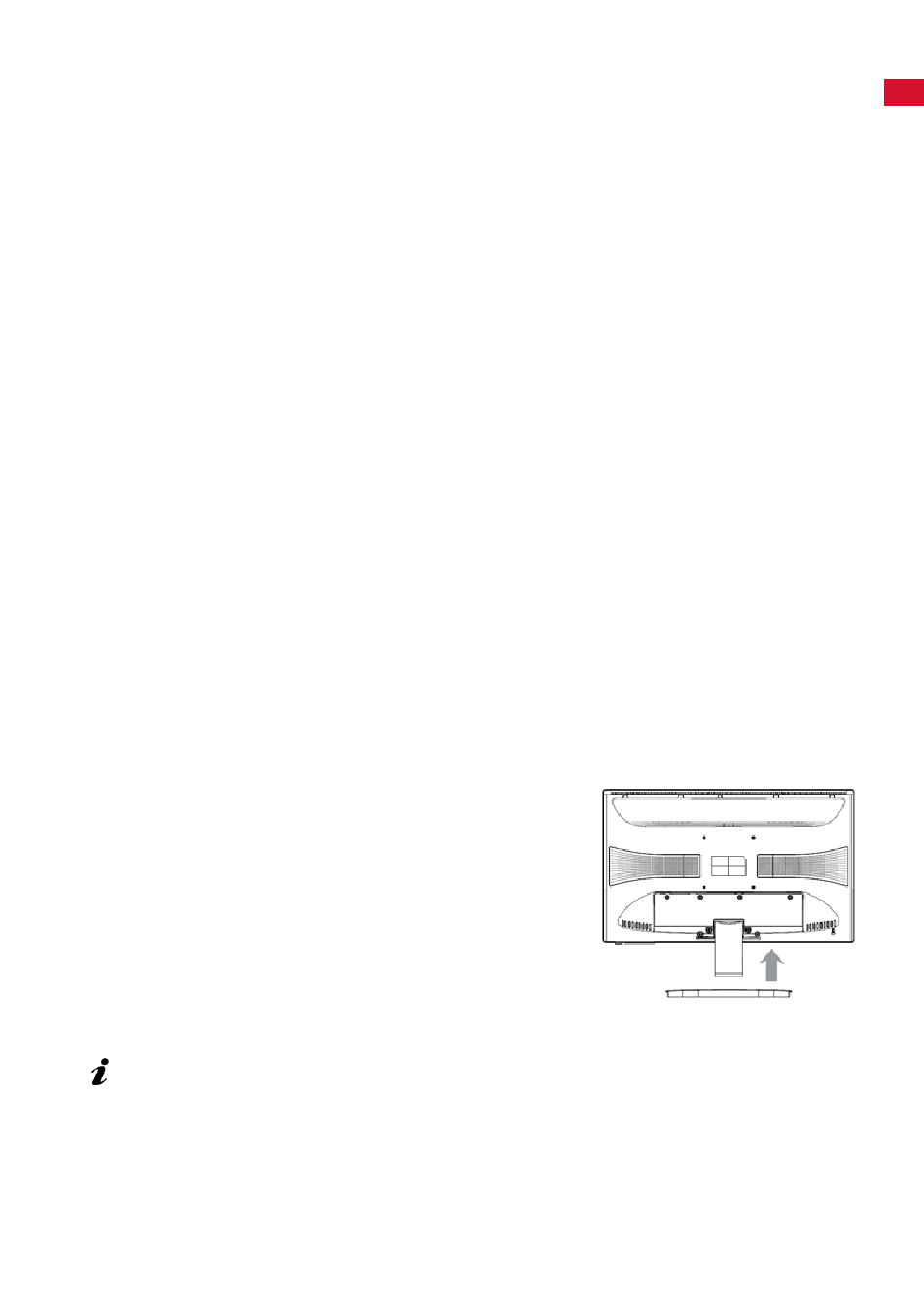

Fig. 3
