5.5 System settings
The current settings of the system are displayed on the monitor at the bottom left�
As soon as the mouse is moved, the monitor displays the available settings and with which element of the
mouse the setting can be changed�

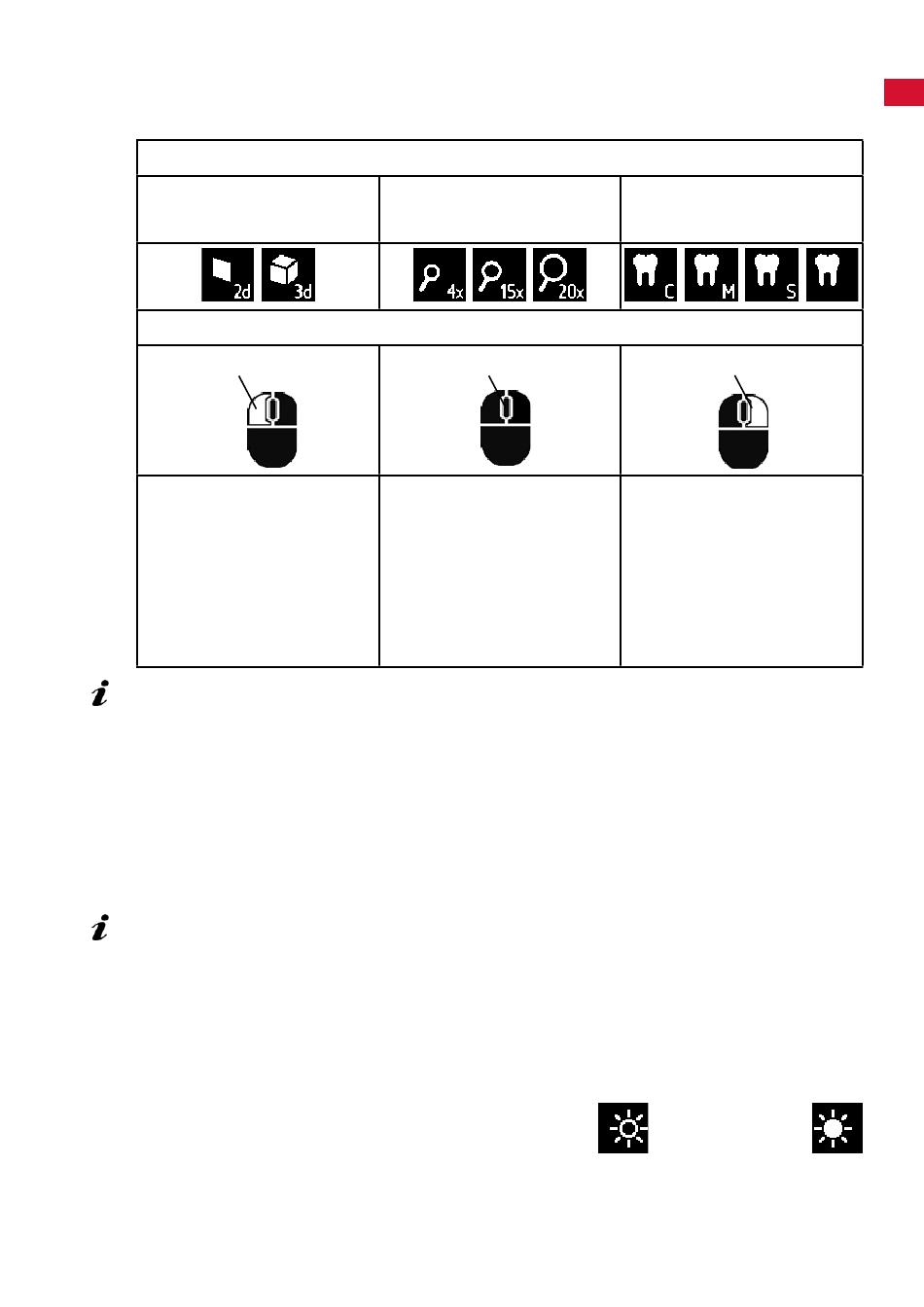

2D/3D representation
A
⇒ Left mouse button (A)
♦ Switch between 2D and 3D
display
4 x magnification provides a wider field of view and greater depth of field. This mode allows the
visualization of a complete dental arch and is particularly suitable for documentation.
However, a 3D display is NOT possible.
In addition, the current IP address and the host name of the EASY view+ 3D head are displayed (see
Chapter 5�6�3)�
5.5.1 Object modes – adjusting the brightness of the image
The object modes are customized for different materials of the respective objects:
• S:
• C:
• M:
• Neutral (especially for delicate, detailed areas and transitions in crowns and bridges)
For the object modes S, C, M, image processing is performed internally, improving the image
quality with respect to reflections and color reproduction.
Different parameters are stored for each object mode, including the individual image brightness. This can
be changed�
To do so:
⇒ Select the object mode to be modified (see Chapter 5.5).
⇒ Press the mouse wheel (B)�
♦ A setting bar appears, where the current image brightness is displayed�
⇒ Turn the mouse wheel to change the brightness�
♦ Darker ●
♦ The "zero position" corresponds to the factory setting�
Magnification
(4x, 15x, 20x)
Changing the system settings
⇒ Mouse wheel (B) rotation
forward / backward
♦ Switch of magnification be-
tween 4x, 15x and 20x
⇒ Press / rotate the mouse
wheel (B)
♦ Adjust the brightness of an
object mode (see Chap-
ter 5�5�1)�
Standard (for example, when working with dentures, waxes, etc�)
Ceramic
Metal
● ● Brighter
System settings
B
- 11 -
Object mode (ceramic, metal,
standard, neutral), see Chap-
ter 5�5�1�
C
⇒ Right mouse button (C)
♦ Switch object modes
● ● ●
