Product description

en
3.1 General description
The EASY view+ 3D system consists of a head with two cameras, lighting and the image processing unit,
as well as a 3D-capable monitor including 3D glasses
For easy operation, the head is mounted on an adjustable support arm�
The product contains light sources of energy efficiency class F.

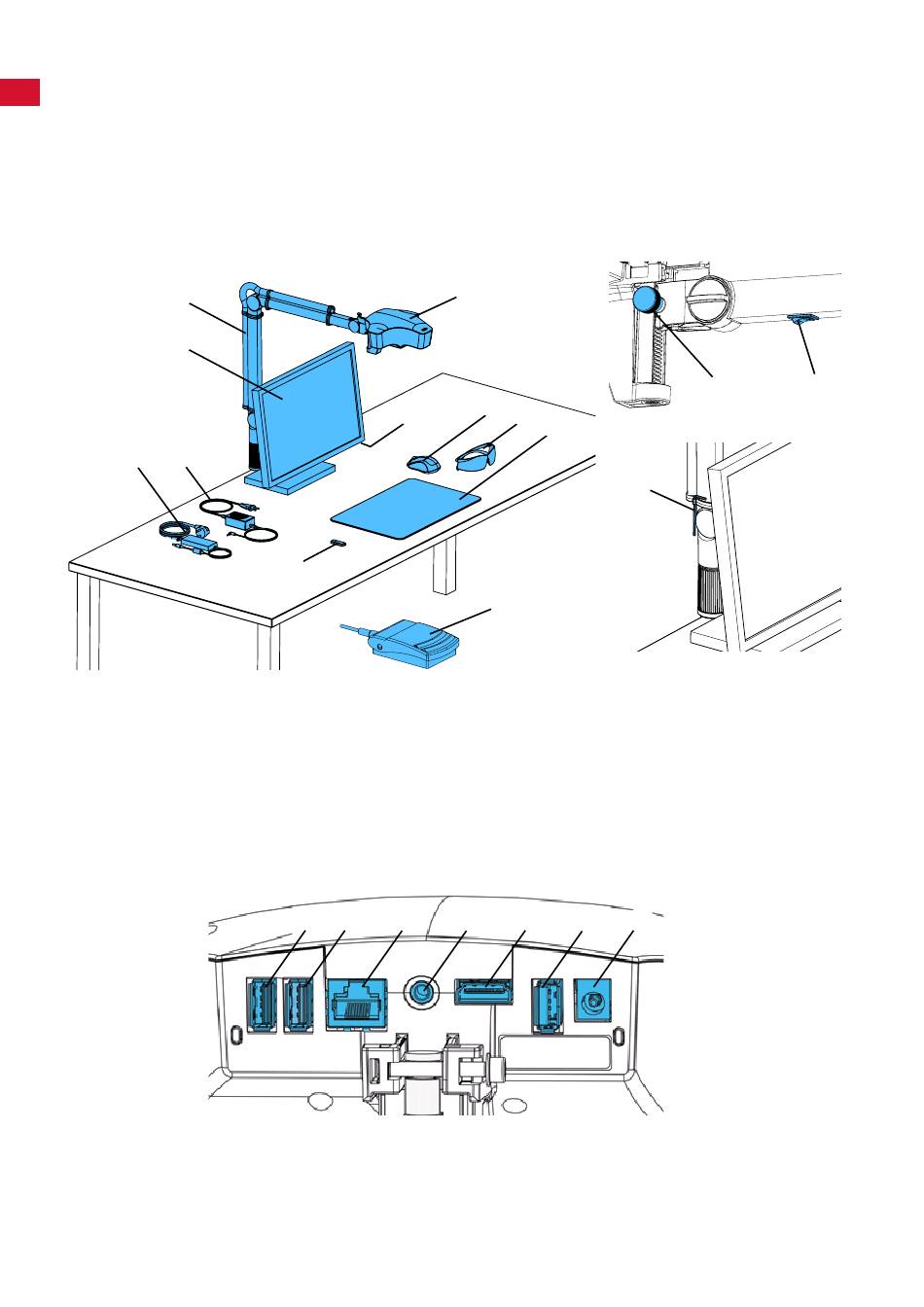

3.2 Assemblies and functional elements
2
3
5 4
1 Head
2 Support arm with base
3 Monitor
4 EASY view 3D power supply
5 Monitor power supply
6 Height adjustment (focus)
7 EASY view+ 3D power switch
Connections
20 Power supply
21 HDMI output
22 USB port for USB memory stick
23 Foot switch
8
14
22 24 25
- 6 -
1
11
13
12
9
10
8
Monitor power switch
9 Tool for clamping force adjustment (Allen key)
10 Foot switch
11 Mouse
12 Desk pad
13 3D glasses
14 USB memory stick
23 21 26 20
Fig. 2
24 USB port for mouse
25 Network
26 Renfert CONNECT interface
6 7
Fig. 1
