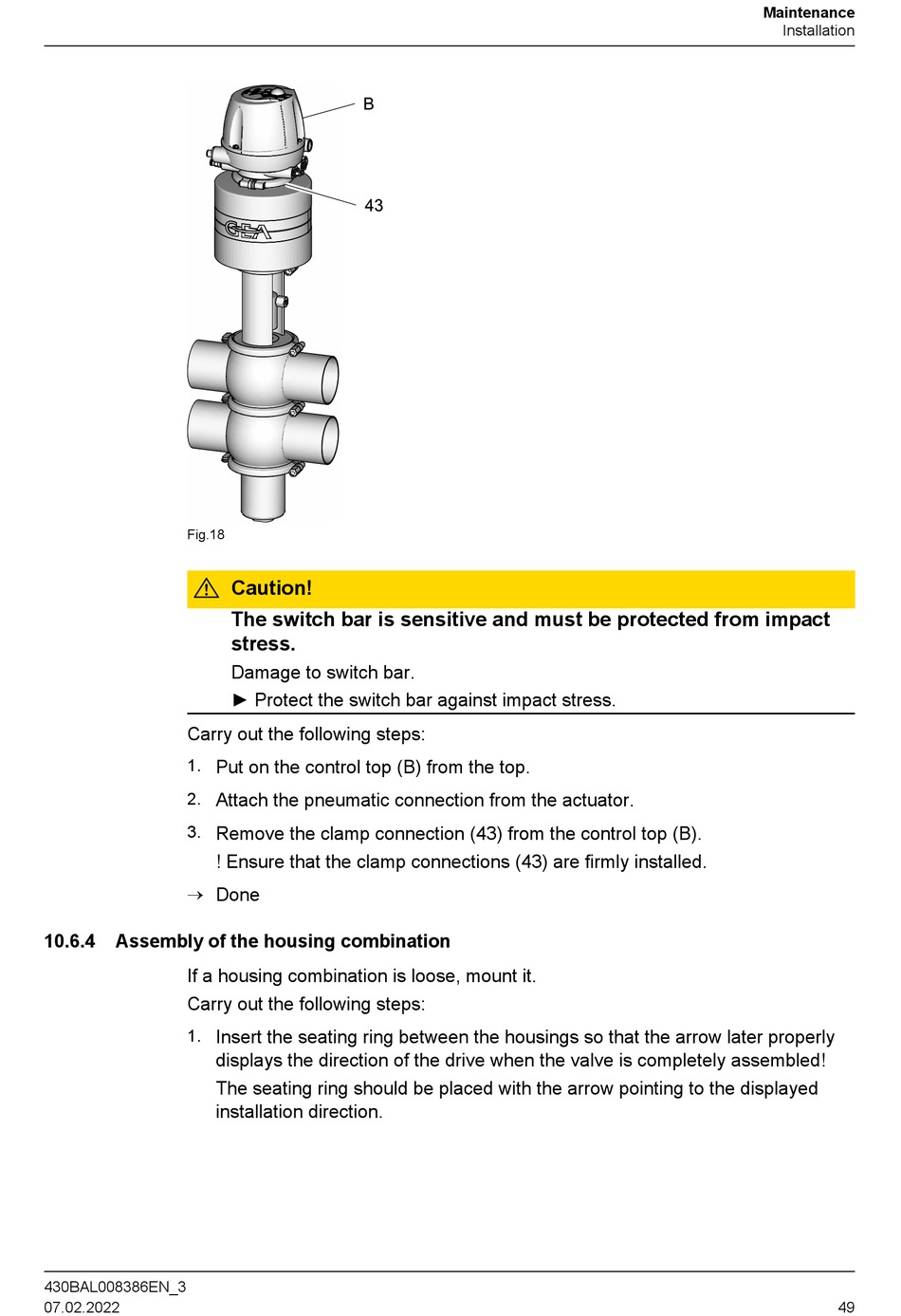

Fig.18
Carry out the following steps:
1.
2.
3.
®
10.6.4

Assembly of the housing combination

If a housing combination is loose, mount it.
Carry out the following steps:
1.
430BAL008386EN_3
07.02.2022
Caution!
The switch bar is sensitive and must be protected from impact
stress.
Damage to switch bar.
► Protect the switch bar against impact stress.
Put on the control top (B) from the top.
Attach the pneumatic connection from the actuator.
Remove the clamp connection (43) from the control top (B).
! Ensure that the clamp connections (43) are firmly installed.
Done
Insert the seating ring between the housings so that the arrow later properly
displays the direction of the drive when the valve is completely assembled!
The seating ring should be placed with the arrow pointing to the displayed
installation direction.
Maintenance
Installation
49
