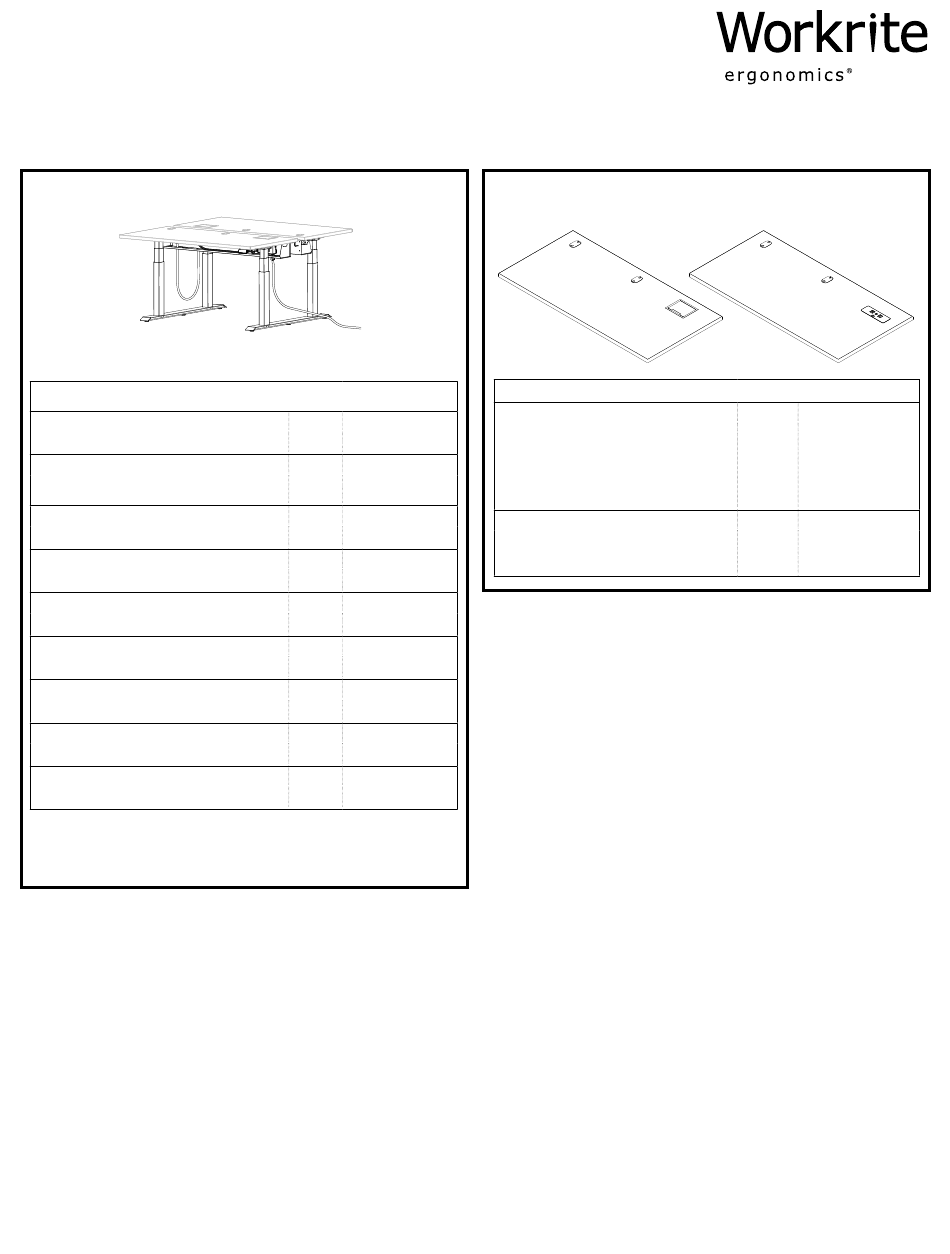

Assembly & Installation Instructions: Fundamentals Benching System FDEX 60-B02-WP; FDLX 60-B02-WP; FDEX 72-B02-WP; FDLX 72-B02-WP Parts Included, Benching System Parts Required, Ordered Separately Worksurfaces Grommet Kits Fundamentals Benching System Quantity Parts List Quantity Two Stations Parts List Two Stations Included...
Page 2
ACC-PWR-REMNT-X or ACC-PWR-INMNT-X Grommets Back to Back Connect Back to Back Cable Page 16 Cable ACC-PWR-JBBCBL-54-B Connect Power Page 16 ACC-PWR-IN-HDWR-B Adjust Glides Page 17 Power In Feed Initialize Legs Page 17 2 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
Page 3
Frame Assembly Parts: Fundamentals Benching System FDEX 60-B02-WP; FDLX 60-B02-WP; FDEX 72-B02-WP; FDLX 72-B02-WP Parts Included Control Leg Companion Short Bracket Short Power Cord (Right) Leg (Left) Qty: 4 Qty: 4 Qty: 2 Qty: 2 Left End Bracket Cable Spool...
Page 4
Loading should be evenly distributed over table surfaces. “Payload Capacity” is the Workrite Ergonomics recommended maximum loading which includes the Workrite sourced worksurface.
Page 5
6" long or drill/driver with extension 3/ 8 " wrench if needed for Hex Nut If you do not have a Workrite worksurface, you will also need: +6" ⅛" pilot drill bit 3/32" pilot drill bit Workrite Ergonomics | 800.959.9675 www.workriteergo.com 5 of 18...
Page 6
#M6 × 14 mm Flat Head To avoid stripping the threads, always Cap Screw insert and make the first few turns of the screw BY HAND with an Allen wrench (H), ensuring it is in straight. 6 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
Page 7
5 screws per Long Bracket (E) 4 screws per End Bracket (C & D) Control Leg (Right) Companion Leg (Left) Hardware at actual size #12 × ¾" Pan Head Laminate Top Screw Workrite Ergonomics | 800.959.9675 www.workriteergo.com 7 of 18...
Page 8
4.2 Route Switch Cable from switch to Cable Spool. Install P-Loops (M) using (1) #8 x 5/8” Pan Head Screw (L) per loop Programmable Control shown Hardware at actual size Hardware at actual size #12 × ¾" Pan Head #8 × ⅝" Pan Head Screw Laminate Top Screw Laminate Top Screw 8 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
Page 9
5.5 Use remaining P-Loops (M) and #8 x 5/8” Pan Head Screws(L) to neatly attach remaining loose cables to top Control Cable Control Leg (Right) Leg Cable Power Cable Companion Leg (Left) Control Cable Hardware at actual size #8 × ⅝" Pan Head Screw Laminate Top Screw Wrap extra cables clockwise Workrite Ergonomics | 800.959.9675 www.workriteergo.com 9 of 18...
Page 11
7.2 Attach Cross Cable to top with (2) Cable Loops and (2) #8 x ¾” Phillips Head Screws (L) Hardware at actual size #8 × ⅝" Pan Head Screw Laminate Top Screw Workrite Ergonomics | 800.959.9675 www.workriteergo.com 11 of 18...
Page 12
Note: Connectors are color coded to align connection properly Note: There is no cross cable connection in the last station of the Bench System Repeat for each additional station in the Bench System 12 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com #1500354 Rev B...
Page 13
10.2 Attach Cable Trough Assembly to Top with (8) #12 x ¾” Access hole Pan Head Screws (G) as shown Repeat as required for additional stations in your Benching System 10.1 10.2 10.1 Workrite Ergonomics | 800.959.9675 www.workriteergo.com 13 of 18...
Page 14
11.5 Using at least two persons carefully turn base assemblies upright from side end of table Caution! Heavy! DO NOT TURN THE TABLE OVER FROM THE FRONT EDGE OF THE TOP OR YOU WILL DAMAGE THE PROGRAMMABLE SWITCH 14 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
Page 15
13.2 For Recessed Power place large rectangular Grommet Cover into Top 13.3 Secure rectangle grommet cover in place 13.2 with (2) #6 x ½” Phillips Screws Repeat for each additional station in the Bench System Workrite Ergonomics | 800.959.9675 www.workriteergo.com 15 of 18...
Page 16
15.2 Plug in Workcenter to the under desk receptacle of the power module (bundle the excess power cable length neatly and lay into the cable management trough) Workcenter power 15.1 15.2 15.1 Under Worksurface 16 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com...
Page 17
Power connection for power entry options offered with this daisy chain power system must be connected by a commercial electrician. Do not electrically connect to more than one source of power supply. Always verify the electrical system is connected to one and only one source of power supply. Workrite Ergonomics | 800.959.9675 www.workriteergo.com 17 of 18...
Page 18
Suggested cleaners: Windex or Formula 409. Do not use solvents and do not saturate or spray cleaners directly onto workcenter base. ✓ Parts & Accessories Visit http://workriteergo.com/documentation/other/workrite_ergonomics_pricing_specification_guide.pdf replacement parts. 18 of 18 Workrite Ergonomics | 800.959.9675 www.workriteergo.com #1500419 Rev A...
