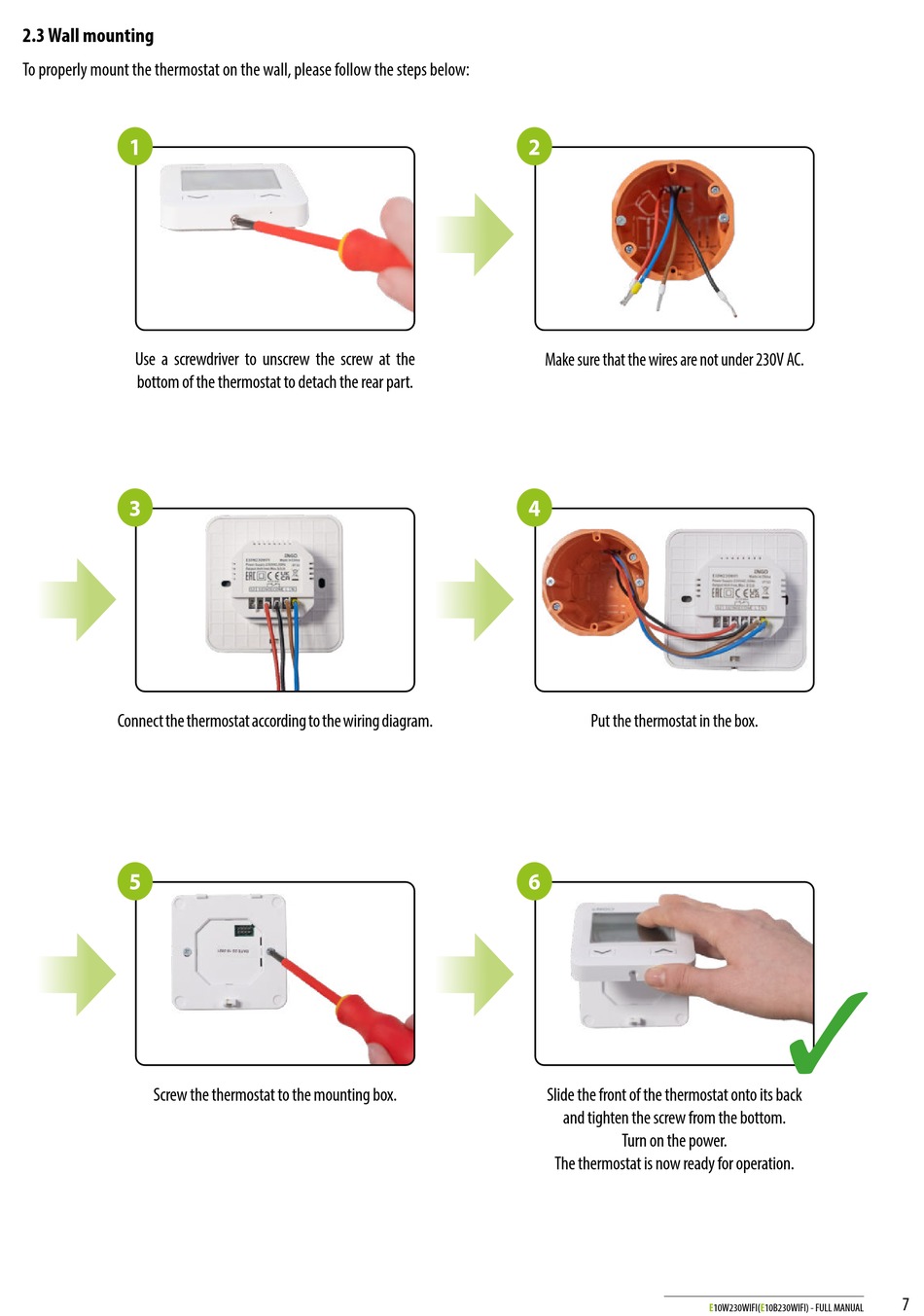

2.3 Wall mounting
To properly mount the thermostat on the wall, please follow the steps below:
1
Use a screwdriver to unscrew the screw at the
bottom of the thermostat to detach the rear part.
3
Connect the thermostat according to the wiring diagram.
5
Screw the thermostat to the mounting box.
2
Make sure that the wires are not under 230V AC.
4
Put the thermostat in the box.
6
Slide the front of the thermostat onto its back
and tighten the screw from the bottom.
Turn on the power.
The thermostat is now ready for operation.
3
E10W230WIFI(E10B230WIFI) - FULL MANUAL
