ENGO Controls E10W230WIFI, E10B230WIFI - Wi-Fi Thermostat Quick Guide

Introduction

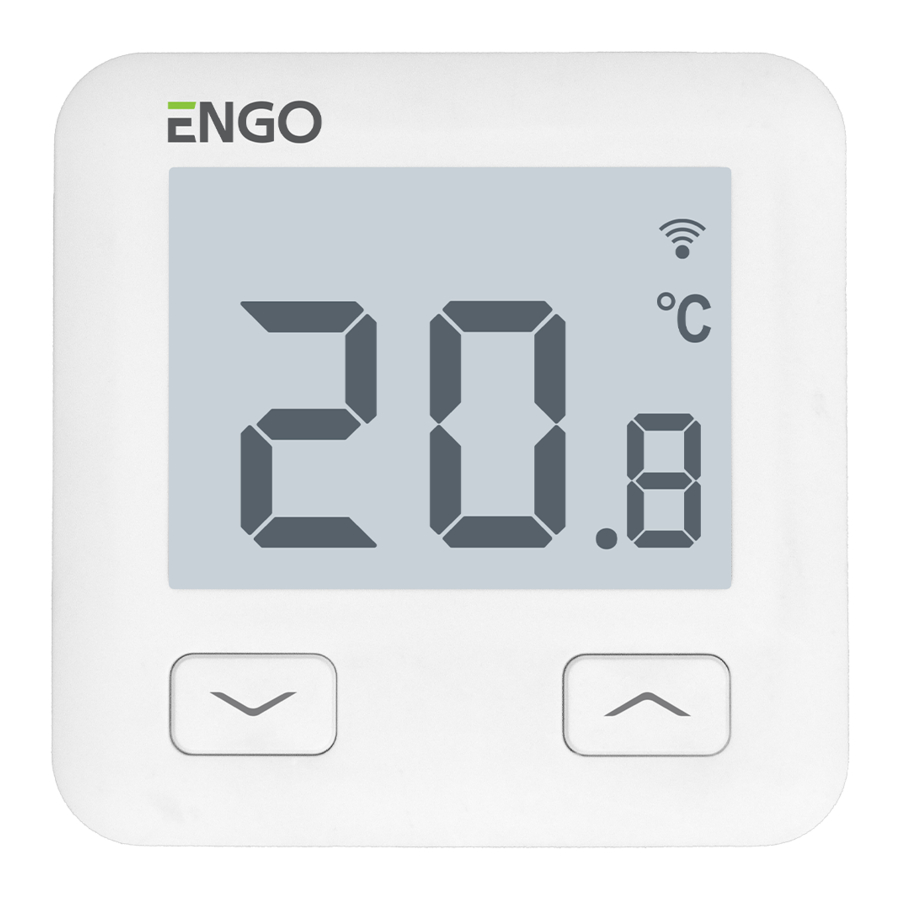

E10 is a wired temperature thermostat with a WiFi and Bluetooth module. It enables economic and ecological control of any type of heating. Provides remote control of the heating system using the ENGO Controls / Tuya Smart application. It is characterized by a clear menu and a multitude of useful functions. Programming the E10 is very simple and allows you to adjust the heating cycle to the user's daily rhythm. The model is available in white and black.

Product Compliance

This product complies with the following EU Directives: 2014/53/EU, 2011/65/EU

Technical Informations

Power supply 230V AC 50 Hz
Max current 3(1)A
Temperature range 5,0°C to 45,0°C
Display temperature accuracy 0,1°C
Control algorithm TPI or Hysteresis (±0,1°C - ±0,5°C)
Communication WiFi 2,4 GHz
S1 - S2 input Floor temperature or air temperature sensor
Output control COM / NO (voltage-free)
IP protection class IP30
Dimension [mm] 86 x 86 x 39 mm (14 mm after in box mounting Φ 60)

Connection description

Connection description

  1. Connection diagramfor gas boiler
  2. Connection diagramto pump / actuator
  3. Connection diagramto the control box

    ECB08M230
    Control box
Legend: Symbols explanation:
Boiler - Boiler connection*
  • Boiler' s contacts for ON/OFF thermostat (according to the boiler' s instructions)
 L, N - power supply
COM, NO - voltage-free output
Pump S1, S2 - output for temperature sensor
Valve SL1 - 230V control input in the control box
Temperature sensor fuse

LCD icon description + Button description

Button description

1. Heating icon

2. Frost protection mode

3. Excessive floor temperature

4. Internet

5. Connection with Wi-Fi

6. Current room temperature

7. Current / setpoint room temperature

1. "DOWN" button

2. "UP" button

3. "RESTART" button

Installation of the Wi-Fi thermostat in the app

Make sure your router is within range of your smartphone. Make sure you are connected to the Internet. This will reduce the pairing time of the device.

STEP 1 - DOWNLOAD ENGO SMART APP

Download the ENGO Smart app from Google Play or Apple App Store and install it on your smartphone.


play.google.com


apps.apple.com

STEP 2 - REGISTER THE NEW ACCOUNT

To register a new account, please follow the steps below:

  1. Click „Register" to create new account.
  2. Enter your e-mail address to which the verification code will be sent.

REGISTER THE NEW ACCOUNT - Steps 1,2

  1. Enter the verification code received in the email. Remember that you only have 60 seconds to enter the code!
  2. Then set the login password.

REGISTER THE NEW ACCOUNT - Steps 3,4

STEP 3 - CONNECT THE THERMOSTAT TO WI-FI

After installing the app and creating an account:

  1. Turn on Wi-Fi and Bluetooth on your smartphone. It's best to connect mobile to the Wi-Fi network to which you want to assign the thermostat.
  2. Make sure the thermostat is powered on. Then press and hold the buttons on the thermostat for approx. 3 seconds until the display shows „PA". Then release the keys. The pairing mode will be started up.

CONNECT THE THERMOSTAT TO WI-FI - Steps 1,2

  1. In the app, select: „Add Device".
  2. Then choose: „Auto Scan".

CONNECT THE THERMOSTAT TO WI-FI - Steps 3,4

  1. After finding the thermostat, go „Next".
  2. Select the Wi-Fi network in which the thermostat will operate and enter the password of this network.

CONNECT THE THERMOSTAT TO WI-FI - Steps 5,6

  1. Wait for the app to configure the thermostat with the selected Wi-Fi network.
  2. Go „NEXT".

CONNECT THE THERMOSTAT TO WI-FI - Steps 7,8

  1. Name the device and click „Done".
  2. The thermostat has been installed and displays the main interface.

CONNECT THE THERMOSTAT TO WI-FI - Steps 9,10

How to fix the problem?

DESCRIPTION TROUBLESHOOTING
The internet connection icon is not displayed on the thermostat. The thermostat is not connected to the Internet. Check the connection between thermostat and Internet. In this case, it is possible to control the thermostat locally using a mobile device. The mobile device and the thermostat must be on the same Wi-Fi network.
The Wi-Fi connection icon is flashing on the thermostat.
  1. The Wi-Fi network in which the thermostat was installed is turned off. Check the router and Wi-Fi connection. In this case, it is possible to control the thermostat locally via Bluetooth. The mobile device must have access to the Internet (via Wi-Fi or mobile data) and be near the thermostat.
  2. The thermostat is in pairing mode. Reinstall the thermostat.
Thermostat displays error E2. Check or connect the external temperature sensor.
The thermostat has the display off. Check if you connected the wires correctly or if the thermostat is not turned off in the app.

Restore default settings

To restore the default settings of the thermostat, hold down the + buttons for approx. 8 seconds. „FA" monit will be displayed. After all, the thermostat will go through a default reset sequence and display the main screen.
