ENGO CONTROLS EASY230W Quick Manual

Non-programmable, wired thermostat
EASY230W / EASY230B /
EASYBATW
Distributor:
QL CONTROLS Sp z o.o. Sp. k.
43-262 Kobielice
4 Rolna St.
www.engocontrols.com
Poland

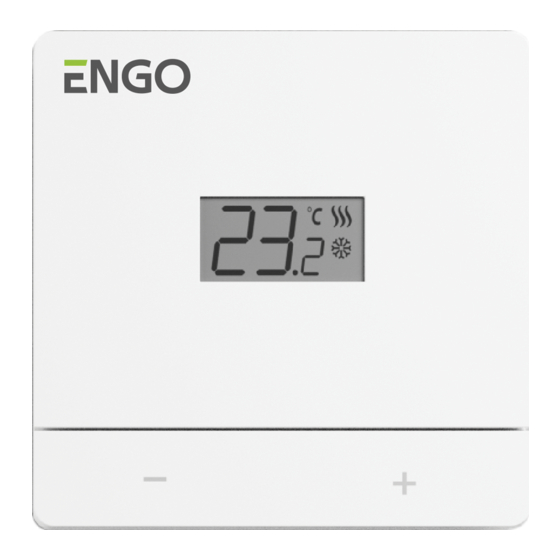

Wired, non-programmable thermostat, battery powered (2xAAA) or 230V AC
powered. It is used for wired control of heating or cooling devices and systems. It works
by maintaining comfortable conditions in the room, in line with the setpoint
temperature set by the user. It is connected directly to a heat source or wiring centre.
For a better fit, the model is available in two colors. Safe, reliable, easy to use.

Product Compliance

This product complies with the following EU Directives: 2014/53/EU, 2011/65/EU

Technical Informations

Power supply 230V or 2xAAA batteries
Max current
Temperature range
Display temperature accuracy
Control algorithm TPI or Hysteresis (±0.2°C to ±2°C)
Communication
Output Control COM / NO (voltage-free)
IP protection class
Dimension [mm] 80 x 80 x 22 mm

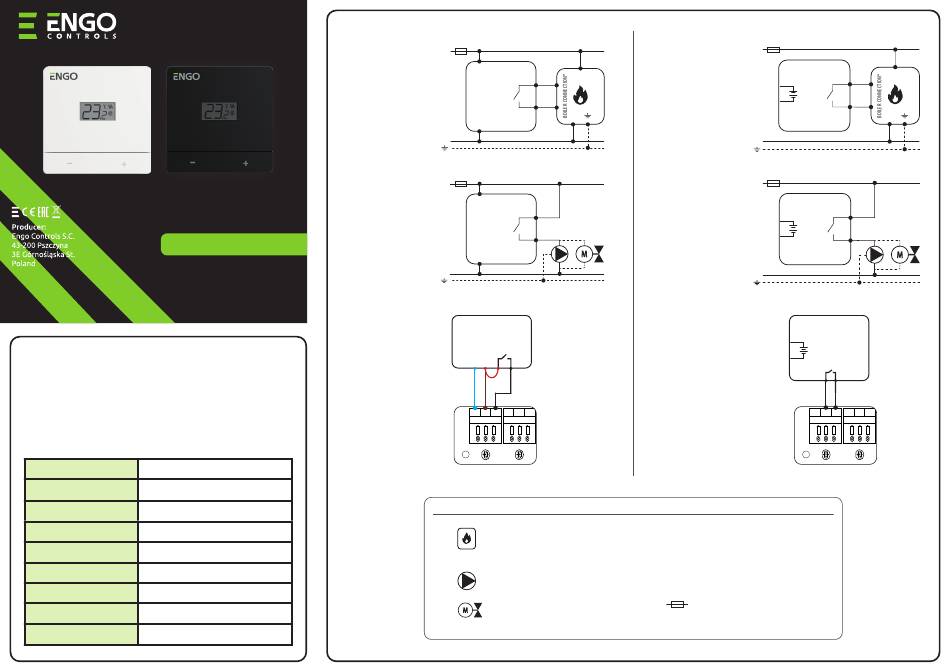

Connection description for EASY230W / EASY230B

a) Connection diagram
for gas boiler
AC 230V
b) Connection diagram
L
EASYBATB to pump / actuator
L
COM
REGULATOR
Quick Guide
NO
N
N
Ver. 1
Release date: III 2022
c) Connection diagram
to the control box
3 (1) A
5 – 35°C
0,1°C
Wired
IP30
AC 230V
L
L
COM
THERMOSTAT
REGULATOR
NO
N
N
AC 230V
L
L
L
COM
THERMOSTAT
REGULATOR
NO
N
N
N
THERMOSTAT
COM NO
N L
N L SL1 N L SL2 N L SL3
INPUT_1 INPUT_2 INPUT_3
ECB08M230
THERMOSTAT THERMOSTAT THERMOSTAT
Control box
LED LED LED
ACTUAROR ACTUAROR ACTUAROR
OUTPUT_2 OUTPUT_3
OUTPUT_1
N SL1 N SL1 N SL2 N SL2 N SL3 N SL3
Boiler - Boiler connection* - Boiler' s
contacts for ON/OFF
(according to the boiler' s instructions)
Pump
Valve
Connection description for EASYBATW / EASYBATB
AC 230V
a) Connection diagram
L
for gas boiler
L
L
COM
REGULATOR
NO
N
N
N
b) Connection diagram
to pump / actuator
MAX
3 (1) A
c) Connection diagram
to the control box
N L SL4 N L SL5 N L SL6 N L SL7 N L SL8
INPUT_4 INPUT_5 INPUT_6 INPUT_7 INPUT_8
ECB08M230
THERMOSTAT THERMOSTAT THERMOSTAT THERMOSTAT THERMOSTAT
Control box
LED LED LED LED LED
ACTUAROR ACTUAROR ACTUAROR ACTUAROR ACTUAROR
OUTPUT_4 OUTPUT_5 OUTPUT_6 OUTPUT_7 OUTPUT_8
N SL4 N SL4 N SL5 N SL5 N SL6 N SL6 N SL7 N SL7 N SL8 N SL8
Legend:
L, N - power supply
thermostat
COM, NO - voltage-free output
SL1 - 230V control input in the control box
- fuse
AC 230V
L
THERMOSTAT
L
COM
3V
MAX
2 x AA 2 x AA
3 (1) A
NO
N
N
AC 230V
L
THERMOSTAT
COM
3V
MAX
2 x AA 2 x AA
16 (5) A
3 (1) A
NO
N
THERMOSTAT
3V
2 x AA 2 x AA
COM NO
LISTWA STERUJĄCA
N L SL1 N L SL2 N L SL3 N L
ECB08M230
INPUT_1 INPUT_2 INPUT_3 INPUT_4
THERMOSTAT THERMOSTAT THERMOSTAT THERMOSTAT
LED LED LED
LED LED LED LED
AC 230V ACTUAROR PE AC 230V ACTUAROR VOLT FREE ACTUAROR ACTUAROR
OUTPUT_2 OUTPUT_3 OUTPUT_4
OUTPUT_1
POWER SUPPLY PUMP OUTPUT BOILER OUTPUT
FUSE 6.3A
PE
N L N L N L N L NO COM NC
N SL1 N SL1 N SL2 N SL2 N SL3 N SL3 N SL4
SL4 N
O
N SL4 N
