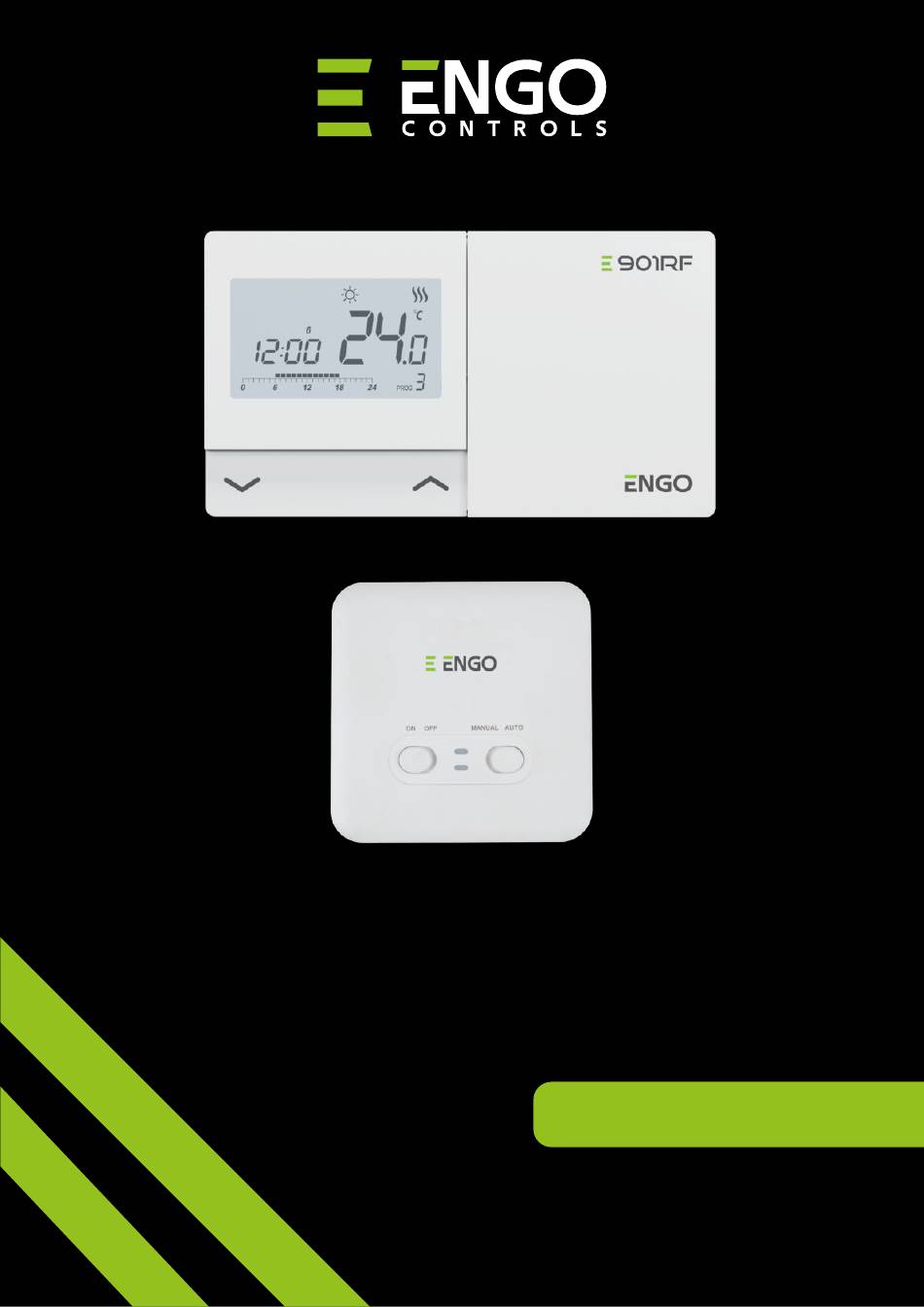

- Page 1 E901RF | Programmable, wireless thermostat FULL MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ................................3 1.1 Product Compliance ..................................3 1.2 Safety Informations ..................................3 2. Product Overview ...............................4 2.1 Package content ....................................5 2.2 Proper thermostat location ................................5 2.3 Wall mounting ....................................6 2.4 Free-standing thermostat ................................7 3. Receiver ..................................8 3.1 Receiver’s switches description ..............................8 3.2 LED indications in the receiver ...............................9 3.3 Connection description ................................10 4. -
Page 3: Introduction
Sorting waste for recycling helps to protect the environment. It is the user’s responsibility to surrender used equipment to a designated collection point for recycling waste from electrical and electronic equipment. E901RF FULL USER MANUAL... -
Page 4: Product Overview
2. Product Overview E901RF is a weekly, surface-mounted electronic room thermostat, used for wireless control of heating devices (e.g. gas, oil boilers, heat pumps) or cooling devices. It has the function of creating your own schedules. Thanks to the built-in algorithms, it offers much better temperature control accuracy than traditional mechanical thermostats. -
Page 5: Package Content

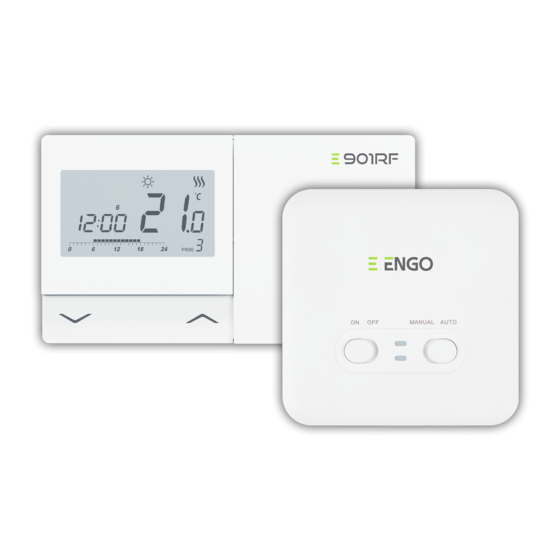

2.1 Package content E901RF | Wireless Programmable Thermostat E901 | Hardwired Programmable Thermostat Ver. 1 Date of issue: 14 IX 2021 Power supply: 2xAA batteries Quick Guide 1) E901RF thermostat 2) E901RX receiver E901RF thermostat E901RX receiver Quick Guide 3) Quick Guide... -
Page 6: Wall Mounting
Then fix the back cover to the wall using the the direction shown above. supplied mounting screws and the holes provided (see red arrows). Using the hinges, fold the back and front covers by moving as shown in the picture above. E901RF FULL USER MANUAL... -
Page 7: Free-Standing Thermostat
2.4 Free-standing thermostat With the bracket attached to the E901RF set, you can use the thermostat anywhere in the house and put it on a table, desk, etc. To use the bracket properly, see the steps below: Mount the bracket on the back of the thermostat with use of the two designed holes. -
Page 8: Receiver
AUTO - Receiver works in AUTO mode (according to the thermostat’s commands) REMEMBER!: Thermostat (transmitter) will communicate with receiver only when both are paired together and receiver’s switches are set to ON and AUTO position. E901RF FULL USER MANUAL... -
Page 9: Led Indications In The Receiver
In automatic mode, the receiver didnt get a heating / cooling signal from the thermostat. orange LED is off The receiver is OFF in manual mode (left switch is set to OFF and right switch is set to MANUAL). E901RF FULL USER MANUAL... -
Page 10: Connection Description
Legend: Symbols explanation: Boiler - Boiler connection* L, N - power supply 230V - Boiler’s contacts for ON/OFF thermostat (according to the COM, NO - voltage-free output boiler’s instructions) - fuse Pump - batteries Valve actuator E901RF FULL USER MANUAL... -
Page 11: Before You Start (First Power On)
The thermostat will start up showing the current software version and then go to the main screen. Reset PULL OFF THERMOSTAT SLIDE COVER. Reset INSERT THE BATTERIES, PAYING ATTENTION TO THEIR POLARITY! Reset PLACE AND SLIDE THERMOSTAT FRONT HOUSING. THE LCD WILL TURN ON WHEN THE BATTERIES ARE INSERTED. E901RF FULL USER MANUAL... -
Page 12: Lcd Icon Description
13. Cooling status 5. Settings icon 14. Heating status 6. Key lock function 15. Temperature unit 7. Send a signal (pairing)* only E901RF 16. Room / setpoint temperature 8. Holiday Mode 17. Temporary override 9. Low battery indicator 18. Program number 4.2 Button description... -
Page 13: Time Settings
Day/time settings are set using the D, H and M buttons. Please see steps below how to set time/day: Press any button to highlight the display. Pressing D button set the day. Pressing H button set the hour. Pressing M button set the minutes. E901RF FULL USER MANUAL... -
Page 14: Operation
Confirm by button or wait until the thermostat will approve your choice itself and display the main screen. The thermostat will return to the main screen and display the actual room temperature. E901RF FULL USER MANUAL... -
Page 15: Economic Mode
Confirm by button or wait until the thermostat will value. approve your choice itself and display the main screen. The thermostat will return to the main screen and display the actual room temperature. E901RF FULL USER MANUAL... -
Page 16: Auto Mode - Two Schedule Types
(6 TO 7) SAT-SUN Temp. setpoint Temp. setpoint 14°C 20°C Time 16:00 Time 16:00 Temp. setpoint Temp. setpoint 21°C 18°C Time 21:00 Time 21:00 Temp. setpoint Temp. setpoint 15 16 17 19 20 21 22 23 14°C 14°C E901RF FULL USER MANUAL... -
Page 17: Switching Between Schedules (Auto Mode) Type 1 And 2
5 seconds to enter to the PROG schedule type selection. Using buttons choose type of schedule. Confirm by button. Thermostat will return to the main screen saving chosen type of schedule (timeline will disappear if schedule type 2 is chosen). E901RF FULL USER MANUAL... -
Page 18: First Type Schedule Programming
(sun) is set from 6 to 8 and from 16 to 23 o’ c lock. The thermostat will return to the main screen saving the set program. PLEASE NOTE! Programs should be set for all days of the week. E901RF FULL USER MANUAL... -
Page 19: Choosing And Programming User Programs (4-9)
Select the week period (MON-FR) using buttons. Using buttons choose program number 4. Confirm by button. From 8:00 to 16:00 set comfort temperature by pressing Use the button several times to set the economic several times button. temperature until 8:00. E901RF FULL USER MANUAL... - Page 20 Programs 4 to 9 are user defined (editable). One program (e.g. program 4) can be assigned to several days of the week. If this program is edited, the change affects all days to which given program is assigned to. E901RF FULL USER MANUAL...
-
Page 21: Frost Protection Program Setting
The thermostat will return to the main screen saving the set program. Snowflake - icon will appear on the display. PLEASE NOTE! In the frost protection mode, the temperature setpoint can’t be changed and it is maintained constantly at 7°C. E901RF FULL USER MANUAL... -
Page 22: Temporary Override Mode
The display will show the „hand” symbol. The overwritten temperature is maintained until the next change forced by schedule. Then the „hand” symbol will disappear from the display and the thermostat will return to the automatic mode. E901RF FULL USER MANUAL... -
Page 23: Second Type Schedule Programming
Confirm by button. The thermostat will proceed to program selection for the next time period (a maximum of 6 time periods/switching points can be set). E901RF FULL USER MANUAL... -
Page 24: Temporary Override Mode
Press any button to highlight the display. Using buttons set temperature setpoint during active AUTO mode. Confirm by button. The hand icon will be displayed. The temperature will be maintained until the next change forced by schedule. E901RF FULL USER MANUAL... -
Page 25: Party Mode
To cancel active party mode (example): To cancel the function, press any button to turn on backlight The thermostat will stop party mode and will return to and then press 2 times button. schedule (Auto mode). E901RF FULL USER MANUAL... -
Page 26: Holiday Mode
The thermostat is working in holiday mode. Plane icon is on thermostat will maintain for defined number of days. the display. Confirm by button. TO STOP HOLIDAY MODE: Confirm by button. Press button. The thermostat will return to the previous mode. E901RF FULL USER MANUAL... -
Page 27: Key Lock Function
The user has the option to set a PIN code, which he will have to enter each time he wants to unlock the buttons of the thermostat. To set a PIN code, go to parameter P12 (please refer to „Installer settings” section). E901RF FULL USER MANUAL... -
Page 28: Pairing With The E901Rx Receiver
7. Pairing with the E901RX receiver PLEASE NOTE! E901RF thermostat is already paired with the receiver! In order to pair the devices correctly, you must first prepare the receiver for synchronization! If you want to re-pair the devices with Move the left switch to the OFF... - Page 29 WARNING! If the green diode on the receiver has not stopped blinking after 10 minutes, repeat the pairing process taking into account the distance between devices, obstacles and interference. E901RF FULL USER MANUAL...
-
Page 30: Transmission Test
Confirm by button or wait until the thermostat will approve your choice itself and display the main screen. The thermostat started sending a heating signal when the screen went blank, which was signaled by the antenna symbol. E901RF FULL USER MANUAL... - Page 31 If the orange LED does not turn on / off as indicated by the transmitter flame icon, try moving the transmitter closer to the receiver and repeat all steps from the beginning. If it still doesn’t work, try the pairing process again. E901RF FULL USER MANUAL...
-
Page 32: Installer Settings
Celsius Temperature Scale °C °F Fahrenheit Minimum setpoint 5°C - 34,5°C Minimum heating / cooling temperature that can be set 5°C Maximum setpoint 5,5°C - 35°C Maximum heating / cooling temperature that can be set 35°C E901RF FULL USER MANUAL... - Page 33 Function disabled Require a PIN to unlock the keys every time Function enabled No action Clear settings factory reset Factory Reset *Only for E901RF thermostat Pairing disabled Pairing function with SYNC RXRT510 receiver (SYNC) Pairing enabled E901RF FULL USER MANUAL...
-
Page 34: User Settings Reset
5 sec. Press any button to highlight the display. Press and hold button for 5 seconds. buttons to move to CLR parameter. Confirm the new parameter value with the button. E901RF FULL USER MANUAL... -
Page 35: Cleaning And Maintenance
11. Cleaning and Maintenance The E901RF thermostat requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents, polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by ENGO Controls or their appointed agents. -
Page 36: Warranty
13. Warranty ENGO Controls warrants this product to be free from any defects in material or workmanship and to perform as specified for a period of five years from the date of installation. ENGO Controls reserves the sole responsibility for breach of this warranty by repairing or replacing the defective product. This product includes software that matches the distributor’s identification at the time of sale. - Page 38 Ver. 1 Date of issue: II 2022 Power supply: 2xAA batteries Distributor: QL CONTROLS Sp z o.o. Sp. k. 43-262 Kobielice 4 Rolna St. Poland www.engocontrols.com...
