ENGO CONTROLS EASY-24W Quick Manual

EASY
24V AC
Wired thermostat, 24V
EASY-24W EASY-24B
Quick Guide
Ver. 1.0
Release date: VII 2024
Soft: v0.6
Producer:
Engo Controls sp z o.o. sp. k.
Rolna 4 St.
43-262 Kobielice
Poland
www.engocontrols.com
Technical Informations
Power supply 24V AC
Max current 3 (1) A
Temperature range 5 – 35°C
Display temperature
0,1°C
accuracy
Control algorithm TPI or Histeresis (±0.2°C do ±2°C)
Communication Wired
Output control COM / NO (voltage-free)
IP protection class IP30
Dimension 80 x 80 x 22 mm
Introduction
Wired, non-programmable thermostat, 24V AC powered.
It is used for wired control of heating or cooling devices and
systems. It works by maintaining comfortable conditions in the
room, in line with the setpoint temperature set by the user. It
is connected directly to a heat source or wiring centre. For a
better fit, the model is available in two colors. Safe, reliable,
easy to use.
Product features
Wired communication
NO-COM Volt-Free output 3(1)A
Precise TPI temperature control algorithm
HEAT/STANDBY/COOL Switch
Product Compliance
This product complies with the following EU
Directives:
2014/30/UE, 2014/35/UE, 2011/65/UE.
SAFETY INFORMATION:
Use in accordance with national and EU regulations.
Use the device only as intended, keeping it in a dry
condition. The product is for indoor use only. Please
read the entire manual, before installation or use.
Installation
Installation must be performed by a qualified
person with appropriate electrical qualifications,
in accordance with the standards and regulations
in force in a given country and in the EU. The
manufacturer is not responsible for non compliance
with the instructions.
ATTENTION:
For the entire installation, there may be additional
protection requirements, which the installer is
responsible for.

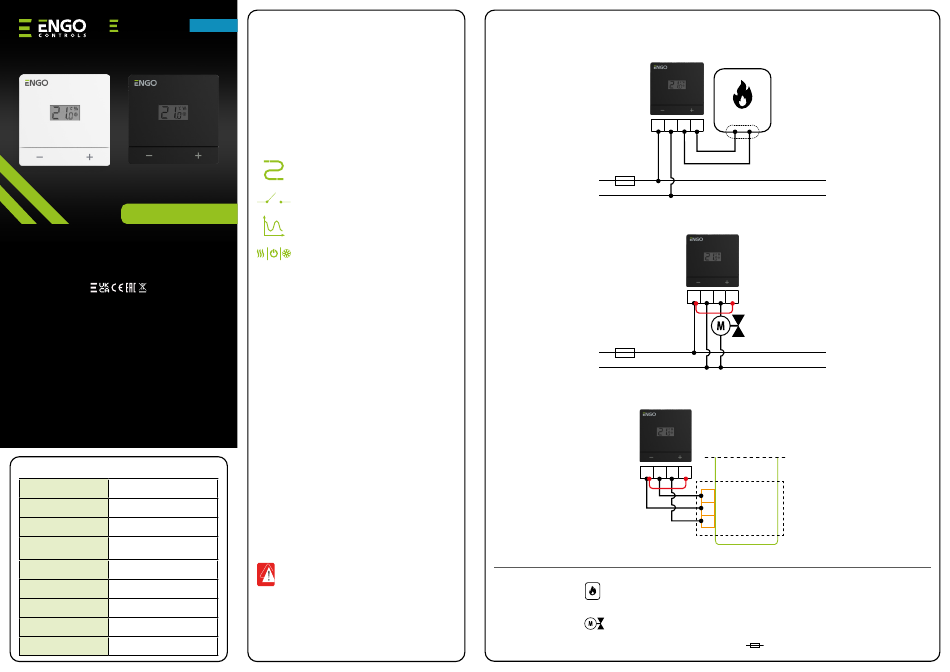

Connection description
a) Connection diagram for heating source
Heating source
L1 L2 NO COM
*
AC 24V
L1
L2
b) Connection diagram to 24V actuator
L1 L2 NO COM
max. 3(1)A
AC 24V
L1
L2
c) Connection diagram to the control box
L1 L2 NO COM
L2
24V Control Box
L1
1 - 8 Zones
SL..
Legend:
Heating source* - L1, L2
Boiler's contacts for ON/OFF
thermostat (according to the boiler's
COM, NO
instructions)
Valve actuator SL..
24V AC power
supply
Voltage-free output
Input terminals
Fuse
