- Page 1 E901 | Programmable, wired thermostat FULL MANUAL...
-
Page 2: Table Of Contents
6.4 Party mode ....................................21 6.5 Holiday mode ....................................22 7. Installer settings ..............................23 8. User settings reset ..............................25 9. Clear settings - factory reset ............................25 10. Cleaning and Maintenance ............................26 11. Technical Informations ............................26 12. Warranty ................................27 E901 FULL USER MANUAL... -
Page 3: Introduction
Sorting waste for recycling helps to protect the environment. It is the user’s responsibility to surrender used equipment to a designated collection point for recycling waste from electrical and electronic equipment. E901 FULL USER MANUAL... -
Page 4: Product Overview

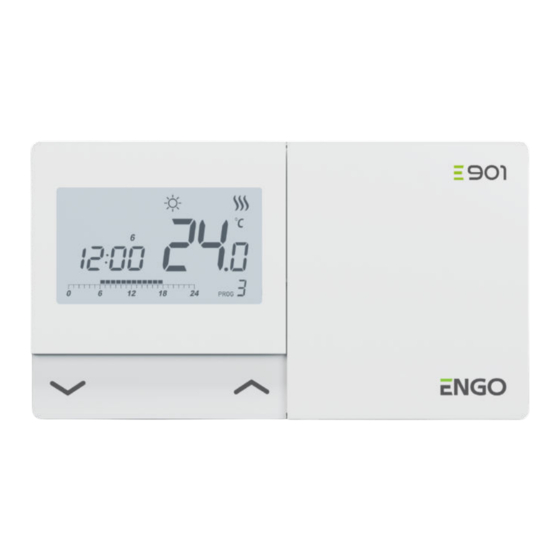

2. Product Overview E901 is a programmable, surface-mounted electronic room thermostat, used for wireless control of heating devices (e.g. gas, oil boilers, heat pumps) or cooling devices. It has the function of creating your own schedules. Thanks to the built-in algorithms, it offers much better temperature control accuracy than traditional mechanical thermostats. -
Page 5: Package Content
2.1 Package content E901RF | Wireless Programmable Thermostat E901 | Hardwired Programmable Thermostat Ver. 1 Date of issue: 14 IX 2021 Power supply: 2xAA batteries Quick Guide 1) E901 thermostat E901 thermostat Short manual 2) Short instruction 3) 2xAA batteries... -
Page 6: Wall Mounting
(see bigger arrows). Connect the wires to the COM / NO connector (see smaller arrows). Using the hinges, fold the back and front covers by moving as shown in the picture above. E901 FULL USER MANUAL... -
Page 7: Connection Description
5 (3) A Legend: Symbols explanation: Boiler - Boiler connection* L, N - power supply 230V - Boiler’s contacts for ON/OFF thermostat (according to the COM, NO - voltage-free output boiler’s instructions) - fuse Pump Valve actuator E901 FULL USER MANUAL... -
Page 8: Before You Start (First Power On)
The thermostat will start up showing the current software value and then go to the main screen. Reset PULL OFF THERMOSTAT SLIDE COVER. Reset INSERT THE BATTERIES, PAYING ATTENTION TO THEIR POLARITY! Reset PLACE AND SLIDE THERMOSTAT FRONT HOUSING. THE LCD WILL TURN ON WHEN THE BATTERIES ARE INSERTED. E901 FULL USER MANUAL... -
Page 9: Lcd Icon Description
Set the day of the week Set the hour Set the minutes Comfort temperature Economic temperature / Holiday mode AUTO mode / Back button AUTO Programming / Programming type selection PROG Confirm button Factory Reset Reset E901 FULL USER MANUAL... -
Page 10: Time Settings
In this chapter you will learn how to set the time on the thermostat using the D, H and M buttons. To do this, see the steps below: Press any button to highlight the display. Pressing D button set the day. Pressing H button set the hour. Pressing M button set the minutes. E901 FULL USER MANUAL... -
Page 11: Operation
Confirm by button or wait until the thermostat will approve your choice itself and display the main screen. The thermostat will return to the main screen and display the actual changed temperature. E901 FULL USER MANUAL... -
Page 12: Economic Mode
Confirm by button or wait until the thermostat will value. approve your choice itself and display the main screen. The thermostat will return to the main screen and display the actual changed temperature. E901 FULL USER MANUAL... -
Page 13: Auto Mode - Schedule Type 1
Within first type schedule mode there are 9 programs available. Programs 0 to 3 are factory-defined programs that cannot be changed. In this chapter you will find detailed information on the built-in factory programs (1-3) in the E901. These are pre-programmed time settings for the comfort and economy temperature that can be assigned to a selected day. -
Page 14: Choosing And Programming (4-9) User Programs
Using buttons choose program number 4. Confirm by button. From 8:00 a.m. to 4:00 p.m. set comfort temperature by Use the button several times to set the economic pressing several times button. temperature until 8:00 am. E901 FULL USER MANUAL... - Page 15 Programs 4 to 9 (user defined) are common to selected periods of the days of the week. This means that if one of the user-defined day programs is changed, the change will also apply to other days in the period. E901 FULL USER MANUAL...
-
Page 16: Frost Protection Program Setting
The thermostat will return to the main screen saving the set program. Snowflake - icon will appear on the display. PLEASE NOTE! In the frost protection mode, the temperature setpoint can’t be changed and it is maintained constantly at 7°C. E901 FULL USER MANUAL... -
Page 17: Temporary Overwrite Mode
The display will show the „hand” symbol. The overwritten temperature is maintained until the next change forced by schedule. Then the „hand” symbol will disappear from the display and the thermostat will return to the automatic mode. E901 FULL USER MANUAL... -
Page 18: Auto Mode - Schedule Type 2
5 seconds to enter to the schedule PROG programming selection mode. Using buttons choose the second type of Confirm by button. Thermostat will return to the main schedule programming. screen saving the second type of schedule programming. The timeline will also disappear. E901 FULL USER MANUAL... -
Page 19: Programming Method Of The Auto Mode - Type 2
Confirm by button. The thermostat will proceed to Confirm by button. program selection for the next time period (a maximum of 6 time periods/switching points can be set). E901 FULL USER MANUAL... -
Page 20: Temporary Overwrite Mode
Press any button to highlight the display. Using buttons set temperature setpoint during active AUTO mode. Confirm by button. The hand icon will be displayed. The temperature will be maintained until the next mode change in the program. E901 FULL USER MANUAL... -
Page 21: Party Mode
To cancel active party mode (example): To cancel the function, press any button to turn on backlight The thermostat will stop party mode and will return to and then press 2 times button. schedule (Auto mode). E901 FULL USER MANUAL... -
Page 22: Holiday Mode
The thermostat is working in holiday mode. Plane icon is on selected day period which thermostat will maintain. the display. Confirm by button. TO STOP HOLIDAY MODE: Confirm by button. Press button. The thermostat will return to the previous mode. E901 FULL USER MANUAL... -
Page 23: Installer Settings
Celsius Temperature Scale °C °F Fahrenheit Minimum setpoint 5°C - 34,5°C Minimum heating / cooling temperature that can be set 5°C Maximum setpoint 5,5°C - 35°C Maximum heating / cooling temperature that can be set 35°C E901 FULL USER MANUAL... - Page 24 Function Value Description Default value Key sound Disabled PIN Code Enabled Function disabled Require a PIN to unlock the keys every time Function enabled No action Clear settings factory reset Factory Reset E901 FULL USER MANUAL...
-
Page 25: User Settings Reset
5 sec. Press any button to highlight the display. Press button for 5 seconds. buttons to move to CLR parameter. Confirm the new parameter value with the button. E901 FULL USER MANUAL... -
Page 26: Cleaning And Maintenance
10. Cleaning and Maintenance The E901 thermostat requires no special maintenance. Periodically, the outer casing can be wiped clean using a dry cloth (please DO NOT use solvents, polishes, detergents or abrasive cleaners, as these can damage the thermostat). There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by ENGO Controls or their appointed agents. -
Page 27: Warranty
12. Warranty ENGO Controls warrants this product to be free from any defects in material or workmanship and to perform as specified for a period of five years from the date of installation. ENGO Controls reserves the sole responsibility for breach of this warranty by repairing or replacing the defective product. This product includes software that matches the distributor’s identification at the time of sale. - Page 28 Ver. 1 Date of issue: II 2022 Power supply: 2xAA batteries Distributor: QL CONTROLS Sp z o.o. Sp. k. 43-262 Kobielice 4 Rolna St. Poland www.engocontrols.com...
