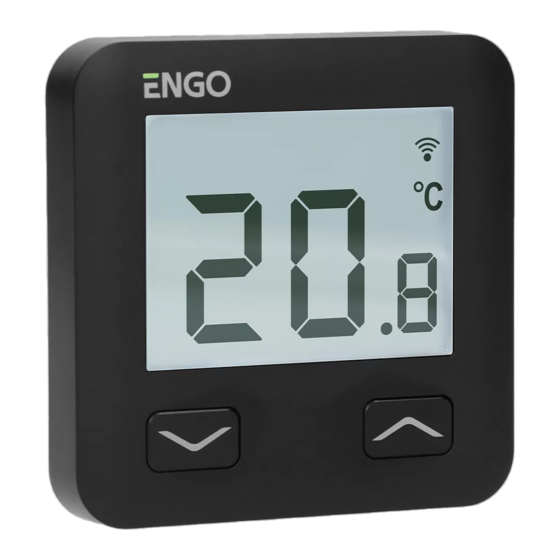

ENGO CONTROLS E10W230WIFI Full Manual

Internet controlled thermostat, wifi
Hide thumbs Also See for E10W230WIFI:
Table of Contents

Advertisement

Quick Links

Download this manual
E10W230WIFI / E10B230WIFI
| Internet controlled thermostat, WiFi
FULL MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E10W230WIFI and is the answer not in the manual?

Questions and answers

Related Manuals for ENGO CONTROLS E10W230WIFI

Summary of Contents for ENGO CONTROLS E10W230WIFI

  • Page 1 E10W230WIFI / E10B230WIFI | Internet controlled thermostat, WiFi FULL MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ................................4 1.1 Product Compliance ..................................4 1.2 Safety Informations ..................................4 2. Product Overview ...............................5 2.1 Package content ....................................6 2.2 Proper thermostat location ................................6 2.3 Wall mounting ....................................7 3. Connection description ...............................8 3.1 Connection diagram for gas boiler ..............................8 3.2 Connection diagram to pump / actuator ............................9 3.3 Connection diagram to the control box ............................10 4.
  • Page 3 8.5.5 Share device ................................50 8.5.6 Create group ................................52 8.5.7 FAQ & Feedback ................................54 8.5.8 Add to home screen ..............................55 8.5.9 Check device network ..............................56 8.5.10 Device update ................................57 9. Alarms / Push notifications / Emergency states ......................58 10. Remove device ................................60 11.

  • Page 4: Introduction

    Sorting waste for recycling helps to protect the environment. It is the user’s responsibility to surrender used equipment to a designated collection point for recycling waste from electrical and electronic equipment. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 5: Product Overview

    (available in the app) • multiple functions available from the ENGO Smart / Tuya Smart app • possibility to set the minimum and maximum setpoint temperature range • push notifications from the app • very easy to use E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 6: Package Content

    The recommended height for mounting the E10W / E10B thermostat is approx. 1.5 m above the ground, away from any sources of heat or cool. It is not recommended to install the thermostat on an outside wall, in a draft or in a place where it will be exposed to direct sunlight. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 7: Wall Mounting

    Put the thermostat in the box. Screw the thermostat to the mounting box. Slide the front of the thermostat onto its back and tighten the screw from the bottom. Turn on the power. The thermostat is now ready for operation. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 8: Connection Description

    Boiler - Boiler connection* L, N - power supply - Boiler’s contacts for ON/OFF thermostat (according to the COM, NO - voltage-free output boiler’s instructions) S1, S2 inputs - output for temperature sensor Temperature sensor - fuse E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 9: Connection Diagram To Pump / Actuator

    3.2 Connection diagram to pump / actuator AC 230V E10W230WIFI 3(1)A Legend: L, N - power supply Pump COM, NO - voltage-free output Valve S1, S2 inputs - output for temperature sensor - fuse Temperature sensor E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 10: Connection Diagram To The Control Box

    1 - 8 Strefy ECB08M230 listwa sterująca Legend: Temperature sensor L, N - power supply COM, NO - voltage-free output S1, S2 - output for temperature sensor SL1...SL8 - 230V control input in the control box - fuse E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 11: About Engo

    IEEE 802.11 b/g/n Protocols IPv4/IPv6/TCP/UDP/HTTPS/TLS/MulticastDNS Protection WEP/WPA/WPA2/AES128 Supported type STA/AP/STA+AP 4.2 Mobile device requirements FOR A MOBILE DEVICE WITH ANDROID: Android version 5.0 or higher FOR A MOBILE DEVICE WITH IOS SYSTEM: IOS version 9.0 or higher E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 12: About Engo Smart App (General Information)

    It is similarly simple to solve the problem of turning off the light in the bedroom - if the bedside lamp is turned on, it can be set to turn off the light in the bedroom. COMPATIBILITY WITH TUYA DEVICES (examples): Smart plugs Smart bulbs Cameras Doorbells E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 13: First Power On

    The thermostat is powered by 230V. When properly connected to the power supply, the thermostat will start up showing all the icons and then go to the main screen. IN ORDER TO TURN ON THE THERMOSTAT IT ...THE DISPLAY WILL SHOW ALL THE ICONS... IS NECESSARY CONNECT IT TO 230V..THE MAIN SCREEN IS APPEARED. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 14: Lcd Icon Description

    Connection with Wi-Fi Temperature scale (Celsius) Current / setpoint room temperature 5.2 Button description Button Function Change the parameter value down Change the parameter value up Enter the pairing mode / Thermostat factory reset Thermostat’s reboot Reset E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 15: Engo Smart App Installation

    Please note! Please enable storage / location / camera permissions during installation. Otherwise, problems may arise during use / operation. Please note! Make sure your router is within range of your mobile phone. Make sure you are connected to the Internet. This will reduce the pairing time of the device. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 16: Installation Of The Wi-Fi Thermostat In The App

    Enter your e-mail address to which new account. the verification code will be sent. Enter the verification code received Then set the login password. in the email. Remember that you only have 60 seconds to enter the code! E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 17 „PA”. Then mobile to the Wi-Fi network to which release the keys. The pairing mode you want to assign the thermostat. will be started up. In the app, select: Then choose: „Add Device”. „Auto Scan”. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 18 „Next”. the thermostat will operate and thermostat with the selected Wi-Fi enter the password of this network. network. Go „NEXT”. The thermostat has been installed Name the device and click „Done”. and displays the main interface. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 19: Operation In The App

    Thermostat operation mode indicator Thermostat status indicator Control - there are basic thermostat control functions, e.g. changing the User settings work mode, setting the schedule, (including advanced installer parameters) etc. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 20: Control

    The thermostat started sending moving the slider along the bar. a signal for heating, which was signaled by a change of working status to „Heating”..and the heating icon appears on the display of the thermostat. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 21: Power" Function

    Enter the thermostat interface. Select the „Control” option. You can turn the thermostat on / off by using „Power” slider. When the „Power” slider is grayed ...and its display is blank. out, then the thermostat is off... E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 22 Turn off the thermostat using button. The thermostat screen will blank out Press the button to light up the and the relay will be inactive. screen. The message „OFF” will be displayed, which indicates the status of the thermostat off. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 23: Manual Mode

    In the manual mode, the thermostat will maintain the temperature setpoint until the user changes it again via the app or thermostat, or selects a new operating mode in the app. To set the manual mode, follow the steps below: Enter the thermostat interface. Select the „Control” option. Select manual mode. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 24: Schedule Mode

    To activate the schedule, press the schedule icon in the „Work modes” place. Once activated, the status of the thermostat will update to „Schedule”. To activate the schedule mode: Enter the thermostat interface. Select the „Control” option. Select schedule mode. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 25 Enter the thermostat interface. Select the „Control” option. Select schedule mode. Enter the schedule settings. Select one of the six switch points to Select the start time of edit (the editing order is optional). the switch point. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 26 Select an icon for the selected one Click on the temperature setpoint Set the temperature which will be program and confirm. option to set the temperature for maintained from the start of a selected program. program. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 27 To do so, please follow the steps below: Select, press and hold the day you Then select the days for which you After selecting the days, confirm. want to copy and transfer its settings want to duplicate the settings. to another. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 28: Holiday Mode

    Select the „Control” option. Select Holiday mode. Set the temperature to be Set the duration of the holiday mode. After all, exit holiday mode. maintained in holiday mode. All settings in holiday mode will be saved automatically. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 29: Frost Mode

    FROST mode (from the app or thermostat level) will change the status to manual mode. Enter the thermostat interface. Select the „Control” option. Select FROST mode. When the FROST mode is active, the thermostat interface will show 5°C. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 30: Diagrams

    Select the „Control” option. Click on the selected bar of the graph to view more details, e.g. the temperature that the thermostat maintained at the given time of the selected day. Choose the day that interests you. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 31: Settings (Installer Parameters)

    Use the slider to lock / unlock the buttons on the thermostat. When the slider is highlighted green, When the buttons are locked, only the then thermostat buttons are blocked. currently measured temperature can be read on the thermostat. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 32: Backlight Brightness

    The user can change the brightness of the thermostat display. Move the slider to the appropriate direction as in the steps below: Enter the thermostat interface. Select „Settings”. Use the slider to set the brightness of the display. When the slider is moved (see previous step), the thermostat display automatically changes its brightness. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 33: Max Temp. Limit

    This parameter allows you to set the maximum temperature setpoint in the thermostat. Take a look at the steps below: Enter the thermostat interface. Select „Settings”. Use the slider to change the value for the maximum temperature set point (from 20°C to 45°C). E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 34: Min Temp. Limit

    This parameter allows you to set the minimum temperature set in the thermostat. Take a look at the steps below: Enter the thermostat interface. Select „Settings”. Use the slider to change the value for the minimum temperature set point (from 5°C to 20°C). E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 35: Sensor Selection

    Additionally, you can set the maximum set deadzone value temperature (from 10°C to 45°C) for the from ± 0.1°C to ± 0.5°C. floor sensor (if there is an underfloor heating system and the sensor is connected). E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 36: External Temperature Sensor (Out)

    E2 instead of. Enter the thermostat interface. Select „Settings”. Select the external (OUT) sensor. Use the slider to set the EXT sensor deadzone value from ± 0.1°C to ± 0.5°C. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 37: Temperature Correction

    This function allows you to adjust the room temperature by ± 3.0°C in steps of 0.5°C. This is useful if the thermostat is in a location with a slightly different temperature than the general room temperature. Take a look at the steps below: Enter the thermostat interface. Select „Settings”. Use the slider to select the correction value for the current temperature. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 38: Control Type (Algorithm)

    From this point on, the thermostat will start working according to the hysteresis set on the internal or external sensor. How to set the hysteresis on the internal or external sensor: Enter the thermostat interface. Select „Settings”. Use the slider to select hysteresis value. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 39 How to set the TPI algorithm in the ENGO Smart app for the Wi-Fi thermostat: Select „Settings”. Choose „TPI”. Then select the type of TPI heating system. Depending on your choice, the thermostat will better adjust its work. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 40: Device State On Power

    The user can decide what action the thermostat can take after a power failure (or power outage). Take a look at the steps below: Enter the thermostat interface. Select „Settings”. Choose „Device state on power”. Decide what action you want the thermostat to take when turned on. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 41: E10 Thermostat Management In The Engo Smart App

    Enter the thermostat interface. Click the pencil icon in the top Tap the name of the thermostat. right corner. Enter icon settings. Take a photo or select an image from Enter thermostat name. your local album. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 42 Living Room Office Bathroom Dining room Kitchen Bedroom Write a name and click save. Determine the location of Choose a place and click „Save” the thermostat. in the top right corner. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 43: Device Information

    The user will find here detailed information about the device, eg. Virtual ID, device IP, MAC address, the time zone in which the device is located and signal strength. Check the steps below: Enter the thermostat interface. Click the pencil icon in the top right corner. Select „Device Information”. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 44: Tap-To-Run And Automation

    23°C. Follow the steps below: Enter the Smart menu. Choose Tap-To-Run. Click „Create Scene”. Select „Launch Tap-to-Run”. Click on the device, in this case the Then enter the „On / Off” function. first thermostat. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 45 Set it as „OFF” and click Save. Go „Next”. Select a function for the second thermostat (frost protection mode setting). Select „Run the device”. Click on the device, in this case the Then enter the „Frost Protection” second thermostat. function. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 46 After following the previous steps, you Enter a new name and click Save. Select a style to change the color can now rename the rule, choose its and icon of the rule. color, icon, or show it on home page. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 47 It is possible to delete a single task without deleting the entire rule. To do this, push, hold and slide the tile of the given task to the left. The „Delete” button will be displayed in red: E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 48 The rule has been activated. In this will be displayed. To activate one at case, the first thermostat has turned this point, click on its tile. off and the rest of the functions have been triggered. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 49: Offline Notification

    8.5.4 Offline notification The user can mute notifications about the thermostat at any time. See steps below: Enter the thermostat interface. Click the pencil icon in the top right corner. Check „Offline notification”. Confirm „Got it.” E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 50: Share Device

    To do this, follow the steps below: Enter the thermostat interface. Click the pencil icon in the top Select „Share Device”. right corner. Add sharing. Send device link directly ...or enter person’s e-mail to selected user... address / name. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 51 After the device is made available, the user can set a validity period for this sharing and can also terminate it at any time by selecting „Unshare”. Select a user. Go to the expiry date. Select the period for which the sharing is to be effective. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 52: Create Group

    Enter the thermostat interface. Click the pencil icon in the top Select „Create Group”. right corner. Select the devices you want to assign Click „Save”. Name the group and confirm „Save”. to the group. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 53 The main group management The group will also automatically interface will be displayed from appear on the main screen of the app. where you can set temperature or change operation modes / settings. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 54: Faq & Feedback

    Enter the thermostat interface. Click the pencil icon in the top right corner. Select „FAQ & Feedback”. Enter a bothering problem and the app will automatically start searching for a possible answer. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 55: Add To Home Screen

    Enter the thermostat interface. Click the pencil icon in the top right corner. Select „Add to home screen”. Confirm it by „Go” button. After all, a shortcut to the thermostat will appear on the phone’s desktop. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 56: Check Device Network

    Select „Check Device Network”. right corner. The app will start testing the Wi-Fi ...after a positive test result, the app connection with the thermostat... will show you detailed parameters, e.g. signal strength, device IP and MAC address. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 57: Device Update

    Select „Check for available right corner. software updates”. Check this option if you want the Confirm. From now on, whenever there is a thermostat software to always new software, the thermostat will update automatically. start updating. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 58: Alarms / Push Notifications / Emergency States

    Check if you connected the wires correctly or if the thermostat is not turned off in the app. Enter the „Me” menu. Select a message center. Jump between the Alarm, Home and Bulletin tabs one by one to find a message or notification about your thermostat. E10W230WIFI(E10B230WIFI) - FULL MANUAL...
  • Page 59 * When the thermostat detects an error related to the external sensor (see section 8.4.6.2), it will display the following message. See the previous page for a solution. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 60: Remove Device

    To remove the E10 thermostat from your account, follow these steps: Click and hold the thermostat icon. Select the device Then confirm. and click „Remove device”. Click „Done”. The device has been removed and will disappear from the main screen. E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 61: Cleaning And Maintenance

    Input S1 – S2 or Air temperature measurement Control output COM / NO (volt free) IP class IP30 86 x 86 x 39 mm Dimensions [mm] (14 after mounting in a Φ60 mm box) 86 mm 86 mm E10W230WIFI(E10B230WIFI) - FULL MANUAL...

  • Page 62: Warranty

    13. Warranty ENGO Controls warrants this product to be free from any defects in material or workmanship and to perform as specified for a period of five years from the date of installation. ENGO Controls reserves the sole responsibility for breach of this warranty by repairing or replacing the defective product. This product includes software that matches the distributor’s identification at the time of sale.
  • Page 64 Ver. 1 Date of issue: II 2022 Power supply: 2xAA batteries Distributor: QL CONTROLS Sp z o.o. Sp. k. 43-262 Kobielice 4 Rolna St. Poland www.engocontrols.com...
