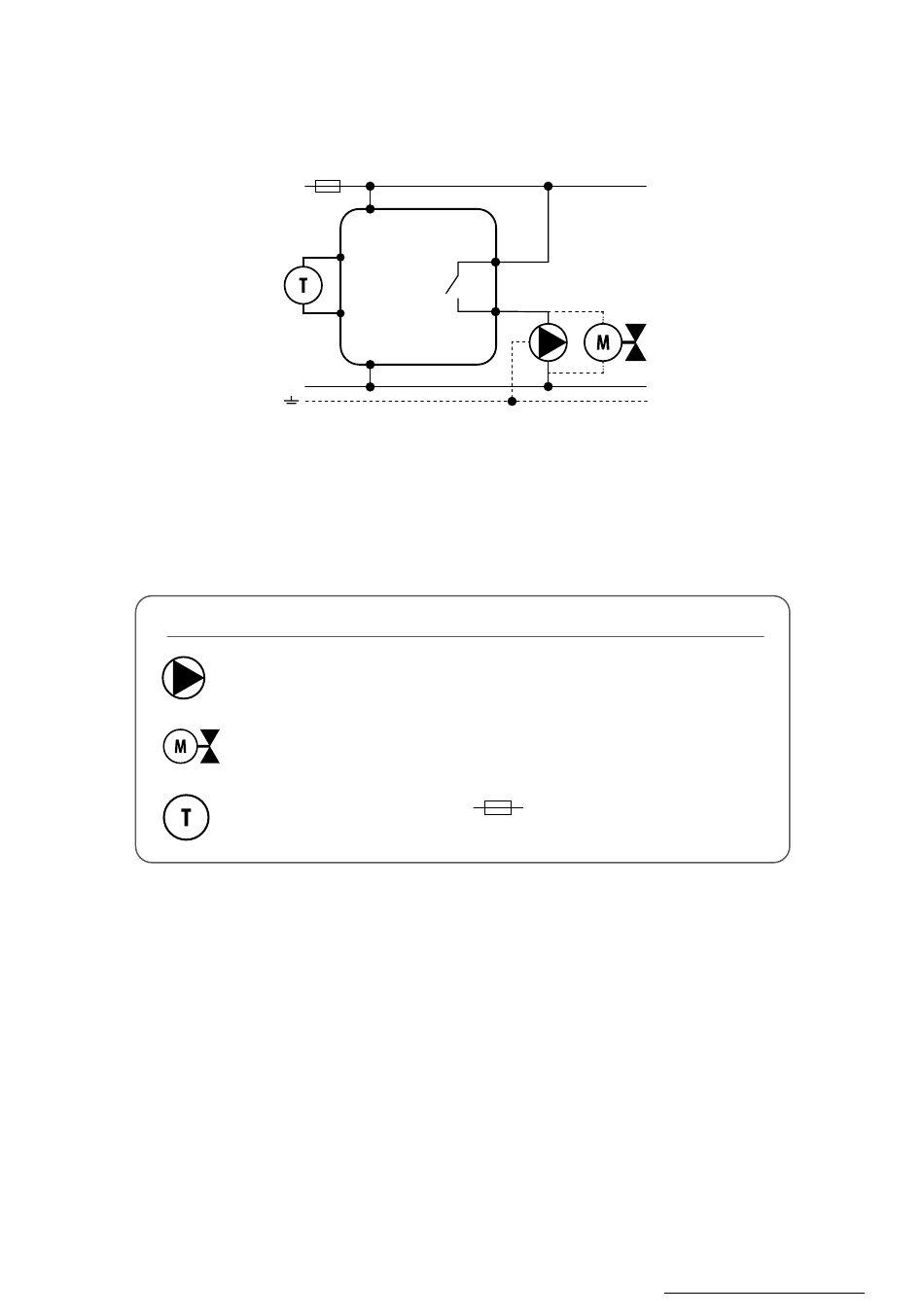

3.2 Connection diagram to pump / actuator

AC 230V
L
L
S1
E10W230WIFI
S2
N
N
Pump
Valve
Temperature sensor
COM
MAX
3(1)A
NO
Legend:
L, N - power supply
COM, NO - voltage-free output
S1, S2 inputs - output for temperature sensor
- fuse
E10W230WIFI(E10B230WIFI) - FULL MANUAL
9
