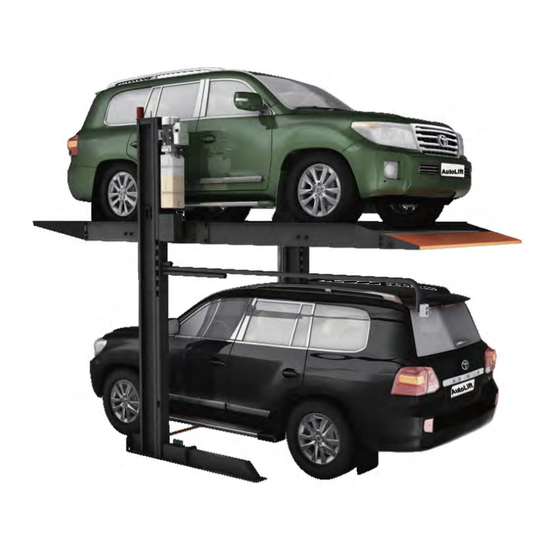

AutoLift AL-1132-220
Professional Two Post Parking Hoist
INSTALLATION MANUAL
& OPERATION
INSTRUCTIONS
~ READ THE ENTIRE CONTENTS OF THIS MANUAL BEFORE
INSTALLATION AND OPERATION. BY PROCEEDING YOU AGREE THAT
YOU FULLY UNDERSTAND AND COMPREHEND THE FULL CONTENTS
OF THIS MANUAL. FORWARD THIS MANUAL TO ALL OPERATORS.
FAILURE TO OPERATE THIS EQUIPMENT AS DIRECTED MAY CAUSE
INJURY OR DEATH.
Specifications subject to change without notice.
Note: While all due care and attention has been taken in the preparation of this document, Advance AutoQuip shall not be liable for any inaccuracies or omissions
which may occur therein
Advance AutoQuip
2 McDonald Crescent | Bassendean WA 6054
Ph: 08 9279 1663 | Fax: 08 9279 1667 | E: sales@aaq.net.au | W: www.aaq.net.au
Advertisement
Table of Contents
Related Manuals for AAQ AutoLift AL-1132-220
Summary of Contents for AAQ AutoLift AL-1132-220
- Page 1 Note: While all due care and attention has been taken in the preparation of this document, Advance AutoQuip shall not be liable for any inaccuracies or omissions which may occur therein Advance AutoQuip 2 McDonald Crescent | Bassendean WA 6054 Ph: 08 9279 1663 | Fax: 08 9279 1667 | E: sales@aaq.net.au | W: www.aaq.net.au...
-
Page 2: Table Of Contents
AutoLift AL-1132-220 Installation & Operation Manual INSTALLATION & MAINTENANCE MANUAL FOR AUTOLIFT TWO POST AL-1132-220 PARKING HOIST 3200Kg MAXIMUM LIFTING CAPACITY INDEX 1. Introduction …………………………………………………………… 2. Hoist introduction ………………………………………………………… 3 3. Hoist transport …………………………………………………………… 4. Hoist assemble …………………………………………………………… 4 5. Control system introduction ……………………………………………... -
Page 3: Introduction
AutoLift AL-1132-220 Installation & Operation Manual 1. Introduction 1.1 General Information AL-1132-220 is a two post hydraulic parking hoist. You should read the manual carefully before you operate the hoist, the hoist must be installed by a competent person, please refer to current WorkSafe regulations Australian Standards AS/NZS 1418.9 VEHICLE HOISTS . -
Page 4: Hoist Transport
AutoLift AL-1132-220 Installation & Operation Manual 2.2 Hoist dimensions Size code Size name value/mm remark Device length 4318 Platform length 4166 Device width 2658 Other models see actual size Device height 3497.5 Other models see actual size Can be adjusted according to users’... - Page 5 AutoLift AL-1132-220 Installation & Operation Manual 4.1.3 Check the working environment of the hoist. Don't use the hoist in a damp environment. Keep good ventilation and enough light of the use area. 4.1.4 Only trained person can operate the parking equipment. The staff untrained should keep away from the working area.
- Page 6 AutoLift AL-1132-220 Installation & Operation Manual 4.3 Tools required to install the hoist Hammer, Level, Open spanner, Socket head wrench, Adjustable spanner, Crow bar Chalk or color pen, Flat screw driver, Tape measure (5m), Nipper pliers. Concrete Foundation Fastening the hoist to the ground Concrete Foundations MAX.
- Page 7 AutoLift AL-1132-220 Installation & Operation Manual 4.4 Install steps 4.4.1 Feed no 1 oil hose from the top, down through the square conduit and connect to the bottom of the cylinder. Connect no 2 oil hose to the bottom of the hydraulic cylinder and run the hose to the opposite side to the other cylinder.
- Page 8 AutoLift AL-1132-220 Installation & Operation Manual 4.4.2 Erect the column, connect the column base support and the column with the bolt on the front leg of column and the oil hose guide slot. Connect the carriage connection plate and the platform side beam with the bolt.
- Page 9 AutoLift AL-1132-220 Installation & Operation Manual Hexagon bolt with full screw M12X45 Flat washer C grade Φ12 Chart (10) Hexagon bolt M12 Grade A Type I hexagon nut with coarse screw M20 Standard spring washer 20 Flat washer C grade...
- Page 10 AutoLift AL-1132-220 Installation & Operation Manual 4.4.5 Connect the oil hose. According to 4.4.1, oil hose 1 and the oil hose 2 will be connected with cylinders. The other end of the oil hose 1 connect the power pack... hose 1...
- Page 11 AutoLift AL-1132-220 Installation & Operation Manual 4.4.7 Pull the chain out from the another carriage chain pulley and fix it on the top support of the column. 4.4.8 Connect the locking hoist The live knot bearing and the lock release pull rod connect the manual lock release device, the nut on the pull rod adjust the tightness of the pull rod.
- Page 12 AutoLift AL-1132-220 Installation & Operation Manual Chart (23) bottom view Chart (24) the view after conceal the wave plate 4.4.10 Install electric lock release Install the electromagnet according to the following diagram. 4.4.11 Install the down photocell sensor. 4.4.12 Install upper limit switch Adjust the installation height according to the actual parking requirements.
- Page 13 AutoLift AL-1132-220 Installation & Operation Manual 4.4.13 Control arm installation of the button box. 4.4.14 Use base plate of post as a template to drill hole using a hammer drill. These holes should be about 120mm deep. After drilling the hole, clear the inside of the hole and check the alignment of the base plate and chalk line.
- Page 14 AutoLift AL-1132-220 Installation & Operation Manual 4.4.15 If the column is uneven to the ground, you need to insert U-type shims to adjust. After fixing the anchor bolt, the column will be even with the ground. 4.4.16 Adjust the distance A1=B1 and A=B between the two columns. Add the shim to adjust when the distance is unequal（A1＞B1).
-
Page 15: Control System Introduction
AutoLift AL-1132-220 Installation & Operation Manual 4.4.18 Rotate the key switch on the control box to raise the hoist. 4.4.19 When the hoist has raised to the highest position, stop rotating the key switch, avoid damage. 4.4.20 If you want to lower down, you should let it rise some distance, (about 10-20mm), and then unlock automatically. -
Page 16: Hoist Operation
AutoLift AL-1132-220 Installation & Operation Manual 5.3 Troubleshooting Troubleshooting Possible Cause Remedy The fuse of control circuit is burned. Check and change the burned fuse. There is no response The power cord is open circuit. Check the wire circuit to confirm the wire when rotating the key connection is right. -
Page 17: Hoist Maintenance And Repair
AutoLift AL-1132-220 Installation & Operation Manual The hoist can only be used by the trained operator . Only the staff authorized can stay on the hoist site. When move and assemble the medium parts, safety bracket should be used. 6.2 Raising the hoist 6.2.1 Drive the car on the appropriate position of the platform. - Page 18 3200 kg AutoLift 1132-220 Parking Hoist OPERATING INSTRUCTIONS The hoist should only be operated by personnel that have been thoroughly trained in operation and maintenance of the hoist. Drive top vehicle onto the elevating platform. Vehicles can be driven in nose first or backed in. Drive until the top vehicle's forward tyres rest against the forward wheel stop.
- Page 19 SAFETY OPERATING PROCEDURES Vehicle Hoist DO NOT use this machine unless you have been instructed in its safe use and operation and have been given permission PERSONAL PROTECTIVE EQUIPMENT Safety glasses must be worn at Long and loose hair must be Do not stand on hoist whilst all times in work areas.
- Page 20 AutoLift AL-1132-220 Installation & Operation Manual 7.2 Troubleshooting Troubleshooting Possible Cause Remedy Lift with idle load to the highest position, and keep for seconds and then lower down, when lowered to There is air in the hydraulic oil. the half height, screw to open the oil hose The motor works, no connector, discharge the air and then screw down.
- Page 21 AutoLift AL-1132-220 Installation & Operation Manual (b)The distance of platform to ground is less than 2100mm but more than 500mm, if you keep turning the key to DOWN: the platform will lift up for 3 to 5 seconds, then the mechanical lock will be released automatically and the platform start to descend.
-
Page 22: Ordering Information
AutoLift AL-1132-220 Installation & Operation Manual 4. Check if the emergency stop button is open and air switch is closed, if the equipment doesn’t lift up when keep turning UP. 5. Check if the solenoid valve is open, if the platform only lift up but not descend, or it don’t move at all when keep turning DOWN. - Page 23 AutoLift AL-1132-220 Installation & Operation Manual 1. Confirm the platform width W2 You can compute the platform maximum width W2 according to your site space and the following formula. W2=W3+16=[（W-467-(N-1) ×321)÷N]+16…………………………………（8.1） W---site width. Choose an appropriate value according to your site space.
- Page 24 AutoLift AL-1132-220 Installation & Operation Manual Compute: 1、compute the platform width W2 W2=[（W-467-(N-1) ×321)÷N）]+16 =[（5200-467-（2-1）×321）÷2]+16 =2222mm Verify: 1）2222mm＜2300mm,OK。 2）W4=（W2-16-1950）÷2 =（2222-16-1950）÷2 =128mm>60mm OK 3)when adopt the standard width, that is W1=2100hour W3 =(2100-16-1950）÷2 =67mm>60mm That is to shorten the delivery period, you can choose the standard platform width, that is the platform width is 2100mm.
-
Page 25: Warranty
THIS WARRANTY SUPERSEDES ALL OTHER WARRANTY POLICIES PREVIOUSLY STATED AND IN ALL OTHER ADVANCE AUTOQUIP’s PRODUCT SPECIFIC LITERATURE. Advance AutoQuip 2 McDonald Crescent | Bassendean WA 6054 Ph: 08 9279 1663 | Fax: 08 9279 1667 | E: sales@aaq.net.au | W: www.aaq.net.au... -
Page 26: Commissioning Report
2. Hoist Details Model No: 2 McDonald Crescent Hoist Type: Bassendean WA 6054 Installation Date: P: 08 9279 1663 | E: sales@aaq.net.au 3. Commissioning Report Comments Safety Devices Safety devices incorporated into the design of the vehicle to AS/NZS 1418.9 Welds... - Page 27 COMMISSIONING REPORT Location of Vehicle Hoist & Vehicle Clearances Vehicle hoist or any part of the load is positioned no less than 600mm away from any fixed structure Provisions have been made for effective clearances above the vehicle when the hoist is in its fully raised position.
