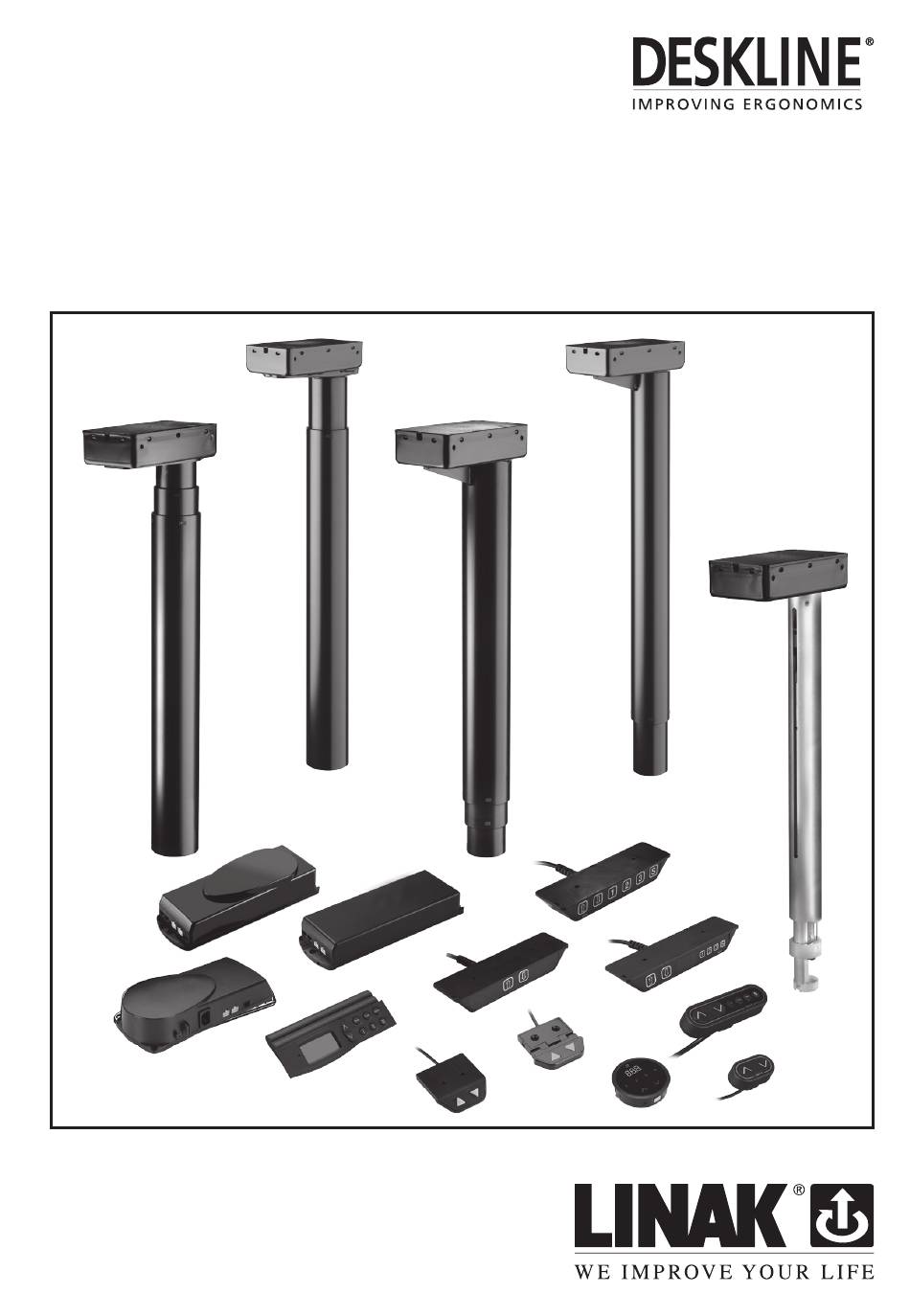

U S E R M A N U A L
Columns with round
profiles system (DL8,
DL9, DL10, DL11 and DB9)
To learn more about LINAK please visit:
W W W . L I N A K . C O M
Page 1 of 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESKLINE DL9 and is the answer not in the manual?

Questions and answers

Summary of Contents for Linak DESKLINE DL9

  • Page 1 U S E R M A N U A L Columns with round profiles system (DL8, DL9, DL10, DL11 and DB9) To learn more about LINAK please visit: W W W . L I N A K . C O M Page 1 of 32...
  • Page 2 Page 2 of 32...
  • Page 3: Table Of Contents

    Initialisation of the DESKLINE DL8/DL9/DL10/DL11 parallel system .............. 17 Anti-Collision ..............................18 DL11 with PIEZO : description of the feature ....................19 Disposal of LINAK’s products ........................... 20 Labels ................................. 21 Drawing appendix ............................. 23 Declaration of conformity ..........................28 Addresses ................................32...
  • Page 4: Preface

    LINAK subsidiaries and distributors all over the world have authorised service centres, which are always ready to help you. LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance with the specifications, maintenance being done correctly and any repairs being carried out at a service centre, which is authorised to repair LINAK products.
  • Page 5: Important Information

    Important information Important information on LINAK products can be found under the ® following headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed.
  • Page 6: Before Installation, Re-Installation Or Troubleshooting

    • Make sure that the voltage of the control box is correct before the system is connected to the mains. • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation: •...
  • Page 7 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 8: Repairs

    Repairs In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK ® workshops or repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops.
  • Page 9: Warranty

    (see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In the event of this, the warranty will be ineffective/invalid.
  • Page 10: Description Of The Deskline System

    Description of the DESKLINE system ® Each DESKLINE ® actuator/column is equipped with a motor and parallel/memory drive is ensured by means of software in the CBD4/CBD5/CBD6 that also takes account of an uneven load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk.
  • Page 11: Mounting Guidelines For The Dl8/Dl9/Dl10/Dl11 (Motor Housing)

    Mounting guidelines for the DL8/DL9/DL10/DL11 system Mounting guidelines for DL8/DL9/DL10/DL11 (motor housing) The motor housing is supplied with 6 M6 threaded holes meant for mounting onto the desk frame. We advise you to fasten the desk frame by means of 6 pcs. M6 screws of a good quality (min. 8.8) and a suitable length, which must not go further into the motor housing than max.10 mm.
  • Page 12: Mounting Guidelines For The Dl8 And Dl9 (Foot Part)

    Mounting guidelines for the DL8 and DL9 (foot part) The DL8/DL9 is supplied with 4 M6 threaded holes for the mounting of the foot. We advise you to fasten the foot by means of 4 pcs. M6 screws of a good quality (min. 8.8) and of a suitable length, which must not go further into the DL8/DL9 column than 20 mm.
  • Page 13: Mounting Guidelines For The Db9

    Mounting guidelines for the DB9 For detailled information on how to mount the DB9, please contact LINAK. Figure 3 (DB9 fixing points) The DB9 must not be activated when it is not mounted in guidance due to the risk of squeezing.
  • Page 14 If this is the case, the problem may be solved by placing an iron plate/tube or another magnetic material, somewhat larger than the motor housing, between the motor and the desktop. LINAK recommends that the DESKLINE DL8/DL9/DL10/DL11 system should only be used in push ®...
  • Page 15: Mounting Guidelines Cbd4/Cbd5/Cbd6

    Mounting guidelines CBD4/CBD5/CBD6 The control box is to be fastened with 4 screws (3 screws for CBD5 and CBD6) with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up.
  • Page 16: Electrical Connection Of The Dl8/Dl9/Dl10/Dl11 System

    The earth connection does not protect other electrical products. CBD4/CBD5 with mains cut-off (non ZERO models) If the power cable is damaged it has to be replaced by an authorized LINAK service centre to avoid any danger. Mains cable...
  • Page 17: Initialisation Of The Deskline Dl8/Dl9/Dl10/Dl11 Parallel System

    Initialisation of the DESKLINE DL8/DL9/DB9/DL10/DL11 parallel system Press the down button and the legs/actuators run down to the “buffer” causing cut-off due to excess current. Hereafter they run approx. 3 mm (from software version 1.66, previosely 5 mm) upwards and thereby free of the “buffer”.
  • Page 18: Anti-Collision

    Anti-Collision™ The function anti-collision is a new option for the standard CBD4/CBD5/CBD6 advanced control box. A system with anti-collision can limit material damages to a desk if a collision with a solid object should occur. Anti-collision is working for DL9. The other DL types require a configuration of the control box. Enabling the anti-collision To enable the anti-collision function a little plug called a dongle must be mounted in one of the 2 control ports.
  • Page 19: Dl11 With Piezo

    DL11 with PIEZO™: description of the feature For optimised safety against squeezing and blocking on a desk, LINAK has developed a DL11 columns with integrated sensor, called PIEZO. The new option minimises the risk for damages on a desk caused by squeezing or blocking of obstacles in up and down direction.
  • Page 20: Disposal Of Linak's Products

    Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion.
  • Page 21: Labels

    Labels for DL8 and DL9 Labels for DL10 and DL11 Labels for DB9 Page 21 of 32...
  • Page 22 Label for CBD4 Label for CBD5 Label for CBD6 Page 22 of 32...
  • Page 23: Drawing Appendix

    DRAWING APPENDIX DESKLINE Columns with round profiles system: ® Page 23 of 32...
  • Page 24 DL10 Page 24 of 32...
  • Page 25 DL11 DL11 PIEZO Page 25 of 32...
  • Page 26 CBD4 CBD5 Page 26 of 32...
  • Page 27 CBD6 Page 27 of 32...
  • Page 28 Page 28 of 32...
  • Page 29 LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
  • Page 30 Page 30 of 32...
  • Page 31 Page 31 of 32...
  • Page 32 +65 6844 0070 correct and actual status of said information on its products. E-mail: servodynamics@servo.com.sg COLOMBIA While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the www.servo.com.sg MEM Ltda same reasons as mentioned above, guarantee the availability of any...

This manual is also suitable for:

Deskline dl8Deskline dl10Deskline dl11Deskline db9
