DL8, DL9, DL10 and DL11 system
User manual
LINAK.COM/DESKLINE
Page 1 of 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Linak DL8

Summary of Contents for Linak DL8

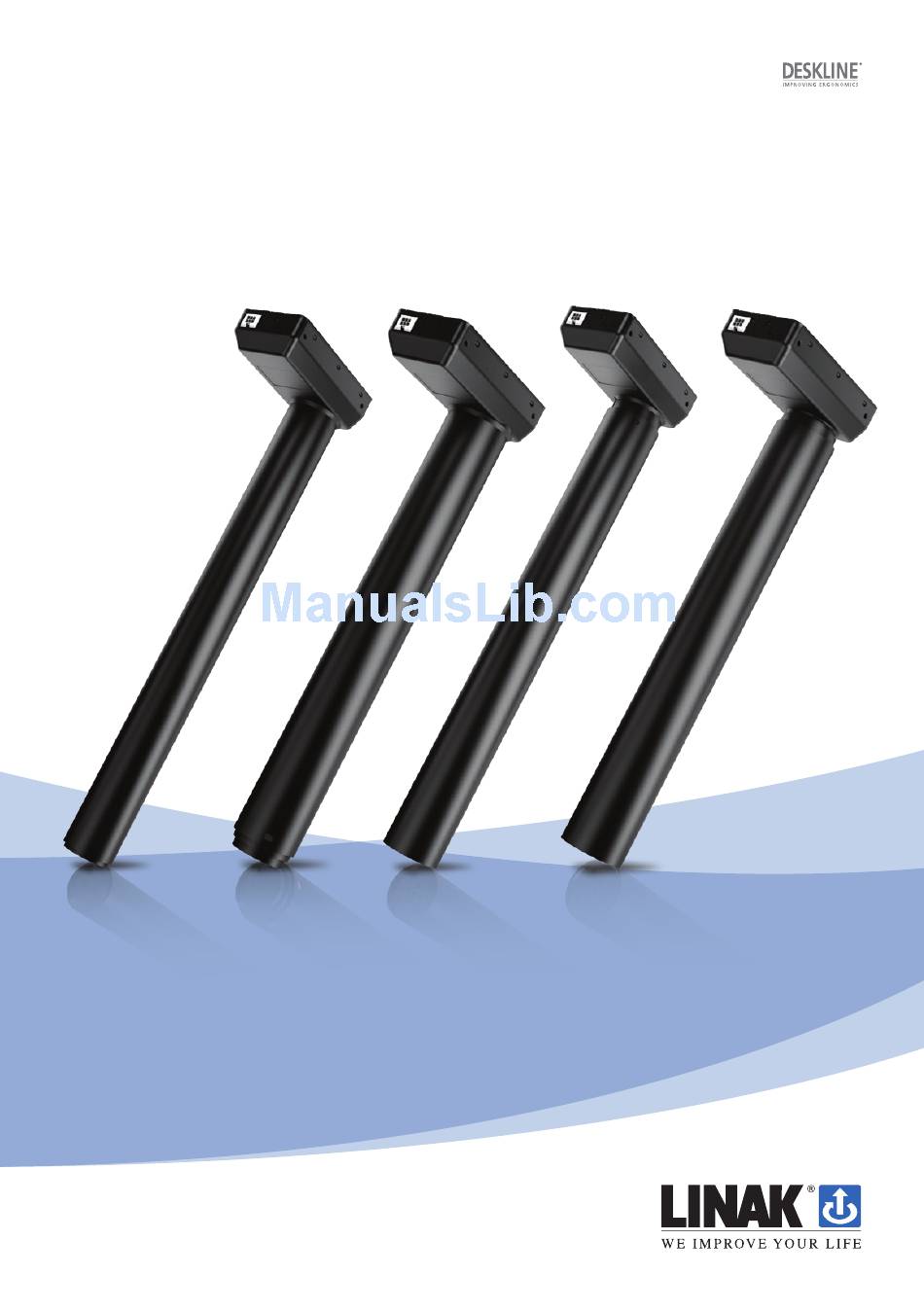

  • Page 1 DL8, DL9, DL10 and DL11 system User manual LINAK.COM/DESKLINE Page 1 of 32...

  • Page 2: Table Of Contents

    Description of the DESKLINE system ..................9 ® Mounting guidelines for the DL8/DL9/DL10/DL11 (motor housing) ..........10 Mounting guidelines for the DL8/DL9 (foot part) ................. 11 Mounting guidelines for the DL10/DL11 (foot part) ..............11 Mounting for the desk (misc.) ..................... 12 Mounting guidelines CBD4/CBD5/CBD6 ..................

  • Page 3: Preface

    This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety information from this manual is passed on to the end-user.

  • Page 4: Important Information

    Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed.

  • Page 5: Before Installation, Re-Installation Or Troubleshooting

    • System connection. The individual parts must be connected before the control box is connected to the mains. See the User Manual for LINAK actuators, if necessary. During operation: • If the control box makes unusual noises or smells, switch off the mains voltage immediately.

  • Page 6: Only For Eu Markets

    Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 7: Repairs

    Repairs In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried out by authorised LINAK workshops or ® repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops.

  • Page 8: Dl8/Dl9/Dl10/Dl11 System

    Misc. on the DESKLINE DL8/DL9/DL10/DL11 system ® Warranty - 60 months on DESKLINE (NEW) ® This will be valid for all DESKLINE products produced after the 1 of May 2015. ® Products produced before 1 of May 2015 will still be covered by 36 months.

  • Page 9: Description Of The Deskline ® System

    The system range contains the following products: • 1 control box CBD4/CBD5/CBD6 • DL8, DL9, DL10 or DL11 (1 - 3 (4)) • 1 exchangeable mains cable • motor cables (1 - 3 (4)) •...

  • Page 10: Mounting Guidelines For The Dl8/Dl9/Dl10/Dl11 (Motor Housing)

    Mounting guidelines for the DL8/DL9/DL10/DL11 system Mounting guidelines for DL8/DL9/DL10/DL11 (motor housing) The motor housing is supplied with 6 M6 threaded holes meant for mounting onto the desk frame. We advise you to fasten the desk frame by means of 6 pcs. M6 screws of a good quality (min. 8.8) and a suitable length, which must not go further into the motor housing than max.10 mm.

  • Page 11: Mounting Guidelines For The Dl8/Dl9 (Foot Part)

    DL8/DL9 column than 20 mm. The thrust moment must not exceed 10 Nm in the bottom plate thread. The 4 holes in the bottom of the DL8/DL9 are placed on a Ø 42 mm diameter circle.
  • Page 12 Mounting guidelines for the DL11 (foot part) The DL11 is supplied with 4 M6 and 2 M8 threaded holes for mounting of the foot. We advise you to fasten the foot by means of 4 pcs. M6 screws or 2 pcs M8 screws of a good quality (min. 8.8) and of a suitable length. The holes in the foot ought to be sufficiently larger than ø6 so that it is possible to bring the foot to a level line at assembly/mounting.

  • Page 13: Mounting For The Desk (Misc.)

    Mounting of the desk (misc.) As the desktop amplifies the sound, we advise you to place a vibration/ shock absorbing material between the desktop and the desk frame. With a desktop thickness of 25 mm, it is necessary for the lowest edge of the lifting unit to be mounted max. 15 mm above floor level to obtain a desk height of only 600 mm in the lowest position.
  • Page 14 LINAK recommends that the DESKLINE DL8/DL9/DL10/DL11 system should only be used in push applications with ® the motor housing uppermost.

  • Page 15: Mounting Guidelines Cbd4/Cbd5/Cbd6

    Mounting guidelines CBD4/CBD5/CBD6 The control box is to be fastened with 4 screws (3 screws for CBD5 and CBD6) with a head diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø 10 mm is preferable due to lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up.

  • Page 16: Electrical Connection Of The Dl8/Dl9/Dl10/Dl11 System

    Electrical connection of the DL8/DL9/DL10/DL11 system The systems is to be connected as shown on figure 7. Each DL8/DL9/DL10/DL11 is to be connected to the sockets on the control box by means of the motor cables, which have a 6-pin plug in each end.

  • Page 17: Initialisation Of The Deskline Dl8/Dl9/Dl10/Dl11 Parallel System

    The first two times the system runs into the outward end stop, it will automatically run approx. 3 mm back in inward direction. The CBD5 and CBD6 can control the DL8/DL9/DL10/DL11 in 2 parallel while the CBD4 can control in 2, 3, and 4 parallel so that the desk is always kept horizontal.

  • Page 18: Anti-Collision

    Anti-Collision™ The function anti-collision is a new option for the standard CBD4/CBD5/CBD6 advanced control box. A system with anti- collision can limit material damages to a desk if a collision with a solid object should occur. Anti-collision is working for DL9. The other DL types require a configuration of the control box. Enabling the anti-collision To enable the anti-collision function a little plug called a dongle must be mounted in one of the 2 control ports.

  • Page 19: Dl11 With Piezo : Description Of The Feature

    DL9 and DL11 with PIEZO™: description of the feature For optimised safety against squeezing and blocking on a desk, LINAK has developed a DL11 columns with integrated sensor, called PIEZO. The new option minimises the risk for damages on a desk caused by squeezing or blocking of obstacles in up and down direction.

  • Page 20: Disposal Of Linak's Products

    Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classifi cation to different waste fractions for recycling or combustion. Guidance We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or combustion.

  • Page 21: Labels

    Labels Labels for DL8 and DL9 Labels for DL10 and DL11 Label for CBD4 Label for CBD5 Page 21 of 32...
  • Page 22 Label for CBD6 Page 22 of 32...

  • Page 23: Drawing Appendix

    DRAWING APPENDIX Page 23 of 32...
  • Page 24 Drawing No.: DL9_STANDARD Drawing No.: DL9_STANDARD Standard DL9 1210 29.7 4xM6 4xM6 2xM6 Page 24 of 32...
  • Page 25 Drawing No.: DL9XL_STANDART Drawing No.: DL9XL_STANDART Extended version DL9XL 1710 11.5 29.7 4xM6 4xM6 2xM6 Page 25 of 32...
  • Page 26 DL10 Drawing No.: DL10_STANDARD Drawing No.: DL10_STANDARD 1145 645 2 4xM6 32.53 4xM6 2xM6 Page 26 of 32...
  • Page 27 DL11 1210 32.53 4xM6 4xM6 2xM8 2xM6 Drawing No.: DL11_STANDARD_560_2017 DL11 PIEZO 1210 32.53 4xM6 4xM6 2xM8 2xM6 Page 27 of 32...
  • Page 28 Drawing No.: DL11_STANDARD_965_2017 DL11XL 1705 32.53 4xM6 4xM6 2xM8 2xM6 CBD4 Page 28 of 32...
  • Page 29 CBD5 CBD6 Page 29 of 32...
  • Page 30 Page 30 of 32...
  • Page 31 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
  • Page 32 While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
