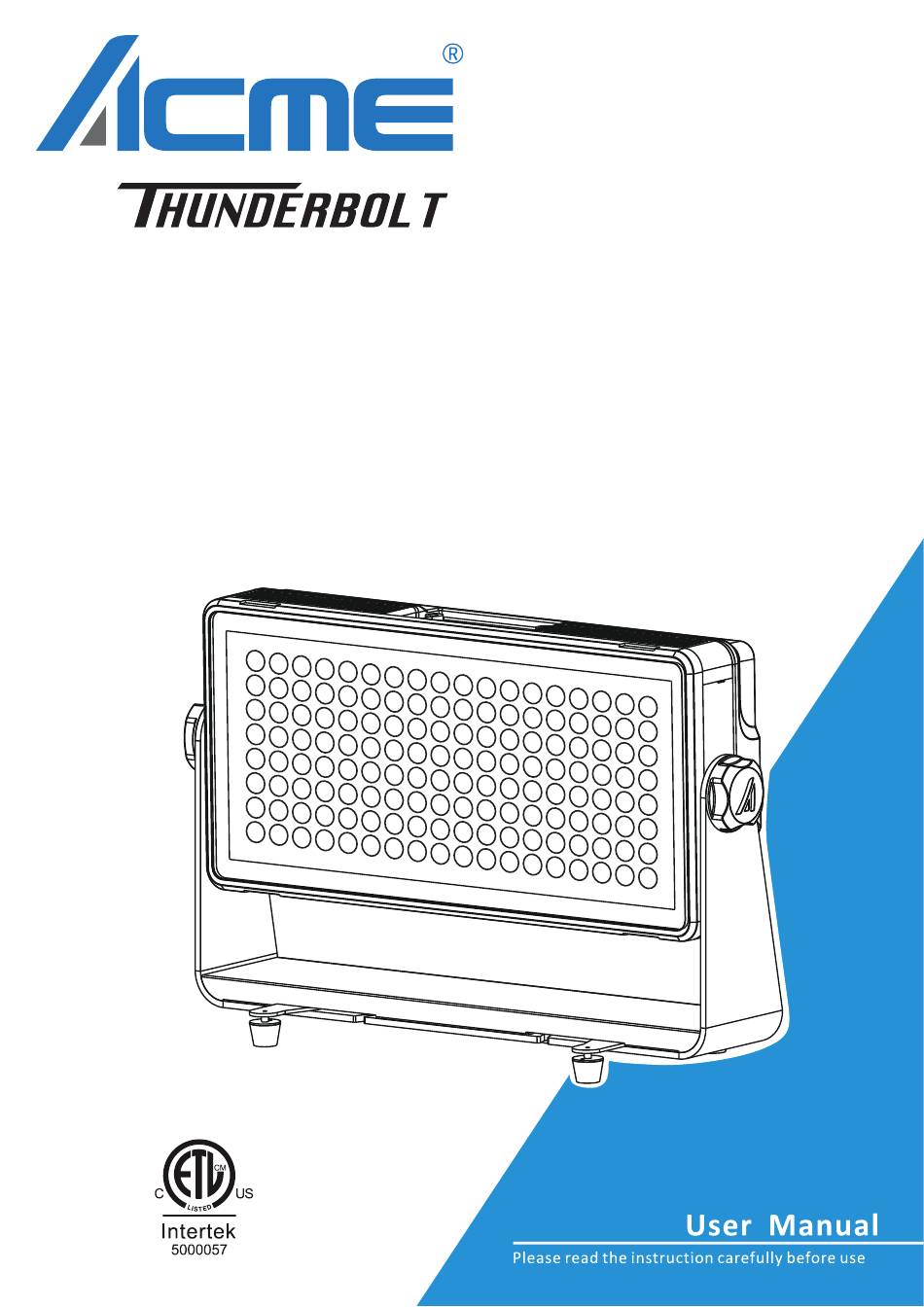

ACME THUNDERBOLT User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for ACME THUNDERBOLT

Summary of Contents for ACME THUNDERBOLT

  • Page 2: Table Of Contents

    Menu 1. Safety Instructions ..........................2 2. Technical Specifications ........................6 3. Installation and Connection ......................4 4. How to set the unit ...........................7 4.1 Rear Panel ............................7 4.2 Main Function..........................8 5. How to control the unit ........................14 6. DMX512 configuration ........................14 7. DMX512 Connection........................17 8.Troubleshooting ..........................17 9.

  • Page 3: Safety Instructions

    1. Safety Instructions Please read the instruction carefully which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 4 DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.  DO NOT touch any wire during operation as there might be a hazard of electric shock.  Avoid entanglement of the power cord with other wires. ...
  • Page 5 1. Consignes de sécurité Veuillez lire attentivement les instructions qui contiennent des informations importantes sur l'installation, l'utilisation et l'entretien. ATTENTION Veuillez conserver ce guide de l'utilisateur pour une consultation future. Si vous vendez l'appareil à un autre utilisateur, assurez-vous qu'il reçoive également ce manuel d'instructions. Important: Les dommages causés par le non-respect de ce manuel d'utilisation ne sont pas couverts par la garantie.
  • Page 6 Assurez-vous que le cordon d'alimentation n'est pas pincé ou endommagé; remplacez-le  immédiatement s'il est endommagé. La température de surface de l'unité peut atteindre 65℃. NE PAS toucher les capots à mains  nues pendant son fonctionnement. Évitez que des liquides inflammables, de l'eau ou du métal ne pénètrent dans l'appareil. Si cela ...

  • Page 7: Technical Specifications

    2. Technical Specifications 11 channel Modes;   Ideal for discotheques, clubs, bars, parties, Mobile DJs, etc.  Input Voltage: 100-240V~ 50/60Hz  Total Power consumption: 1580W  Power Cord Daisy Chain: 1Fixtuer(120V); 2 Fixtuer(220V);  Beam Angle: 22°  IP Grade: IP 65 ...

  • Page 8: How To Set The Unit

    4. How to set the unit 4.1 Rear Panel Display: Show the various menus and the selected functions； ○ Button： ○ MENU To select the programming functions...

  • Page 9: Main Function

    DOWN To go forward in the selected functions To go backward in the selected functions ENTER To confirm the selected functions Breathable punishment ○ Power input/output ○ For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal, and to link the next unit. DMX input/output: ○...
  • Page 10 Network Art-Net Settings 1-32000 Sacn Settings Sacn Settings 0-200 sACN Priority Auto Connect Option Art-Net sACN Standard Power Mode Quiet RDM UID xxxxxxxxxxxx Fixture Errors Error Logs Reset Error Log...
  • Page 11 DMX Settings Enter MENU mode, select DMX settings, confirm by pressing ENTER on, and use UP / DOWN on to select: DMX Address, Ethernet Setup and Connect Option. DMX Address Select the DMX Address, press enter to confirm, and the current DMX Address will be displayed on the display screen.
  • Page 12 Dimmer curve Select the Dimmer curve, press the ENTER button. Use the DOWN and UP button to select the curve you need. Once selected, press the ENTER button to setup or exit menu mode without any change after 30 seconds. Back to the functions without any change press the MENU button again. Dimmer mode 1 Dimmer mode 2 Dimmer mode 3...
  • Page 13 Language Language Select the , press the ENTER button to confirm. Use the UP and DOWN button to adjust English or Chinese .Once selected, press the ENTER button to store. Press the MENU button back to the last menu without any change or idling 30 seconds to exit menu mode. Manual Test Select the Manual Mode, press the ENTER button to confirm.
  • Page 14 Error Logs To select Error Logs, press the ENTER button to confirm. Use the UP/DOWN button to select Fixture Errors or Reset Error Log, press the ENTER button to store. To select Reset Error Log, press the ENTER button to confirm, use the UP/DOWN button to select No or Yes, press the ENTER button to store.

  • Page 15: How To Control The Unit

    5. How to control the unit 1. By DMX controller； No need to turn the unit off when you change the DMX address, as new DMX address setting will be affected at once. Turn on the unit, under the DMX signal , the LED will display the saved channel address （001-512）.

  • Page 18: Dmx512 Connection

    7. DMX512 Connection Mode connection： 1. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120-ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit.

  • Page 19: Fixture Cleaning

    B. Not responding to DMX controller 1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly. 2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3.
  • Page 22 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 2014/30/EU. EN 55032: 2015; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013 ; EN 55035: 2017. &...
