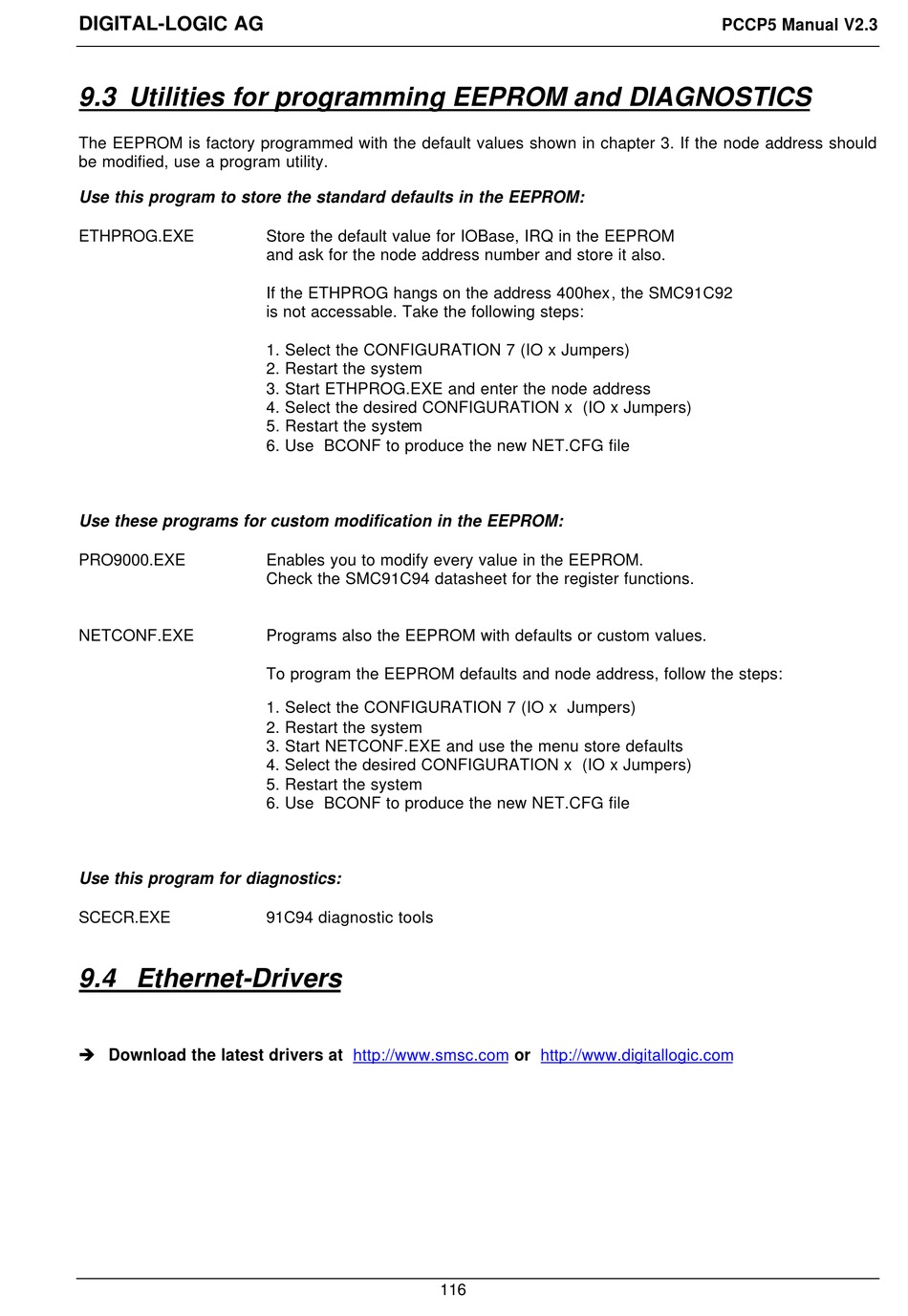

9.3 Utilities for programming EEPROM and DIAGNOSTICS

The EEPROM is factory programmed with the default values shown in chapter 3. If the node address should
be modified, use a program utility.
Use this program to store the standard defaults in the EEPROM:
ETHPROG.EXE
Use these programs for custom modification in the EEPROM:
PRO9000.EXE
NETCONF.EXE
Use this program for diagnostics:
SCECR.EXE

9.4 Ethernet-Drivers

è Download the latest drivers at
Store the default value for IOBase, IRQ in the EEPROM
and ask for the node address number and store it also.
If the ETHPROG hangs on the address 400hex, the SMC91C92
is not accessable. Take the following steps:
1. Select the CONFIGURATION 7 (IO x Jumpers)
2. Restart the system
3. Start ETHPROG.EXE and enter the node address
4. Select the desired CONFIGURATION x (IO x Jumpers)
5. Restart the system
6. Use BCONF to produce the new NET.CFG file
Enables you to modify every value in the EEPROM.
Check the SMC91C94 datasheet for the register functions.
Programs also the EEPROM with defaults or custom values.
To program the EEPROM defaults and node address, follow the steps:
1. Select the CONFIGURATION 7 (IO x Jumpers)
2. Restart the system
3. Start NETCONF.EXE and use the menu store defaults
4. Select the desired CONFIGURATION x (IO x Jumpers)
5. Restart the system
6. Use BCONF to produce the new NET.CFG file
91C94 diagnostic tools
http://www.smsc.com or http://www.digitallogic.com
