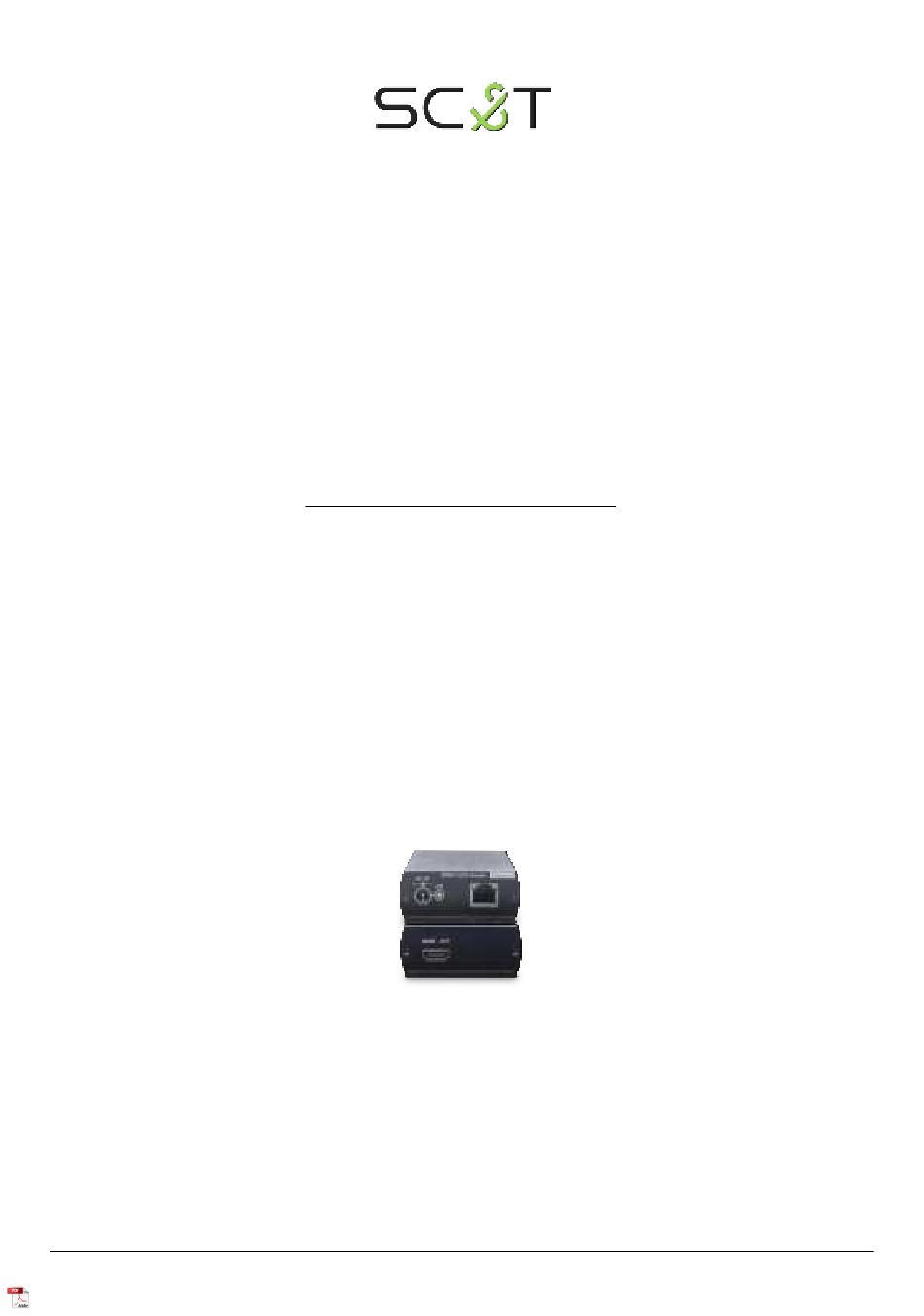

- Page 1 HDMI over IP Extender User Manual Model : HE03 HDMI CAT5e Extender with HDMI Loop Out 150M Smart Cabling & Transmission Corp.
-
Page 2: Installation View
Introduction HE03 is an HDMI extender that can use a cost-effective Ethernet cable to send HDMI signal for up to 150M with resolution up to 1080p@60Hz. Its TX unit has a loop out port that can connect an extra HDMI display. - Page 3 User Manual HE03 Economic HDMI over IP Extender, support point to many connections via network switch LED Indication Power GREEN on (power) Link BLUE on (linking) Flash (low-power mode) Panel View 1. Transmitter 2. Receiver LED Indication Status Green LED:...
- Page 4 User Manual HE03 RJ45 Define Link Cable (TIA/EIA-568-B) 1. Orange-white Data 1 + 2. Orange Data 1 - 3. Green-white Data 2 + 4. Blue Data 3 + 5. Blue-white Data 3 - 6. Green Data 2 - 7. Brown-white Data 4 + 8.
-
Page 5: Specification
User Manual HE03 Specification ITEM NO. HE03T HE03R Support Compliance HDMI 1.3b, HDCP Max. Video Resolution 1080p@60Hz Max. Transmission Distance 150M over CAT5e, 160M over CAT6 cable Ports & Interfaces Video Input 1 x HDMI Type A 1 x RJ45...
