- Page 1 User manual IVP 1000 Pet SF...

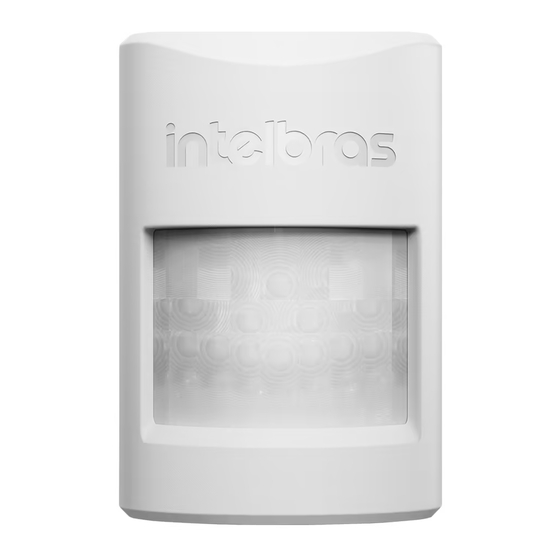

- Page 2 IVP 1000 Pet SF Wireless passive infrared motion sensor Congratulations, you have just purchased a product with Intelbras quality and safety. The IVP 1000 Pet SF motion sensor features passive infrared ray detection technology, with advanced signal analysis technology that prevents accidental triggering.
- Page 3 Pet function may be impaired in order to nullify the Pet immunity. » LGPD – General Personal Data Protection Law: Intelbras does not access, transfer, capture or perform any other type of processing of personal data from this product.
- Page 4 Scan (top view) 90° Detection range (side view) 2 – 2,40 metros zone zero 12 m...
-
Page 5: Table Of Contents
Summary 1. Technical specifications 2. Characteristics 3. Product 4. Installation 5. Sensitivity setting 6. Operation 7. Test 8. Low battery sensor 9. Battery replacement 10. Homologation Warranty term... -
Page 6: Technical Specifications
1. Technical specifications Battery LITHIUM CR123A 3 V Operational current 14 mA Consumption at rest 4 uA Detection angle 90° Detection range 12 metros Detection method Immunity to crawling animals Up to 20 kg Sensitivity adjustment 3 levels (1P – 2P – 3P) Startup time Up to 60 seconds Operating Temperature... -
Page 7: Product
3. Product 1. Cabinet; 2. Fresnel lens; 3. PROG button; 4. Sensitivity selector switch; 5. red LED; 6. Pyro sensor; 7. Battery; 8. Antenna. 4. Installation The sensor must be installed on a flat, fixed, flicker-free surface with a height between 2.0 and 2.4 meters. It is recommen- ded to install the sensor parallel to the wall for the greatest detection range. -
Page 8: Sensitivity Setting
Important: the IVP 1000 Pet SF was designed for indoor and closed areas and with the presence of animals of up to 20 kg, so do not use it for protection of outdoor or open areas and with the presence of animals of more than 20 kg. -
Page 9: Operation
6. Operation When energizing the sensor, it runs in test mode for 15 minutes so that all sensor positioning adjustments can be made. During this period, at any motion detection the LED lights up and a trigger is generated. After the test mode, the sensor goes into economic operating mode, so that when it detects movement it turns on the LED, triggers and goes into hibernation, remaining for a period that can last from 30 seconds (environment with little movement) up to 2 minutes (environment with a lot of movement). -
Page 10: Low Battery Sensor
8. Low battery sensor The IVP 1000 Pet SF sensor controls the battery level and if it is critical (equal to or below 2.5V) it sends the information to the control panel during triggering. In addition, the sensor also signals through the LED, after each activation of the sensor the LED lights up (as usual) and then flashes indicating low battery. -
Page 11: Warranty Term
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated). - Page 12 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 01.22 CNPJ 82.901.000/0016-03 –...
