Antenna Specifications For North America - Digi Connect EM DC-EM02T-JT Hardware Reference Manual

Specifications

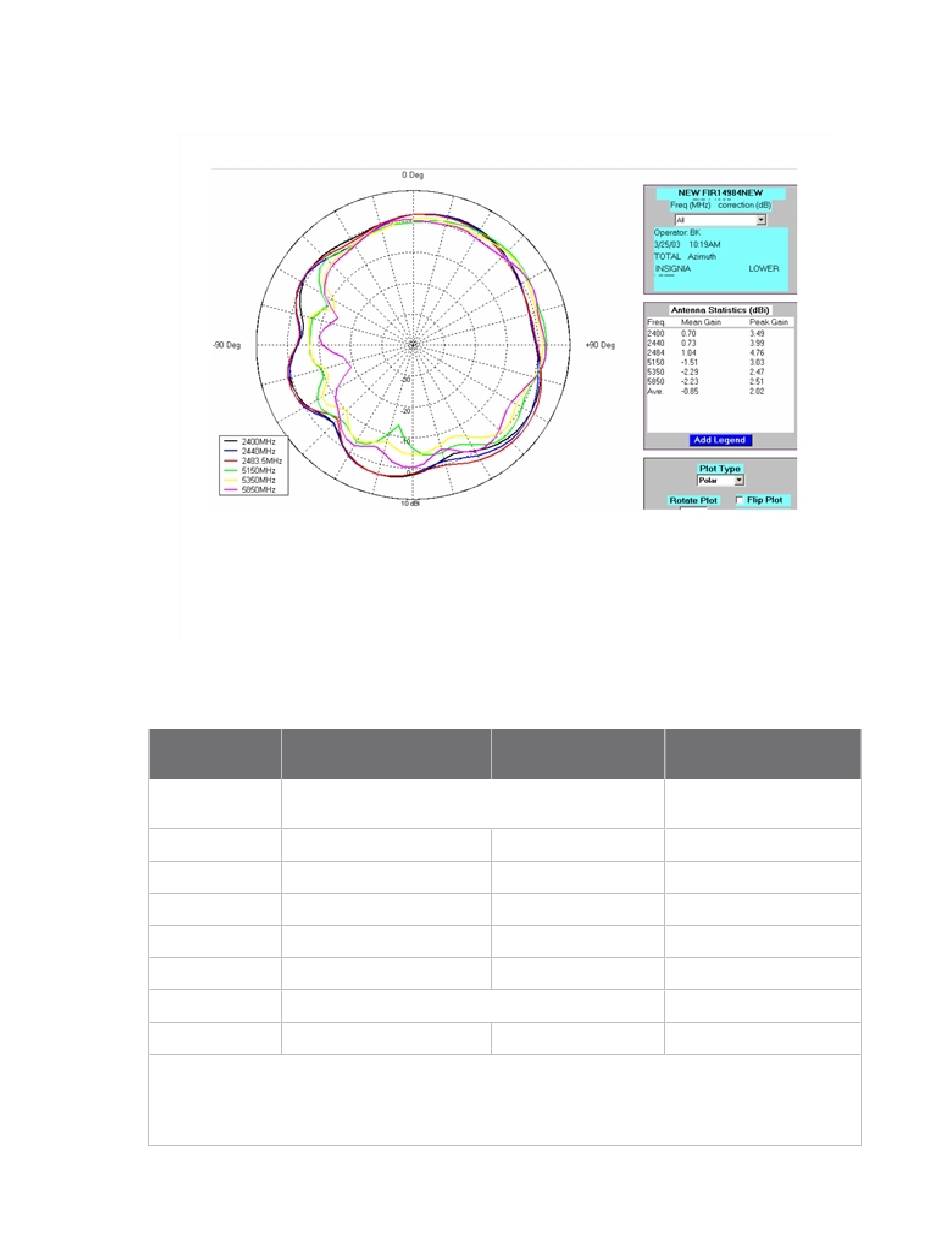

Radiation patterns for PCB mount antenna

Antenna specifications for North America

Antenna
Description
Frequency
Power Output
DB Gain
VSWR
Dimension
Weight
Connector
Part Number
*
* The PCB mount antenna requires a RP-SMA to U.FL adapter cable(s), or a customized version of
the Digi Connect Wi-EM module with an integrated U.FL cable (single antenna). Please contact Digi
sales for specific availability information.
Digi Connect EM and Digi Connect Wi-EM Hardware Reference
Dipole
2.4~2.5GHz
2W
2dBi
< or = 2.0
108.5 mm x 10.0 mm
10.5g
RP-SMA
DG-ANT-20DP-BG
Desktop
1W
1.8dBi
1.92 max.
105 mm x 4.5 mm
11g
DC-ANT-24DT
Antenna information
*PCB Mount
2.4~2.5 GHz
4.9~5.9GHz
10W
>2dBi
< 2.5
24.13 x 10.67 mm
< 1g
U.FL
DG-ANT-20CB-AG
