About the Embedded module
part number DC-EM-02T-S or DC-EM-02T-C is appropriate when its integrated LEDs and RJ-45
Ethernet connectors are accessible and visible to the end-users of your product. The Digi Connect EM
module part number DC-EM-02T-NC or DC-EM-02T-JT is the right choice when you want more
control over RJ-45 Ethernet connector and LED locations or when you will provide custom connectors
or indicators.
The Digi Connect Wi-EM module part number DC-WEM-02T-C or DC-WEM-02T-S is appropriate
when its integrated LEDs are accessible and visible to the end-users of your product. The Digi Connect
Wi-EM module part number DC-WEM-02T-JT or DC-WEM-02T-NC is the right choice when you want
more control over LED locations or when you will provide custom connectors or indicators.
Please refer to the Digi website www.digi.com for part number and ordering information for the
modules.

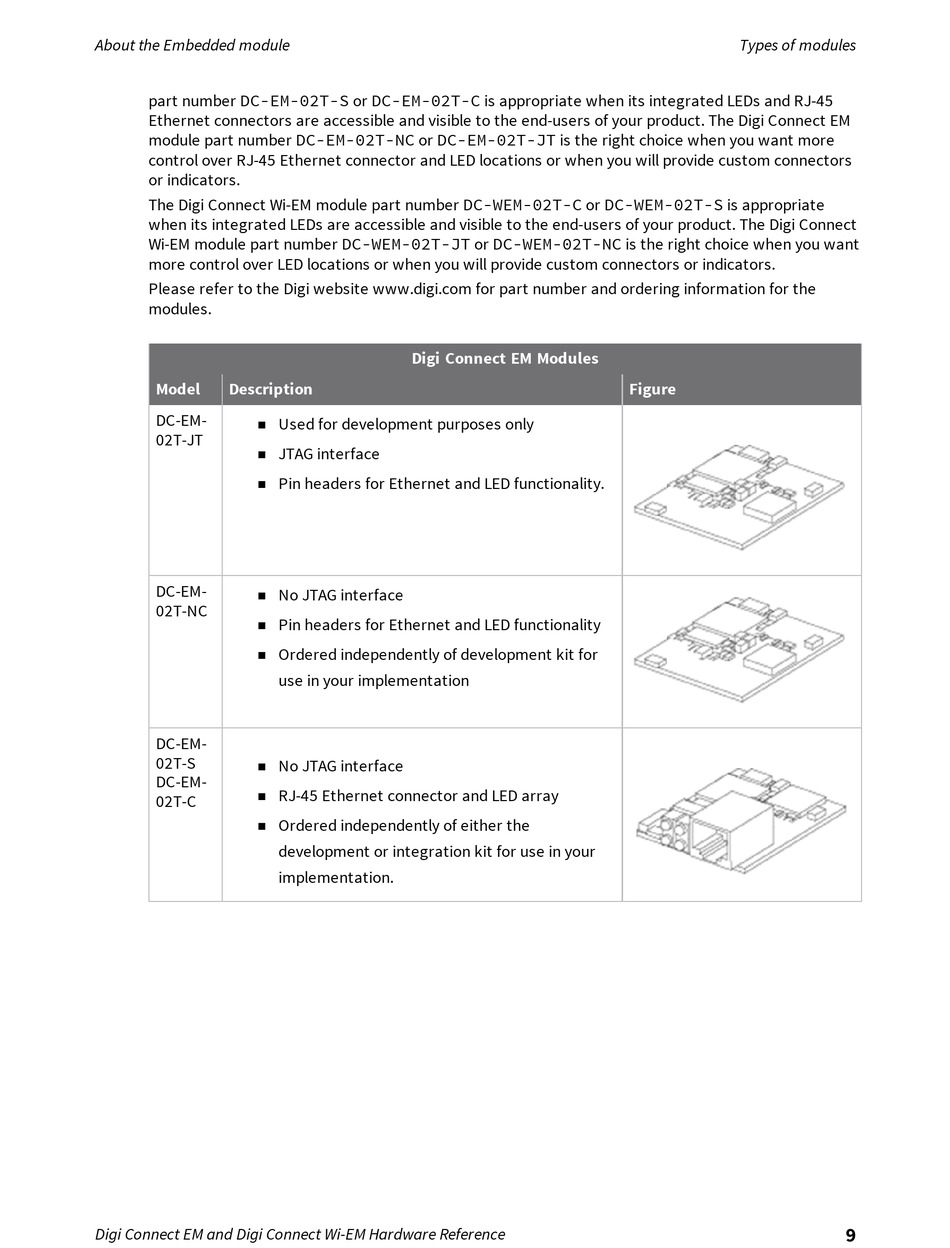

Model Description
DC-EM-
n
02T-JT
n
n
DC-EM-
n
02T-NC
n
n
DC-EM-
02T-S
n
DC-EM-
n
02T-C
n
Digi Connect EM and Digi Connect Wi-EM Hardware Reference
Digi Connect EM Modules
Used for development purposes only
JTAG interface
Pin headers for Ethernet and LED functionality.
No JTAG interface
Pin headers for Ethernet and LED functionality
Ordered independently of development kit for
use in your implementation
No JTAG interface
RJ-45 Ethernet connector and LED array
Ordered independently of either the
development or integration kit for use in your
implementation.
Types of modules
Figure
9
