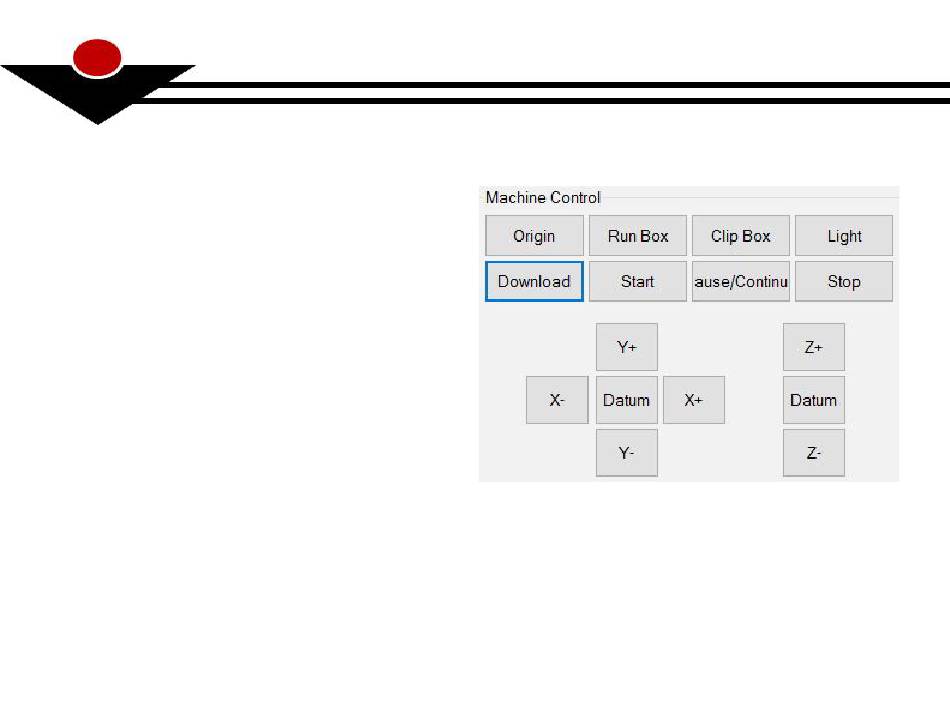

Machine Controls
Machine control is to finish downloading of Image, starting &
processing and some simple machine operation control.
Origin: set the current laser head position as origin
Start: start work for the current selected file in control panel
Use/continue: click 【Use/continue】 to suspend or continue the
work.
Stop: stops machine from working.
Run box: laser head will run rectangle shape according to the
size of file data. The option is mainly used to confirm the placed
position of parts to be processed
Clip box: cut completed part from working material
Light: press/Release [Light] to turn on or turn off the laser.
Datum: Click the button, laser head(or z-axes) will move to
machine origin slowly, when reach the limit position of machine,
will move quickly to located position. This can get rid of
cumulative errors, and shall apply for one time before starting
work normally.
[ X- ] [ X+ ] [ Y- ] [ Y+ ] [ Z- ] [ Z+ ] : Moves laser head(or Z-axes)。
Press the button, laser head (or Z-axis) starts to move; Release
the button, laser head(or Z-axis) stops moving.
