Manufacturer Parameters
READ
Click

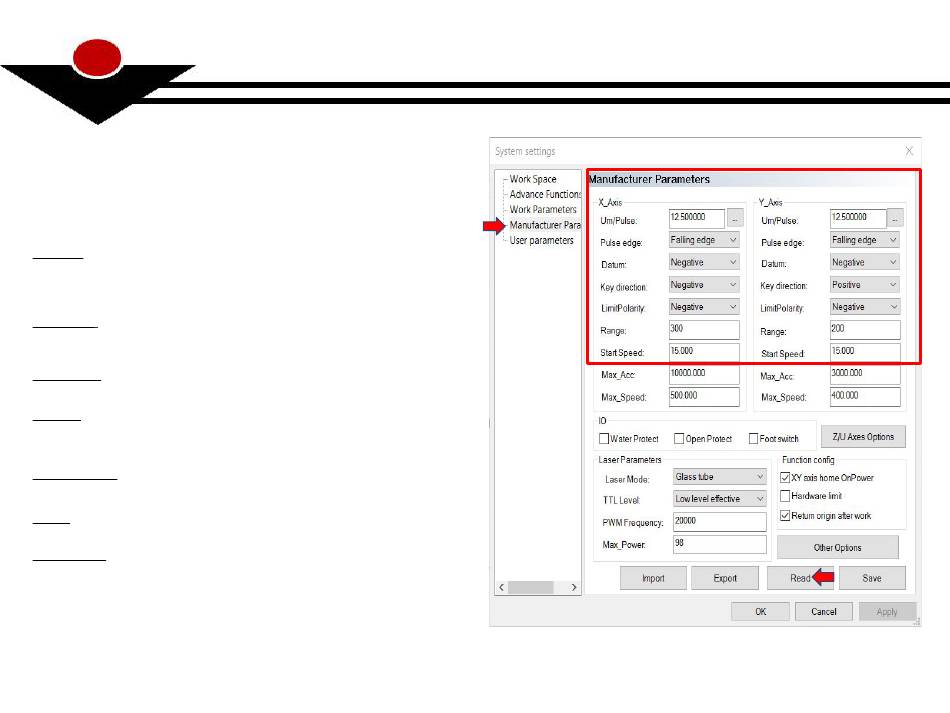

on this page before adjusting anything as shown on the right
and save the settings.
The Um/Pulse for the X-axis and the y-axis will be the main settings that will
be adjusted. This is where you adjust the dimensions of the image to the
expected value. This will make your image more precise.
X/Y/Z/U- Axis Parameter (Z axis: Elevating axis; U- axes: Feeding axis) (Refer
to View 3-3-2) Click on [Z/U-Axis Options] to allow setting the parameter of
Z axis and U axis
Pulse
Unit:
When sending a pulse to the motor, the absolute distance
moved by the corresponding axis (unit: um). If the pulse unit setting is not
correct, the processed image size will be different from the actual size.
Pulse Edge: Trigger edge when motor is rotated by motor driver. If the
pulse edge setting is not correct, may lead to cutting error.
Datum: Axis moving direction when reset。When the axial resetting
movement direction is not consistent with the shaft limit switch, modify
this parameter.
Key Direction: LCD Panel key movement direction. When the direction is
different from movement, modify this parameter.
Range: Machine workbench range; the max movement distance of
corresponding axis.
Start Speed: Start speed of axis from stationary state. The greater the
value, the faster the speed,which causes longer pauses. Necessary to make
reasonable adjustments according to the characteristics of task being done.
The typical setting should be within 5 ~ 20 mm/s.
