LIGHT OBJECT LO-E5 Manual page 17

14

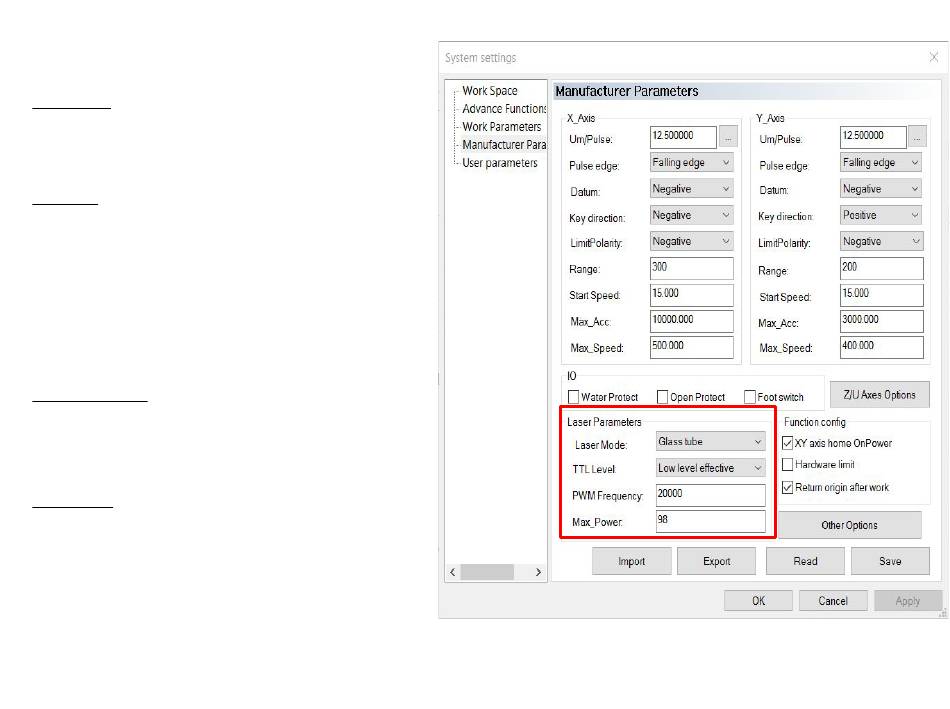

Laser Parameters
Laser Mode: Choose the parameters according to the
external laser. The current lasers are mainly 3 kinds:
domestic glass tube, RF laser (don't need burning pulse) and
radio frequency laser (needs burning pulse).
TTL Level: Choose the parameters according to external laser
power supply switch signals, AWC708 laser switch signals
corresponds with Laser1.TTL and Laser2.TTL. If [Low level
effective] is selected, when laser is on, the system will output
the two signals for low level; when laser is off, the system
will output the two signals for high level. If [High level
effective] is selected, when laser is on, the system will output
the two signals for high level; when laser is off, the system
will output the two signals for low level.
PWM Frequency: Pulse frequency of control signal used by
external laser. General setting will be within 20000~80000. If
setting is too small, it will lead to unbalanced power with
"Heavy Point" appearing during processing.
Max Power: Limit power value that can be set for laser,
namely during operation. The power set by user cannot be
above this value.
