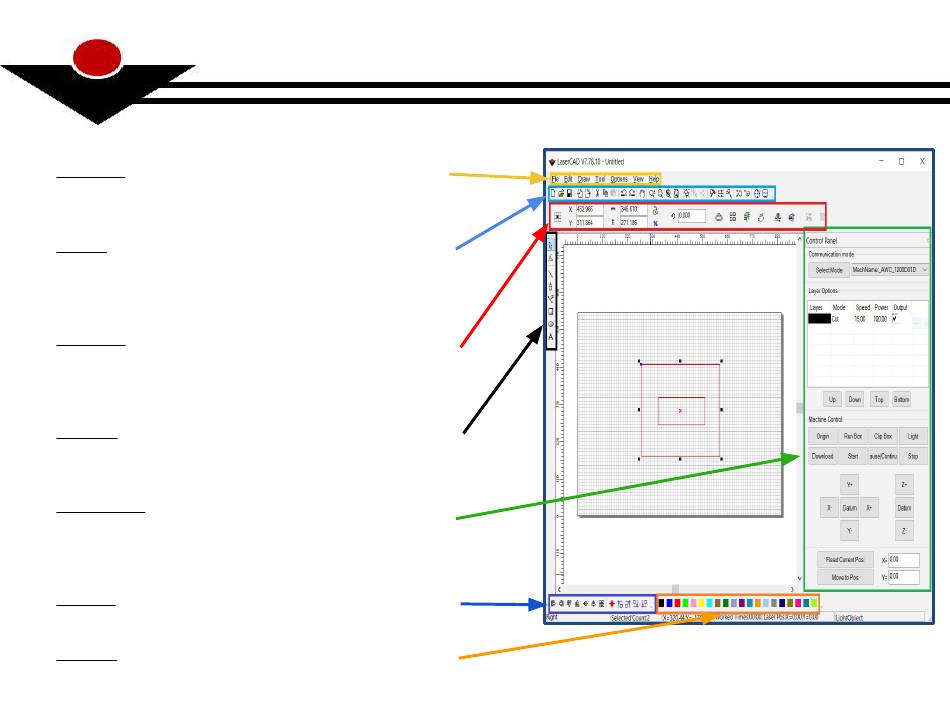

LaserCAD Main Interface
Menu Bar: Menu Bar includes 7 submenus: File, Edit, Draw,
Tool, Options, View and Help.
Toolbar: There are some functions completed by command
buttons in the Toolbar. Most of these functions are sorted from
menu bar.
Object Bar: Allows selecting object during operation and
relevant properties during using tool. It can control the change
of object by setting relevant properties in property bar.
Draw Bar: With draw tool in draw bar, it makes operation more
flexible and convenient.
Control Panel: Use control panel to finish several tasks of laser
machining, including setting communication IP, setting layer
parameter, loading graphic and so on.
Align Bar: Aligns multiple objects to perfect the layout of page.
Color Bar: Changing different colors allow different options for
each layer to be set.
