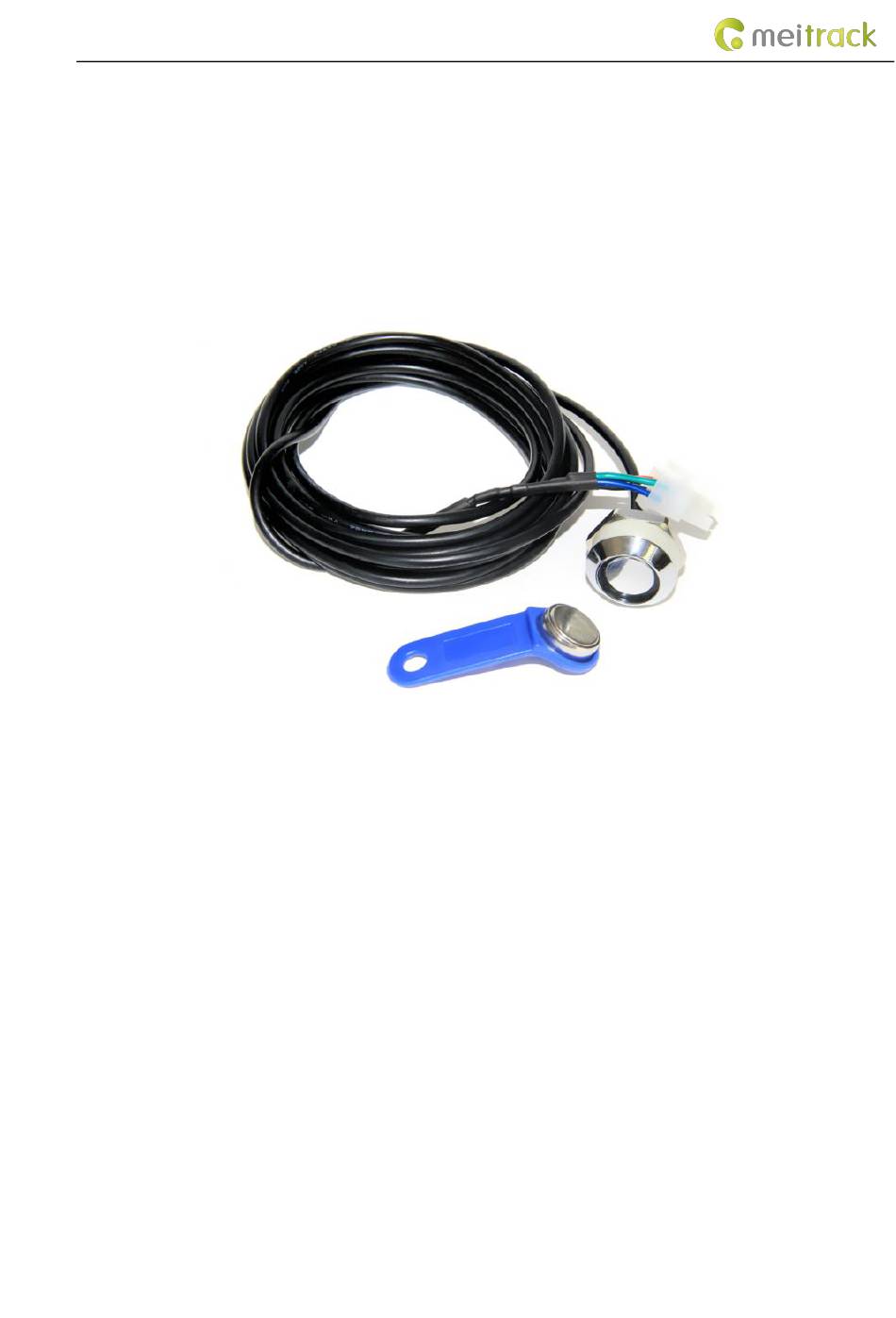

- Page 1 User Guide MEITRACK iButton MEITRACK iButton User Guide Applicable Model: T1/T333/MVT600/T622...
- Page 2 File Name MEITRACK iButton User Guide Created By Owen Cheng Creation Date 2015-08-13 Project T1/T333/MVT600/T622 Update Date 2015-11-23 Subproject Accessory User Guide Total Pages Version V1.0 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
7.2 iButton Control Output (Starting the Engine) ........................- 6 - 7.3 How iButton Works ................................- 8 - 7.4 Configuring iButton by Meitrack Manager .........................- 8 - 7.5 Configuring iButton by MS03 ..............................- 9 - 7.5.1 Authorizing iButton Keys ............................- 9 - 7.5.2 Deleting Authorized iButton Keys ..........................- 10 -... -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: Ibutton Functions
After the iButton reader is connected to a tracker, once the iButton key touches the reader, the reader will be activated. If output 2 is connected to a buzzer, a "beep" sound will be made. Copyright © 2015 Meitrack Group All rights reserved. - 5 -... -
Page 6: Using Ibutton
Input 3 of the tracker is connected to the engine detection cable. An iButton key has been authorized. Output 1 of the tracker is connected to the engine control cable through a relay, as shown in the following figure. Copyright © 2015 Meitrack Group All rights reserved. - 6 -... - Page 7 MEITRACK iButton Note: For details about how to authorize an iButton key, see the section 7.5.1 "Authorizing iButton Keys." The RFID control output 1 function has been enabled by Meitrack Manager or MS03. Copyright © 2015 Meitrack Group All rights reserved.
-
Page 8: How Ibutton Works
1 of the tracker will be triggered (engine cut-off), and thus the driver cannot start the vehicle. At the moment, if you want to start the engine, you must swipe the iButton key again. 7.4 Configuring iButton by Meitrack Manager Connect your tracker to a computer and run Meitrack Manager. Copyright © 2015 Meitrack Group All rights reserved. - 8 -... -
Page 9: Configuring Ibutton By Ms03
User Guide MEITRACK iButton Meitrack Manager will automatically detect the device, and the Device tab page for default parameters is displayed. Select Authorize. On the tab page that is displayed, select RFID on the GPRS column. Note: If this RFID option is deselected, the MS03 platform cannot collect statistics on iButton event reports after you swipe an iButton key. -
Page 10: Deleting Authorized Ibutton Keys
Select one or multiple trackers, select the Delete authorized RFID numbers in batches command, specify From the RFID number and Quantity, and click Send command. If only one authorized iButton key needs to be deleted, set Quantity to 1. Copyright © 2015 Meitrack Group All rights reserved. - 10 -... -
Page 11: Managing Ibutton Keys
On the Management window that is displayed, select Driver Info from Use Normal. The Driver Info window is displayed. Click . On the Add driver window that is displayed, add driver information, and click Submit. Copyright © 2015 Meitrack Group All rights reserved. - 11 -... -
Page 12: Querying Reports On Ms03
You can query a driver's driving mileage, parking duration, time and location of starting or stopping the vehicle by driver I/O status report. 8 Querying Reports on MS03 On MS03, iButton alarm event reports can be obtained from the RFID alarm event reports. Copyright © 2015 Meitrack Group All rights reserved. - 12 -... -
Page 13: Event Report
8.2 Driver I/O Status Report On the Reports window, select Driver IO status report from Use Normal. The Driver IO status report window is displayed. Copyright © 2015 Meitrack Group All rights reserved. - 13 -... - Page 14 Note: In this report, input 3 is connected to the engine detection cable. You can obtain the driver's driving duration, mileage, and parking duration from this report. If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2015 Meitrack Group All rights reserved.
