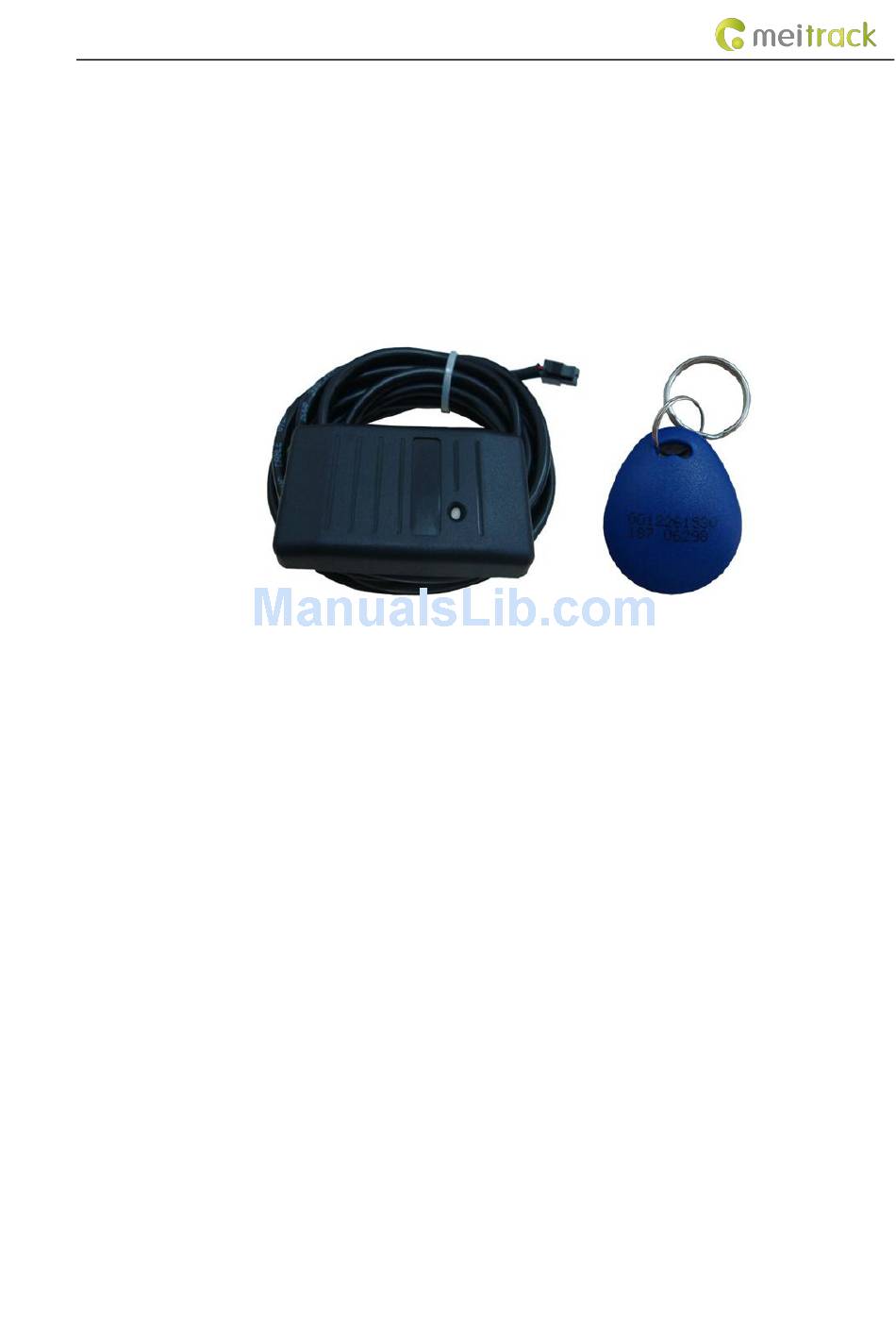

- Page 1 MEITRACK RFID User Guide MEITRACK RFID User Guide Applicable Model: T1/T333/MVT600...
- Page 2 File Name MEITRACK RFID User Guide Created By Tracy Lv Creation Date 2013-10-16 Project T1/T333/MVT600 Update Date 2015-09-09 Subproject Accessory User Guide Total Pages Version V1.6 Confidential External Documentation Copyright © 2015 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
6.1 RFID Control Output 1 (Starting the Engine)........................- 6 - 6.2 How RFID Works .................................- 7 - 6.3 Configuring RFID by Meitrack Manager ..........................- 7 - 6.4 Configuring RFID by MS03 ..............................- 8 - 6.4.1 Authorizing RFID Cards in Batches ...........................- 8 - 6.4.2 Deleting Authorized RFID Cards in Batches ......................- 8 -... -
Page 4: Copyright And Disclaimer
The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: Installing The Rfid Reader
RFID reader's status after it is connected to a tracker After the RFID reader is connected to a tracker (T1/T333/MVT600), power on the tracker, then the indicator of the RFID reader will blink red. When you swipe the RFID card on the RFID reader, the indicator of the RFID reader will blink green and a "beep"... -
Page 6: Using Rfid
Note: For details about how to authorize a RFID card, see the section 6.4.1 "Authorizing RFID Cards in Batches." The RFID control output 1 function has been enabled by Meitrack Manager or MS03. Copyright © 2015 Meitrack Group All rights reserved. -
Page 7: How Rfid Works
Connect your tracker to a computer and run Meitrack Manager. Meitrack Manager will automatically detect the device, and the Device tab page for default parameters is displayed. Select Authorize. On the tab page that is displayed, select RFID on the GPRS column. -
Page 8: Configuring Rfid By Ms03
Select one or multiple trackers, select the Delete authorized RFID numbers in batches command, specify From the RFID number and Quantity, and click Send command. If only one authorized RFID card needs to be deleted, set Quantity to 1. Copyright © 2015 Meitrack Group All rights reserved. - 8 -... -
Page 9: Managing Rfid Cards
On the Management window that is displayed, select Driver Info from Use Normal. The Driver Info window is displayed. Click . On the Add driver window that is displayed, add driver information, and click Submit. Copyright © 2015 Meitrack Group All rights reserved. - 9 -... - Page 10 To manage RFID cards, driver information must be added first. You can query a driver's driving mileage, parking duration, and time and location of starting the vehicle by driver I/O status report. Copyright © 2015 Meitrack Group All rights reserved. - 10 -...
-
Page 11: Querying Reports On Ms03
Select a tracker and RFID from the Event drop-down list, set the query time, and click . The results about RFID readers will be displayed, as shown in the following figure. Copyright © 2015 Meitrack Group All rights reserved. - 11 -... -
Page 12: Driver I/O Status Report
Note: In this report, input 3 is connected to the engine detection cable. You can obtain the driver's driving duration, mileage, and parking duration from this report. 8 Firmware Version T1 firmware supports standard version and RFID version. Standard version: The firmware can be compatible with the Copyright © 2015 Meitrack Group All rights reserved. - 12 -... - Page 13 T1_Y50V131–T1_Y50V157: The firmware supports RFID version. T1_Y50401 or later: The firmware supports RFID version. T1B_V001 or later: The firmware supports standard version and RFID version. You can select a peripheral by Meitrack Manager, as shown in the following figure. ...
