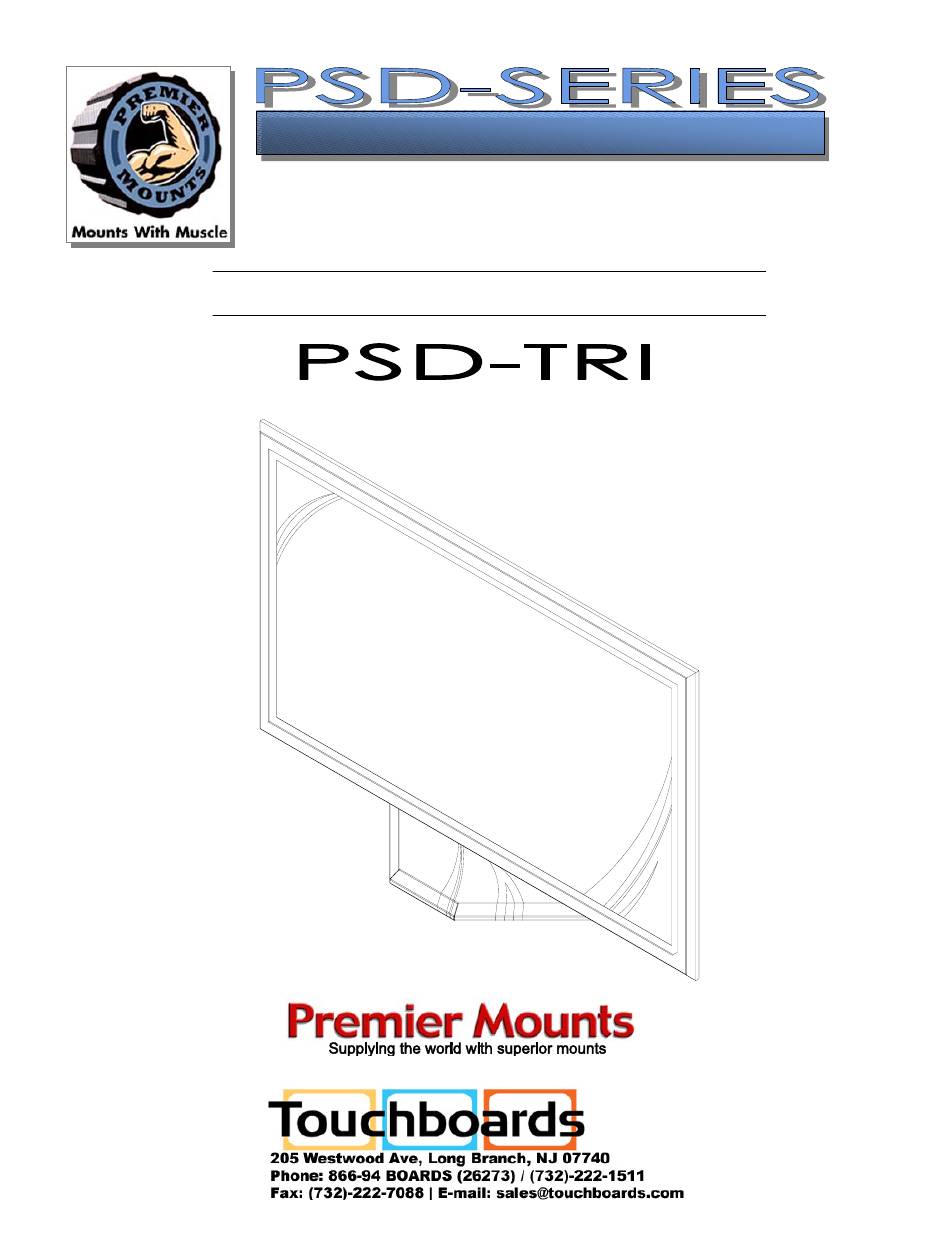

- Page 1 INSTALLATION MANUAL PLASMA DISPLAY MOUNT MODEL 3130 E. Miraloma Ave. Anaheim, CA 92806 Phone: 800 368-9700 Fax: 800 832-4888 VISIT US AT WWW.PREMIERMOUNTS.COM www.touchboards.com 205 Westwood Ave.Long Branch, NJ 07740 1-866-942-6273 Sales@touchboards.com...
- Page 2 The installation instructions should be read, understood and followed to prevent personal injury or property damage. Keep these installation instructions in an easily accessible location for future reference. Indicates that the power plug is to be disconnected from Contact Premier Mounts for any questions the power outlet. Safety precautions must be taken at all times.
- Page 3 Stand diagrams 16.500 16.500 PART#: PSD-TRI MATERIALS USED: 12 (GA) CRS, 14 (GA) CRS ¼" steel plate 21.807 COLOR: 12.992 19.543 18.250 Silver 17.343 A. Back plate .250 B. Stand support 1.287 1.04 C. Base 12.000 5.419 22.050 22.000 D. Security access screws E.
- Page 4 Parts List TOOLS & SUPPLY NEEDED HARDWARE Phillips screwdriver (10) M5 x 10 (mm) flat head screws (2) M5 x 12 (mm) phillip security screws (used on 42" and 50" plasma displays only) (3) M8 x 30 (mm) phillip screws (used optional) Building the stand Step 1 Unpack the components from the box and set them on the floor.
- Page 5 Securing the plasma to the stand Step 3 Raise the display with the sleeves installed to the plasma. Slip the sleeves through the four (4) keyholes on the back plate and drop it down slow, make sure all of the four (4) sleeves are in the keyhole slot before letting go of the plasma. On the 42" and 50" two (2) M5 x 12 Phillip screws (security screws) could be used for additional security.
- Page 6 TABLE M8 x 30 (MM) PHILLIP SCREWS Thank you for choosing PREMIER MOUNTS INC. for your installation needs. If you have any questions please contact PREMIER MOUNTS INC. Information is shown on the front of this page.
