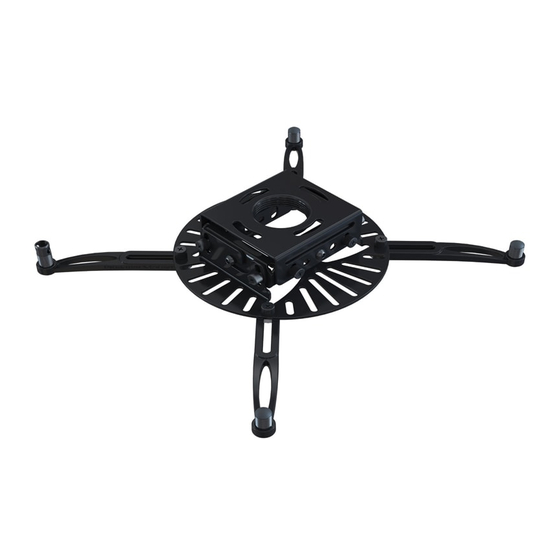

Versatile projector mount

Advertisement

Quick Links

NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada –
Phone: 800-368-9700
Fax: 800-832-4888
Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044
©Premier Mounts 2008
9530-009-011-05

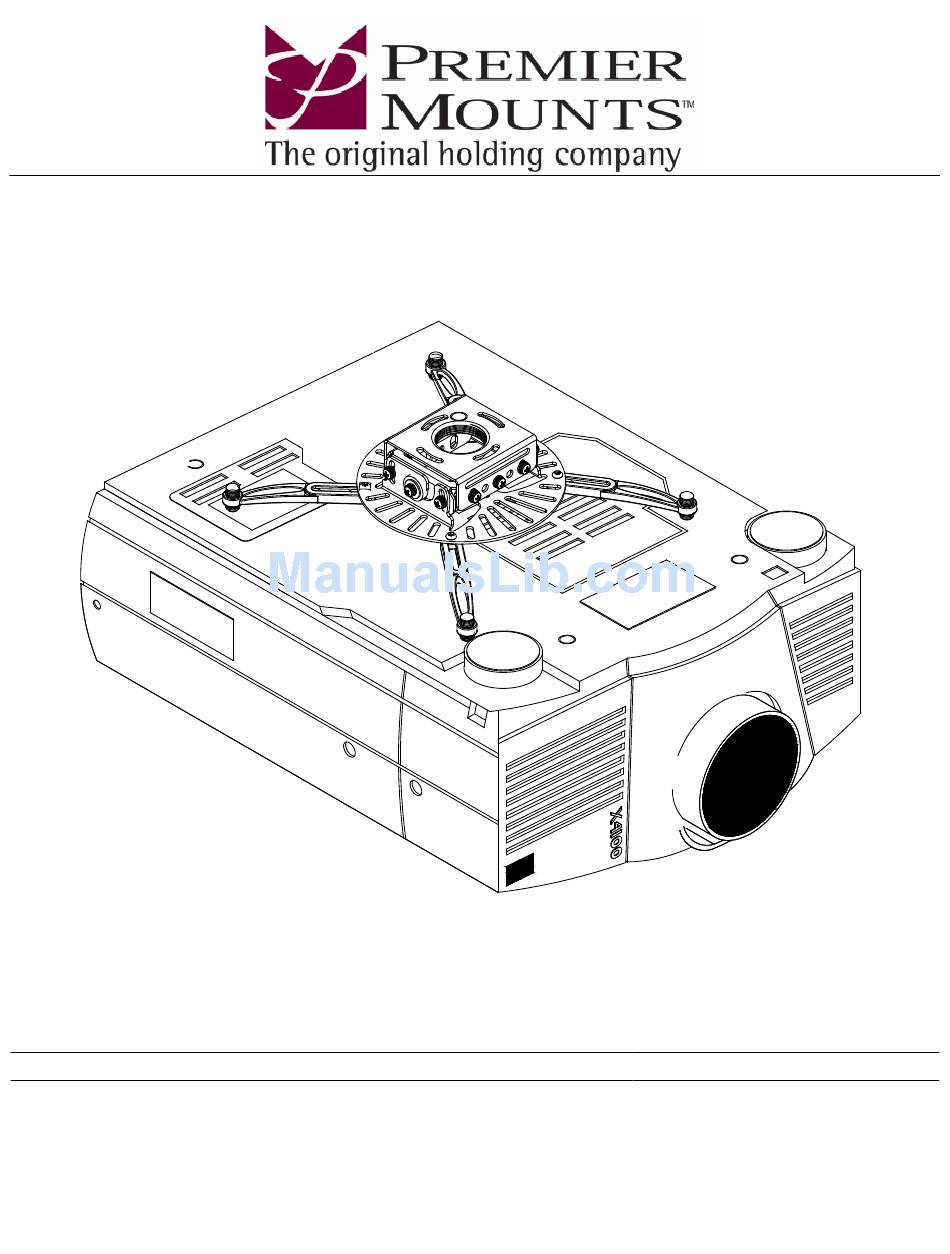

INSTALLATION MANUAL
PDS-PLUS
Versatile Projector Mount
Model: PDS-PLUS
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
AUSTRALIA, NEW ZEALAND, OCEANIA
(DISTRIBUTOR)
P.O. Box 295
Mordialloc Victoria 3195
Australia
Phone: 039586 6330
www.premiermounts.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Low-Profile Universal Projector Mount PDS-PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Premier Mounts Low-Profile Universal Projector Mount PDS-PLUS

  • Page 1 NORTH AMERICA 3130 East Miraloma Avenue Anaheim, CA 92806 USA USA and Canada – Phone: 800-368-9700 Fax: 800-832-4888 Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044 ©Premier Mounts 2008 9530-009-011-05 INSTALLATION MANUAL PDS-PLUS Versatile Projector Mount Model: PDS-PLUS EUROPE Swallow House,...
  • Page 2: Table Of Contents

    Warranty ...- 17 - Warning Statements PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.
  • Page 3: Parts List

    Parts List Please familiarize yourself with all components contained herein. Please review all WARNING and CAUTION statements (see Page 2) before beginning the installation of the PDS-PLUS Mount. PDS Base Box (Qty 1) Nylon Spacer (Qty 2) Flat Washer (Qty 2) M6 x 8mm Socket Head Set Screw (Qty 1)
  • Page 4 Parts List (cont.) PDS-PLUS Base (Qty 1) Mounting Legs – Long (Qty 4) M2.5 x 12mm Phillips Head Screw (Qty 4) M3 x 16mm Phillips Head Screw (Qty 4) M3 Flat Washer (Qty 10) M4 x 12mm Phillips Head Screw (Qty 4) M5 x 12mm Phillips Head Screw (Qty 4) M6 x 12mm Phillips...
  • Page 5: Installation Tools

    PDS-PLUS Installation Tools l l i l i c Phillips Head Screw Driver 1/8” Drill Bit (Wood Installation – Commercially Available) Masonry Bit (Concrete Installation – Commercially Available) Installation Manual / l a e i l M3 Security Allen Wrench (Supplied) Page - 5 -...
  • Page 6: Optional Mounting Configurations

    PDS-PLUS Optional Mounting Configurations This section will contain different configurations, if applicable, that the PDS-PLUS can be used with. The CLS adapter will be used in conjunction with the PP-FCTA and the PP-FCMA. Please refer the Installation Instructions that come packaged with the following products.
  • Page 7 Ceiling Installation – Pipe Unpack the PDS-PLUS Mount and familiarize yourself with the components. Please take time before you install the PDS-PLUS to determine the location of where the PDS-PLUS will be mounted. The PDS-PLUS may be attached to 1-1/2” standard threaded pipe (NPT), to one of Premier Mount’s optional ceiling adapters (see page 6), or to a single wood stud (see Page 8).
  • Page 8: Ceiling Installation - Solid Surface

    Ceiling Installation – Solid Surface Base Box Separate the Upper Bridge from the Base Box by removing the six (6) M6 x 12mm Phillips head screws (three on each side). Use the appropriate slot openings for single wood stud mounting, depending on your ceiling configuration. The adjustable channel slots on the upper bridge plate will allow you to fine tune the final orientation of the projector.
  • Page 9: Concrete Mounting

    M6 x 12mm Phillips Head Screw Base Box Attach the base box to the upper bridge and secure with the six (6) M6 x 12mm Phillips Head screws (above). DO NOT OVERTIGHTEN THESE SCREWS AT THIS TIME. Concrete Mounting The PDS-PLUS can be mounted to a ceiling with a minimum 6” thickness. Concrete wedge anchors must be used for concrete installation.
  • Page 10: Attaching The Pds-Plus To The Projector

    Attaching the PDS-PLUS to the Projector To truly show the versatility of the PDS-PLUS, the following pictures will show a variety of configurations that can be achieved with the PDS-PLUS. Your individual application will depend on the purchased projector. To truly show the versatility of the ELE-UPROJB, the following pictures will show a variety of configurations that can be achieved with the ELE-UPROJB.
  • Page 11 PDS-PLUS Only attach to the projector manufacturer’s specified mounting points on the projector chassis with a minimum of three mounting legs. Please follow all safety instructions specified by the projector manufacturer as well as the safety instructions outlined in this manual. Depending on your application, the long mounting legs and the short mounting legs may be used together.
  • Page 12: Single Mounting Point Installation

    PDS-PLUS Single Mounting Point Installation Mounting Point If your projector has only one mounting point, a ¼-20 x 5/16” screw must be used to attach the mount to the projector. Please refer to the following three steps: 1. Determine where the mounting point is located. Attaching the PDS-PLUS Base Hinge Pin Raise the projector (with the mounting bracket attached) and hook the projector bracket over the hinge pins.
  • Page 13 PDS-PLUS Slide the projector forward (see arrow above). Make sure the bracket is resting on the Base Box before letting go of the projector. Installation Manual Page - 13 -...
  • Page 14 PDS-PLUS 4. Place the nylon spacer over the hinge pin. Secure the PDS-PLUS to the PDS Base Box with two (2) M6 x 12mm Phillips Head screws w/Integrated Washers (one on each side). If using the optional Lock-It™ Security Hardware Pack, secure the PDS-PLUS to the PDS Base Box with two (2) M6 x 12mm Security Head screws and two (2) flat washers (one on each side).
  • Page 15: Base Box Adjustment

    M6 x 12mm Phillips Head Screw w/Integrated Washer Once the mount is safely attached, insert and tighten the four (4) M6 x 12mm Phillips Head Screw w/ Integrated Washers. Make all final adjustments at this time. Base Box Adjustment Roll 1.
  • Page 16: Technical Specifications

    PDS-PLUS Technical Specifications All measurements are inches (mm). - 16 - Installation Manual Page...
  • Page 17: Warranty

    What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
