INSTALLATION INSTRUCTIONS
NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada –
Phone: 800-368-9700
Fax: 800-832-4888
PSD-TL
60" / 72" / 84"
Floor Stand
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
EUROPE
Swallow House,
Advertisement
Chapters
Table of Contents
Related Manuals for Premier Mounts TL84-MS2
Summary of Contents for Premier Mounts TL84-MS2
- Page 1 Anaheim, CA 92806 USA Shilton Industrial Estate, USA and Canada – Shilton, Coventry, England CV79JY Phone: 800-368-9700 Phone: +44 (0) 2476 614700 Fax: 800-832-4888 Fax: +44 (0) 2476 614710 Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044 ©Premier Mounts 2009 9532-565-001-03...
-
Page 2: Table Of Contents
PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED... -
Page 3: Parts List
PSD-TL Parts List Congratulations on the purchase of your new Premier Mounts PSD-TL stand. This stand is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800) 368-9700. -
Page 4: Features

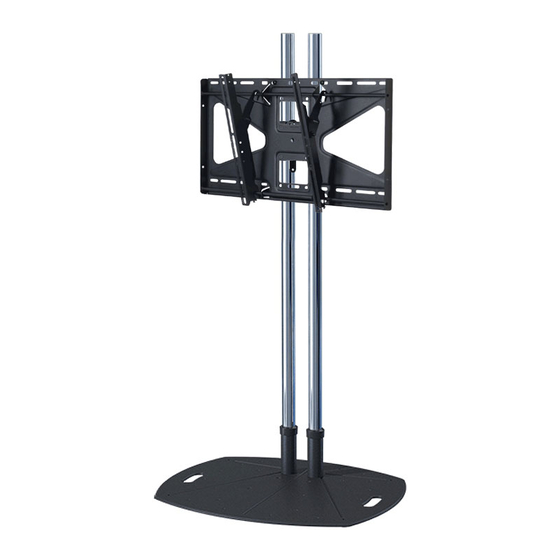

Features Congratulations on the purchase of your new Premier Mounts PSD-TL Floor Stand. When combined with a mount, our floor stand allows you to place a flat-panel in a horizontal or vertical position (with PSM and RTM-L/S mounts only). The flat-panel height is adjustable to any point along the stand’s vertical support poles to achieve the perfect viewing level. -
Page 5: Support Pole Installation
PSD-TL Remove the stand out of the box and check for all proper hardware, if missing any hardware please call Premier Mounts. A mount is required to complete the PSD-TL system. Refer to the mount’s installation instructions to install the mounting bracket. -
Page 6: Ctm And Psm Series Installation
PSD-TL CTM and PSM Series Installation This stand is intended for use only with the maximum weights indicated. Use with products heavier than the maximum weights indicated may result in instability causing possible injury. The flat-panel is very heavy; two people are required to lift the flat-panel and secure it to the stand. To install the mounting brackets to the flat-panel, refer to the CTM and PSM installation instructions. -
Page 7: Usa, Ufa And Rtm-L/S Installation
PSD-TL Installing the PSM Support Poles Directional Arrow Step 1. For the PSM-Series, secure the back plate to the four (4) PSD-SPA Adapter threaded mounting points found on the PSD-SPA with the four (4) M10 x 12 bolts and flat washers (supplied). PSM Back Plate M10 Flat Washers M10 x 12mm... -
Page 8: Optional Installations
PSD-TL Optional Installations M8 x 10mm Set Screws Allen Wrench Optional Suitable Hardware Shelf (Commercially Available) PSD-TL Base (not facing forward) PSD-TL Base (facing forward) Shelf Installation Floor Installation Do not install the optional shelf higher than Step 1. If securing the base to the floor, use 39”. -
Page 9: Technical Specifications
PSD-TL Technical Specifications All measurements are in inches(mm). Installation Instructions Page 9... -
Page 10: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs. - Page 11 CREATING POSITIVE CUSTOMER EXPERIENCES INSTALLATION INSTRUCTIONS NORTH AMERICA EUROPE 3130 East Miraloma Avenue Unit 3, The Moorings Business Park, Anaheim, CA 92806 USA Channel Way, Longford, USA and Canada Coventry, CV6 6RH, UK Phone: 1-800-368-9700 Phone: +44 (0) 24 7664 4105 Fax: 1-800-832-4888 Fax: +44 (0) 24 7664 4165 Other Locations...
- Page 12 PROPER SAFETY EQUIPMENT AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY. PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY...
-
Page 13: Installation Tools
Phillips Head Screwdriver Parts List Your Premier Mounts product is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts at 1-800-368-9700. -
Page 14: Mounting Hardware
M5 x 30mm Screw (Qty 6) M8 x 45mm Screw (Qty 6) M6 x 16mm Screw (Qty 6) M6 x 25mm Screw M8 x 70mm Screw (Qty 6) (Qty 4) Page 4 Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 15: Features
Mounting Rails Allow lateral adjustments when mounting the flat panel. Locking Safety Screws Prevent the flat panel from being removed or dislodged from the wall plate. Installation Instructions Page 5 Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 16: Installing The Wall Plate
Drill a “pilot hole” in the center of the upper right mark using a ¼″ drill bit and power drill. Only use a ¼˝ drill bit when drilling pilot holes. Page 6 Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com... - Page 17 Do not overtighten the lag bolts when attaching the mount to the wall. Improper installation may result in personal injury or property damage. Proceed to the “Installing the Mounting Bracket” on page 8. Installation Instructions Page 7 Visit the Premier Mounts website at http://www.premiermounts.com...
-
Page 18: Installing The Mounting Brackets
Proceed to the “Griplate™ Installation” section. Small Straw Depth Plus 1/8” Allowance Small Straw Depth Plus 1/8” Allowance or Toothpick or Toothpick Mark Mark Page 8 Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com... - Page 19 CTM-MS2 Installing the Mounting Brackets (cont’d) Griplate™ Installation Premier Mounts’ Universal Washers are designed to accommodate the various M4, M5, M6 and M8 hole M5, M6 sizes required by flat panels. Do not place excessive pressure on the back of the flat panel, as this may damage the flat panel.
-
Page 20: Attaching The Mounting Brackets To The Flat Panel
➋ Slide the flat panel down slowly, keeping it close to the wall. ➌ Engage the top and bottom mounting brackets to the rails of the wall plate. Page 10 Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 21: Safety Knurl Knob Installation
Panelock™ to the flat panel bracket. M6 x 12mm Security Head Repeat to attach the remaining Screw Panelock™. Proceed to “Tilt Adjustment” on page 12. Security Head Wrench Panelock™ Hook Security Head Wrench Installation Instructions Page 11 Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 22: Locking Safety Screw Installation
Using the upper hand, gently push the top of the flat panel towards the wall while the lower hand gently pulls the bottom of the flat panel away from the wall. Page 12 Installation Instructions Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 23: Technical Specifications
CTM-MS2 Technical Specifications All measurements are in inches [millimeters]. Installation Instructions Page 13 Visit the Premier Mounts website at http://www.premiermounts.com... -
Page 24: Warranty
What Premier Mounts Will Do At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
