4. Mounting

• Use a screwdriver to remove the 3 screws of the top faceplate and the 3 screws of the
access panel.
• Open both faceplates.
• Install mounting screw on wall and hang the unit in place by sliding the rear mounting hole of
the IC-664 over the screw (see figure 1).
• Install two more screws to secure the IC-664 in place using the bottom mounting holes.

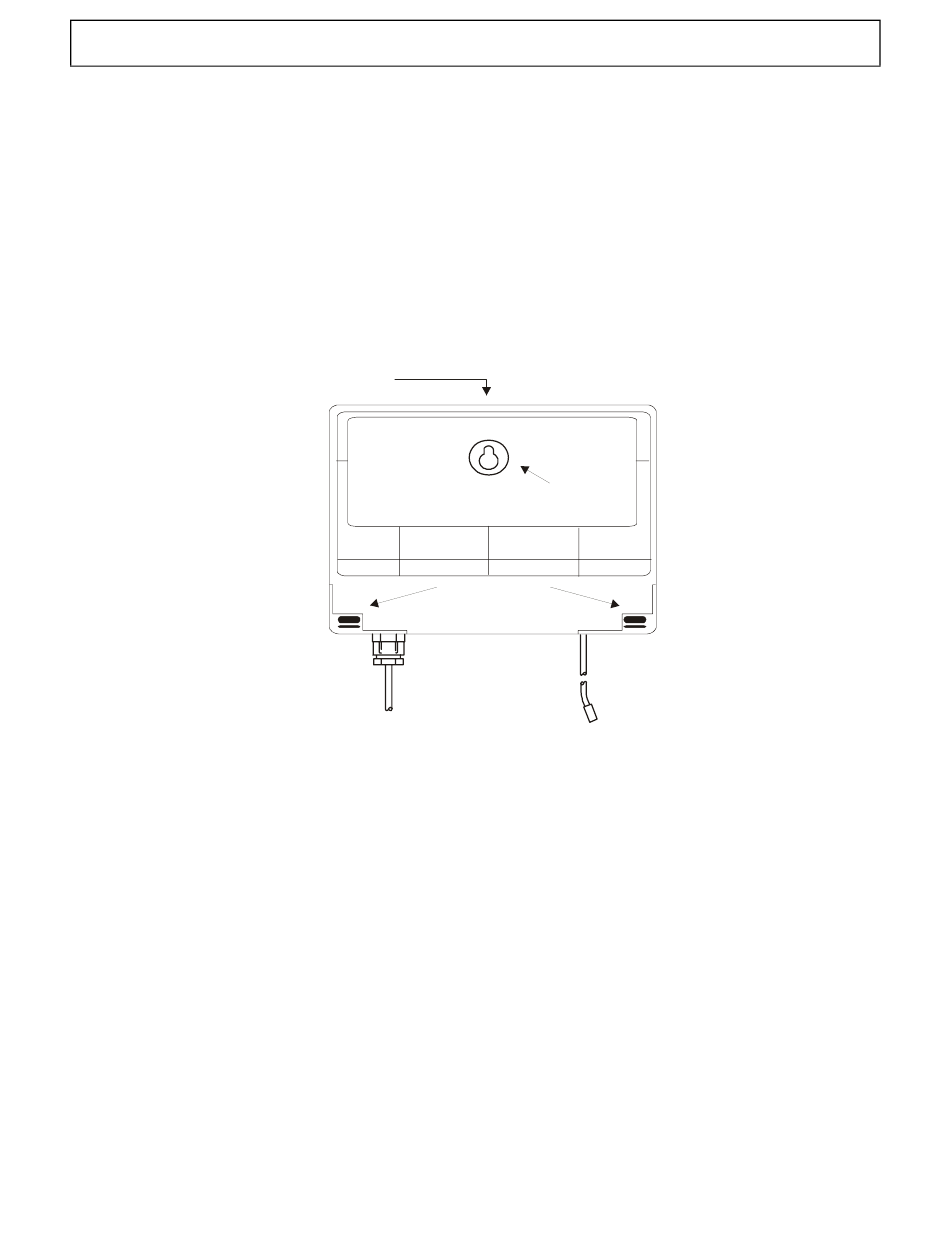

FIGURE NO. 1 Mounting Position and Devices

IC-664 INSTALLATION GUIDE
REAR VIEW
This side up
MOUNTING HOLES
Screw Sizes:
Top mounting hole :
Bottom mounting holes:
www.monitrol.com
TOP MOUNTING
HOLE
BOTTOM
#8 X 1"
#6 X 1"
