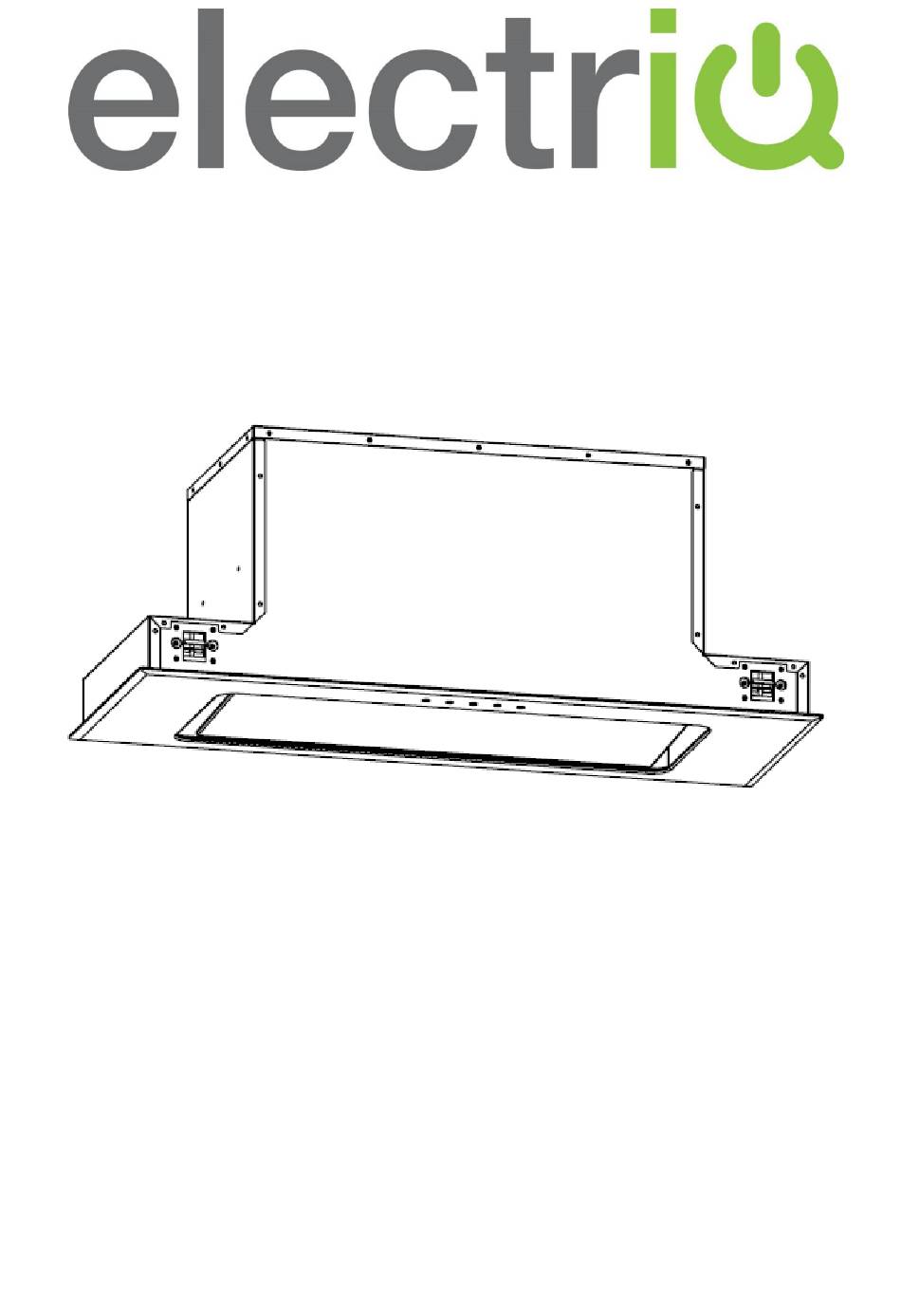

- Page 1 USER MANUAL COOKER HOOD EIQ90CANGW EIQ90CANGBL Thank you for choosing electriQ Please read this user manual before using this product and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire product range...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTALLATION OPERATION TROUBLESHOOTING CLEANING AND MAINTENANCE FILTER INFORMATION BULB REPLACEMENT TECHNICAL SPECIFICATIONS SUPPORT PRODUCT FICHE... -
Page 3: Safety
SAFETY PRECAUTIONS Whilst this product is compliant with all safety requirements, incorrect or inappropriate use can lead to both personal injury and potential damage to property. Please read the contents of this instruction booklet thoroughly before fitting or using this appliance. •... - Page 4 • The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. • When the hood is vented externally and used with appliances which burn fuel (e.g. gas, oil, wood) the area must be sufficiently ventilated to ensure safe operation.
-
Page 5: Installation
INSTALLATION (VENT OUTSIDE) 1. The cooker hood should be placed at a distance of 65- 75cm from the cooking surface. 2. Drill a hole in the cabinet, with a width 880*275(mm) for model 90CM. Make sure the gap between the hole and the cupboard edge is at least 35mm. -
Page 6: Operation
START USING YOUR COOKER HOOD 1. Press the “Power” button, to turn the cooker hood on and off. 2. Press the “Speed” button to cycle between fan speeds, the LED display will indicate the fan speed with the numbers 1, 2 and 3. 3. -
Page 7: Troubleshooting
TROUBLESHOOTING Fault Cause Solution The fan blade is Light on, but Switch off the unit. Repair to be carried out jammed. fan does not by qualified service personnel only. work The motor is damaged. Both light Halogen light bulb blown Replace the bulb with correct rating. -
Page 8: Filter Information
GREASE MESH FILTERS The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light) Filters should be washed separately to crockery and kitchen utensils. -
Page 9: Bulb Replacement
ILCOS D code for this lamp is: DSS-25/65-S-650/160 – Max wattage: 25 W – Voltage range: DV12V – Dimensions:650×160 mm TECHNICAL SPECIFICATIONS MODEL EIQ90CANGW EIQ90CANGBL MOTOR POWER 1*190W WIDTH 900mm MOTOR AIR FLOW 630m3/h... -
Page 10: Support
The appliance must not be dismantled by an unqualified person. At the end of its life, the appliance should not be disposed of with general household waste. Check with your Local Authority or retainer for recycling advice. electriQ UK SUPPORT www.electriQ.co.uk/support Call: 0330 390 3061 Office hours: 9AM - 5PM Monday to Friday... -
Page 11: Product Fiche
PRODUCT FICHE Symbol Value Unit eiQ90CANGW Model identification eiQ90CANGBL Annual Energy 75.3 kWh/a Consumption hood Time increase factor Fluid Dynamic Efficiency 23.5 hood Fluid Dynamic Efficiency Class B class Energy Efficiency Index 74.8 hood Energy Efficiency class Class C Maximum airflow 564.5...
